| Prod Model: |
AYAA-13S |
| Charging Voltage: |
DC:54.6V Cc/CV |
| Balance Voltage For Single Cell: |
4.20±0.05V |
| Balance Current For Single Cell: |
68±10mA |
| Maximal Continuous Charging Current: |
5A |
| Maximal Continuous Discharging Current: |
20A |
| Composition: |
48.1V(13s)Li-ion Battery Pack |
| Size.: |
L120*W60*T8.5mm |
| Color: |
Green |
Product Description
PCM for 13S Li-ion/ LiFePO4/ lipo battery pack
Features:
· Apply for 13S cells Li-ion /Li-polymer battery pack protection.
· Internally Trimmed Charge and Discharge Voltage Limits.
· Discharge Current Limit Detection.
· Low Current Standby Mode When Cells are Disccharged.
· High Quality and High Yield: 100% Tested before Shipment.
Dimension: L120*W60*T8.5mm
Packaging & Delivery:
Packaging: Antesatic bag and carton packanging
Delivery: With in 15days after confirm order
Shipping and Trade terms:
1. For samples, DHL/TNT/UPS/FedEx/EMS...
2. For mass production, Air/Sea transportation
Trade terms:
1. Payment terms: L/C, T/T, Western Union and so on
2. MOQ: 1pcs
|
AYAA TECHNOLOGY |
|

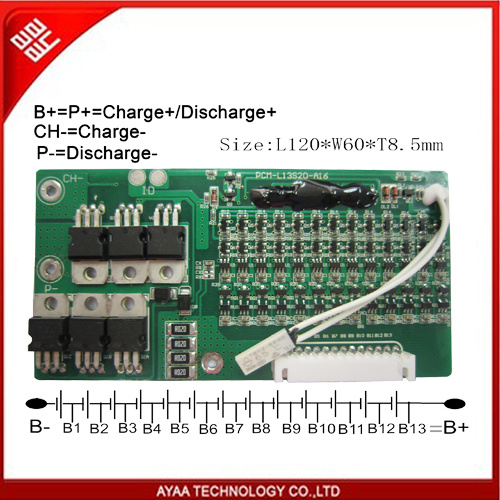

Protection Circuit Module Specifications For 48.1V(13S)Li-ion Battery Pack |
|
Model: PCM-L13S20-A16(13S) |
|
NO. |
Test Item |
Criterion |
|
1 |
Voltage |
Charging voltage |
DC:54.6V CC/CV |
|
Balance voltage for single cell |
4.20±0.05V |
|
2 |
Current |
Balance current for single cell |
68±10mA |
|
Current consumption for single cell |
≤30μA |
|
Maximal continuous charging current |
5A |
|
Maximal continuous Discharging current |
20A |
|
3 |
Over charge Protection (single cell) |
Over charge detection voltage |
4.25±0.05V |
|
Over charge detection delay time |
0.5S_2S |
|
Over charge release voltage |
4.05±0.1V |
|
4 |
Over discharge protection (single cell) |
Over discharge detection voltage |
2.50±0.1V |
|
Over discharge detection delay time |
15S±5S |
|
Over discharge release voltage |
2.50±0.1V |
|
5 |
Over current protection |
Over current detection current |
90±10A |
|
Detection delay time |
5ms-60ms |
|
Release condition |
Automatic Recovery |
|
6 |
Short protection |
Detection condition |
Exterior short circuit |
|
Detection delay time |
200-800us |
|
Release condition |
Automatic Recovery |
|
7 |
Resistance |
Protection circuitry |
≤20mΩ |
|
8 |
Temperature |
Operating Temperature Range |
-40~+85 centigrade |
|
Storage Temperature Range |
-40~+125 centigrade |
|
|
