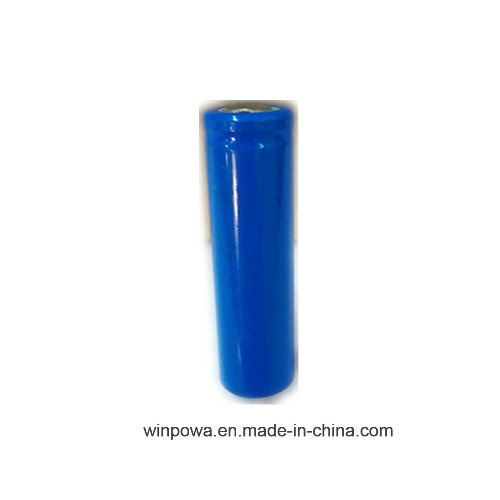

Li Ion Cell for UPS Battery

Li Ion Cell for UPS Battery
Price: US $ 0.2-2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 18650
Capacity: 2600mAh
Type: Lithium-Ion Batteries
Usage: Boat
Discharge Rate: High Discharge Rate
Shape: Cylindrical Battery
Rechargeable: Chargeable
Nominal Voltage: 3.7V
Electrolyte: Li Ion

Product Description

li ion cell for UPS battery



Typical Capacity2630mAh
Minimum capacity2600mAh
Nominal voltage3.7V
Standard ChargeCC/CV,0.2C5A, 4.20V
Standard DischargeCC,0.2C5A, 3.00V
End-of-charge Voltage4.20V±0.05V
End-of-charge Current0.01C5A
End-of-discharge Voltage3.00 V
Charging Time8.0hours
Quick Charge Current2600mA
Quick Disharge Current2600mA
Max Disharge Current7800mA
Initial ImpedanceMax:65mΩ
Weight42±1g
Operating temperature-20ºC~60ºC
Storage temperature-5ºC~35ºC
Storage Humidity≤75% RH





WINPOW specializes in battery R&D and production. We provide a wide variety of battery products, including alkaline button cells, 23A/27A batteries, lithium manganese button cells (CR2032), LR6/LR03 alkaline cylinder batteries, R6/R03/6F22 Carbon zinc batteries, lithium primary cylinder batteries (CR123A, ER14250), zinc air batteries and rechargeable batteries (Ni-MH, lithium ion and lead acid).

Huizhou WINPOW Electronic Co., Ltd, the first plant of WINPOW, was established in April 2007. Through over a decade of efforts, we have built three plants, one in Huizhou for producing alkaline button cells and 23A/27 batteries, one in Shenzhen for providing battery diaphragm, and one in Shaoyang for supplying lithium batteries.

As a battery specialist, WINPOW has independent IP rights and R&D capabilities in batteries and are already at the forefront of the industry for many years. We are home to a host of industry professionals who have their papers published in authoritative magazines of China's battery industry, such as Battery and Battery Industry. Our products are widely embraced for extraordinary cost performance and superb leakage resistance. WINPOW's 23A, 27A, and lithium manganese button cells are best-selling products in Chinese battery market, which makes WINPOW an authorized manufacturer of many reputable brands.

Driven by the goal of going global, we established WINPOW (HK) Co., Ltd and WINPOW Industry Co., Ltd. As yet, WINPOW has extended its footprint throughout more than 40 countries and regions including Europe, North America, South America, and Middle East, and its exports are still increasing at an annual rate of 20%. Today, WINPOW's diversified products and premium services are accessible to customers from all around the world.

WINPOW will always keep to its business philosophy of being "customer-centric, honest in cooperation, innovative, and in pursuit of excellence. We will stay focused on battery R&D and production and push WINPOW forward to be a world-leading battery manufacturer.
