| Prod Model: |
AYAA-500W Li-ion/Fe power charger |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Color Balck |
| Charger Type: |
Electric Charger |
| Size: |
AAA |
| Type: |
Battery Charger |
| Nominal Voltage: |
29.4-84 |
Product Description
Li-ion/polymer Battery charger family

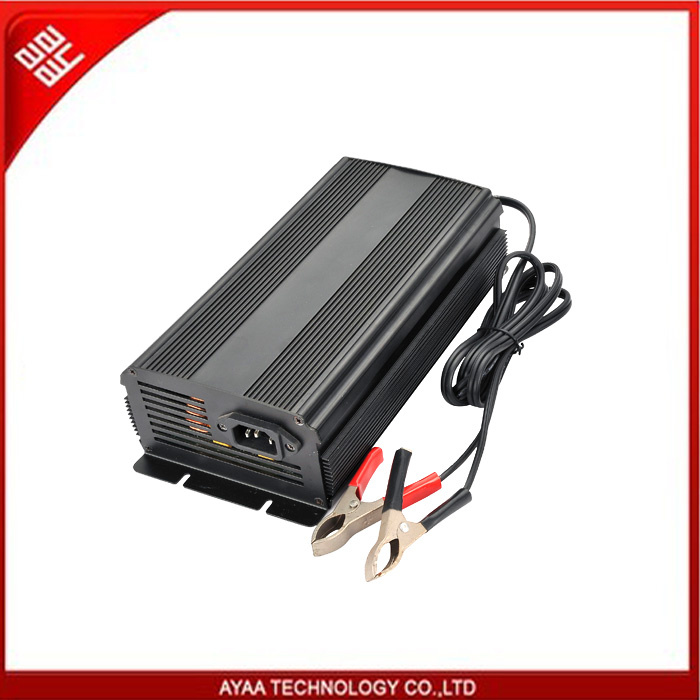

AYAA-500W Li-ion/Fe power charger
Feature:
Input:100-240VAC 50/60Hz
Size:223*126*70mm
Charger indicator:RED:charge/Green:Finised
Output protetion :over current and over voltage and Short-circuit protectin.
Application:Power Tool.Electrical Bike ,Electrical Toy,Mobile Lamp.Security system and so on .
Safety Approve:CE UL ROHS .CB
1. Rating input voltage:120 ~ 240Vac 50/60Hz
2. Max. output power:500W
3. Efficiency:>87%
4. Size:223*126*71mm
5. Charger Model:CC Then CV
6. Charger indicator:Red: charging Green: finish/idle
7. Output protect:over current, over voltage, Short-circuit protection` and Reverse polarity protection
8. ApplicationPower Tool,Electrical Bike, Electrical Toy,Mobile Lamp, Security system and so on
9. Safety Approve:CE,UL,CCC
10.Output characteristic:
| No. | Item | Unit | Charger Model |
| L500-24 | L500-36 | L500-48 | L500-60 | L500-72 |
| 1 | Rating output voltage | Vdc | 29.4 (idle output voltage <4.0V) | 42 (idle output voltage <4.0V) | 56 (idle output voltage <5.0V) | 72 (idle output voltage <5.0V) | 84 (idle output voltage <5.0V) |
| 2 | Output voltage range | Vdc | 21-29.8 | 30-42.5 | 42-58.8 | 54-75.6 | 60-84 |
| 3 | Constant Charge current | A | 14 | 11 | 8 | 6.5 | 5.5 |
| 4 | Suit with Battery type | Ah | 25.2V 20-100Ah | 36V 15-100Ah | 48V 15-60Ah | 60V 10-50Ah | 72V 10-50Ah |
| 5 | Charge finish condition | - | 1\U>29.4V & I<0.3A 2\T/dt>=1degree/min(TYP) 3\cut-off without charging current | 1\U>42V & I<0.3A 2\T/dt>=1degree/min(TYP) 3\cut-off without charging current | 1\U>56V & I<0.3A 2\T/dt>=1degree/min(TYP) 3\cut-off without charging current | 1\U>72V & I<0.3A 2\T/dt>=1degree/min(TYP) 3\cut-off without charging current | 1\U>80V & I<0.3A 2\T/dt>=1degree/min(TYP) 3\cut-off without charging current |
| 6 | Max. output power | W | 500 | 500 | 500 | 500 | 500 |
| 7 | Output short-circuit protection | - | Yes | Yes | Yes | Yes | Yes |
| 8 | Rating output voltage | - | Yes | Yes | Yes | Yes | Yes |
AYAA TECHNOLOGY Co., Ltd has 11 years experience in the design, engineering and service of all kinds of safety board PCM/BMS for Li-ion (Lithium ion) and Li- Po (Lithium Polymer) batteries, battery pack, also different types of chargers.
We are dedicated to utilize extensive knowledge and expertise of cells and battery pack build in order to provide the most innovative, effective and economical battery solutions. As a leader of safety board, worldwidely providing battery packs for different devices which are used in the industry and households - power tools, medical equipment, emergency and evacuation lighting, energy storage station, navigation systems for cars, , GPS devices, golf buggy, e-bikes and etc.
We offers free technical advise on battery selection and pack design and has extensive technical backup. AYAA has its own sample verification centre with state of the art welding and manufacturing equipment. We has no minimum quantities on battery pack builds, and has a pricing structure to recognize production runs., As a conformity company by ISO9001, We take quality as business soul, all products will be 100% strictly checked by our QC person, , Care is taken during every process from material checking, assembling, test and package, customer satisfactory always powerful for our continuously improvements.
