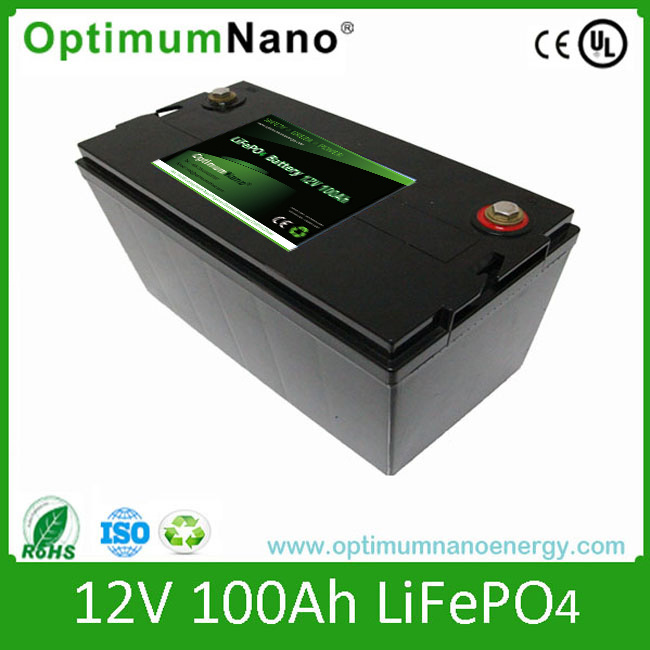

LiFePO4 12V 100ah Lithium Battery for Storage System

Name: LiFePO4 12V 100ah Lithium Battery for Storage System
Brand: all-electronics-online.com
SKU: 811965385
Availability: InStock
Rating: 4.3 (109 reviews)

Price:	US $ 335-556/Piece
Min Order:	12/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT12100
Type:	Lithium-Ion Batteries
Usage:	UPS
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Specification

Basic Specification of 12V 100Ah Battery PACK
Nominal Capacity @ 0.2C	100 Ah	Cell Configuration	20P4S
Nominal Voltage	12.8 V	Total Cell Quality	80pcs
Discharge Cut-off Voltage	10 V	Impedance (Max. at 1000Hz.)
Charge Cut-off Voltage	14.6 V	Dimensions(mm)	335175215mm
Charge Current	20 A	Weight (including case)	15 kg
Standard Continuous Discharge Current	20A	Charge Temperature Range	0°C~45°C
Peak Discharge (max. 10 sec. duration)	300A	Discharge Temperature Range	-20°C~60°C
Cycle Life (1C/1C 100% DOD)	2000 cycles	Charge Method	CC/CV

Product Feature

♣ Safety

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,

over-discharge: no fire, no explosion with stable chemical structure.

Short-circuit and squeeze Test Droping and shock Test Acupuncture Test

(30T truck, positive & negative short circuit) (50m hight, 120Km/h) (8 acupuncture, pierced 3 layers)

♣ High Energy Density

♣ Cost Performance

♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.

♦ Smaller Space: 1/3 of the lead acid battery.

♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.

♦ Safety Cost: stable discharge platform to avoid euipmet exception.

♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.

♣ Low Self-discharge - Less than 3% per month

3C	LiFePO4	Lead Acid	Ni-Cd	Ni-Mh
Self-discharge/month	3%	10%	13%~15%	25~35%

♣ Wide Range Temperature Adaptability

♣ Long Life Cycles - 1C more than 2000

♣ Environment Friendly - Clean and Green energy poses no pollution on our environment

Company Overview

OPTIMUMNANO has more than 2000 employees, including of 300 R & D persons, covering a production area of 80.000 m2 and has brought in over 1000 sets of advanced production equipments.

We are the BV and SGS approved LiFePO4 battery manufacturer and We has strictly performed ISO9001:2008 quality management system and attained TS16949 certificates since 2009 as well as other products certificates of CE,UL,UN38.3,ROHS,SGS-IEC62133 etc.

Our staff of sales and technical support is available to help you in selecting the right products for your application as well as to provide you with samples of our products for evaluation. At OptimumNano, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
