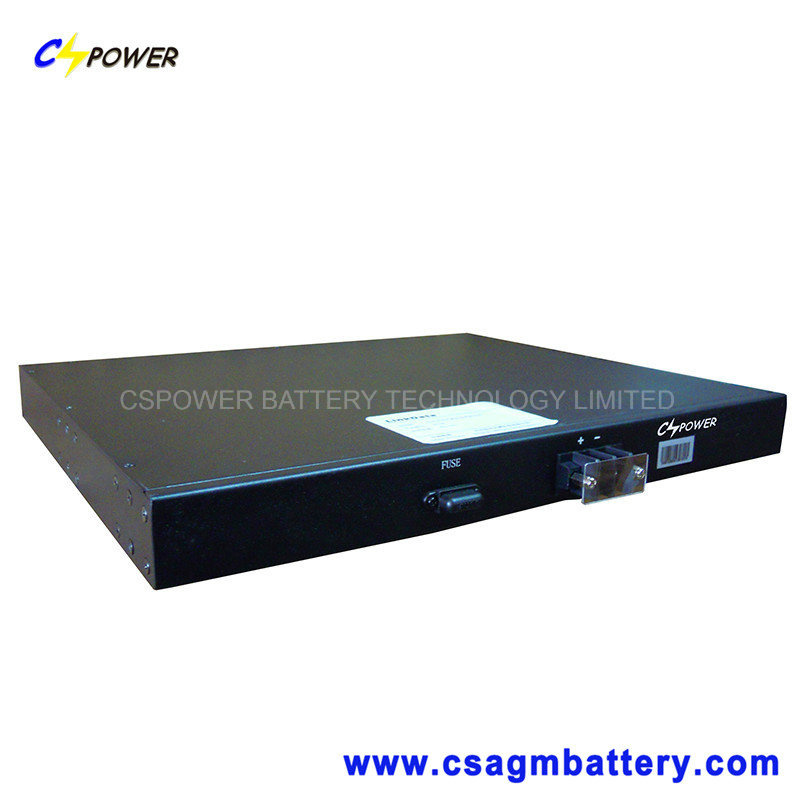

LiFePO4 48V 20ah Li-ion Battery for Backup Power

Prod Model:	BT-B4820X-6-I
Battery Model:	48V20ah LiFePO4 Batteries
Dimensions:	442*385*44(mm)
Cycle Usage:	100% Dod Over 2000 Cycles
Warranty:	3 Years
With BMS:	Yes
Battery Color:	Black, Grey White
Float Design Life:	Over 20 Years@25 Degree
Certification:	Ce, UL, ISO, Un38.5/Un38.0
Delivery Time:	15-25 Days
Discharge Temperature:	-20 / + 70 (Can Be Set)
Type:	Lithium-Ion Batteries
Usage:	Solar / UPS/Telcom/Medical Equipment
Discharge Rate:	High Discharge Rate
Rechargeable:	Chargeable
Electrolyte:	LiFePO4 Battery
Shape:	19inch Lithium Iron Phoshate Battery
Nominal Voltage:	3.2V

Product Description

lifepo4 48v 20ah li-ion battery for backup power, outdoor power supply

Characteristics
Lithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field.
Voltage: 12V, 24V, 48V
Capaicty: upto 12V200Ah, 24V100Ah, 48V100Ah.
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
                       80%DOD, >3000 cycles



BMS of LiFePO4 Battery
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection

Application
Electric Vehicles,electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting and so on

Sepcificaion of LifePO4 battery (19 inch)

MODEL	Voltage	Capacity	Dimension (mm)			Weight (kg)
	(V)	(Ah)	Length	Width	Height	(±3%)
LifePO4 battery with BMS
BT-B1240F-6-I	12	40	442	385	44	10
BT-B1250F-6-I	12	50	442	385	44	12
BT-B1280F-6-I	12	80	442	385	88	17.5
BT-B12100F-6-I	12	100	442	385	88	20
BT-B12200F-6-I	12	200	442	385	132	38
BT-B2410E-6-I	24	10	442	310	44	8
BT-B2420E-6-I	24	20	442	310	44	13
BT-B2460E-6-I	24	60	442	385	88	22
BT-B24100E-6-I	24	100	442	385	132	38
BT-B4810X-6-I	48	10	442	385	44	8
BT-B4820X-6-I	48	20	442	385	44	12
BT-B4830X-6-I	48	30	442	385	88	18
BT-B4840X-6-I	48	40	442	385	88	25
BT-B4850X-6-I	48	50	442	385	132	35
BT-B48100X-6-I	48	100	442	400	222	63
BT-P series Lithium LifePO4 battery with communication interface and BMS
BT-P1260F-6-I	12	60	442	250	88	12
BT-P12100F-6-I	12	100	442	385	88	19
BT-P12200F-6-I	12	200	442	385	132	38
BT-P2420E-6-I	24	20	442	310	88	13
BT-P2460E-6-I	24	60	442	385	88	22
BT-P24100E-6-I	24	100	442	385	132	38
BT-P4810X-6-I	48	10	442	385	44	9
BT-P4820X-6-I	48	20	442	385	44	14
BT-P4830X-6-I	48	30	442	385	88	20
BT-P4840X-6-I	48	40	442	385	88	28
BT-P4850X-6-I	48	50	442	385	132	35
BT-P4875X-6-I	48	75	442	385	176	45
BT-P48100X-6-I	48	100	442	400	222	63

Features for CSPOWER Lithium battery
Due to the demand for energy saving strategies, CSPOWER delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.


Advantages for CSPOWER LiFePO4 Battery
 Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
 Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
 Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under  extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
Optional LCD digital display. Optional LCD digital display can install in the front panel of battery and show battery voltage, capacity, current information, etc.


Certification :CE, UN38 ,UN38.5 test reports


Why Choose CSPOWER?
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you  to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
