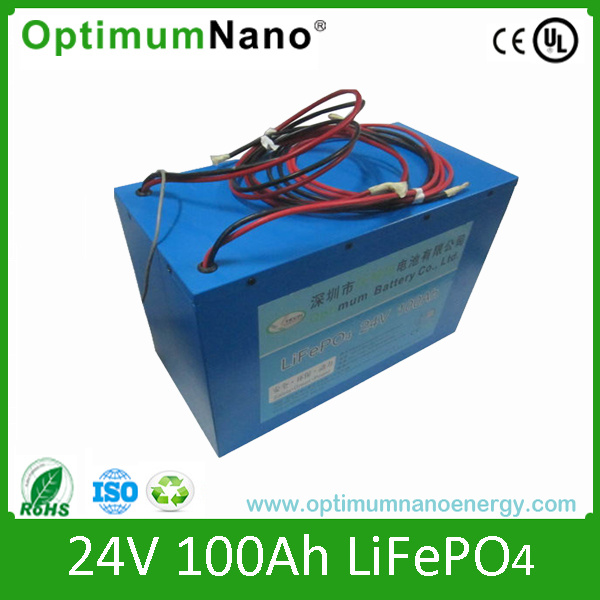

Name: LiFePO4 Battery 24V 100ah for Solar Storage with PCM
Brand: all-electronics-online.com
SKU: 737212415
Availability: InStock
Rating: 4.7 (106 reviews)

Price:	US $ 460/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-24-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Composed Type:	8s and 20p
Application:	UPS/Backup/Home Sationary Application/Military PRO
Size:	Flexible
Sealed Type:	Sealed
Maintenance Type:	Free
Max. Charge Voltage:	29.2V
Cut Off Voltage:	20V
Operate Temperature:	-20c ~60c
Type:	Lithium-Ion Batteries
Usage:	Boat
Nominal Voltage:	48V
Discharge Rate:	Low Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4

Product Description

Green 24V 100Ah house emergency storage battery /emergecy

1. Extremely safe and stable chemistry:

Rigid Aluminum alloy housing protection, and BMS built inside to balance protect the battery.

2. Long life-cycle:

5-7years/2000 times cyclelife

3. Lighter and smaller:

1/2 weight of SLA batteries. 70% size/weight of NiMH/NiCd batteries

4. Wide operating temperature:

High temperature resistance(-20-60 degrees celsius)

5. Steady performance:

High power output, 1C continuous, 3C pulse for normal cells and 20 C for special design.

Low self-discharge rate, less than3%monthly

6. No memory effects and highly efficient charge:

It can be recharged anytime, no reduction of the capacity

7. Green product:

Environment friendly: Accredited with RoHS, without any hazardous and noxious substances

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg
