LiFePO4 Battery 36V 20ah for Skate Board

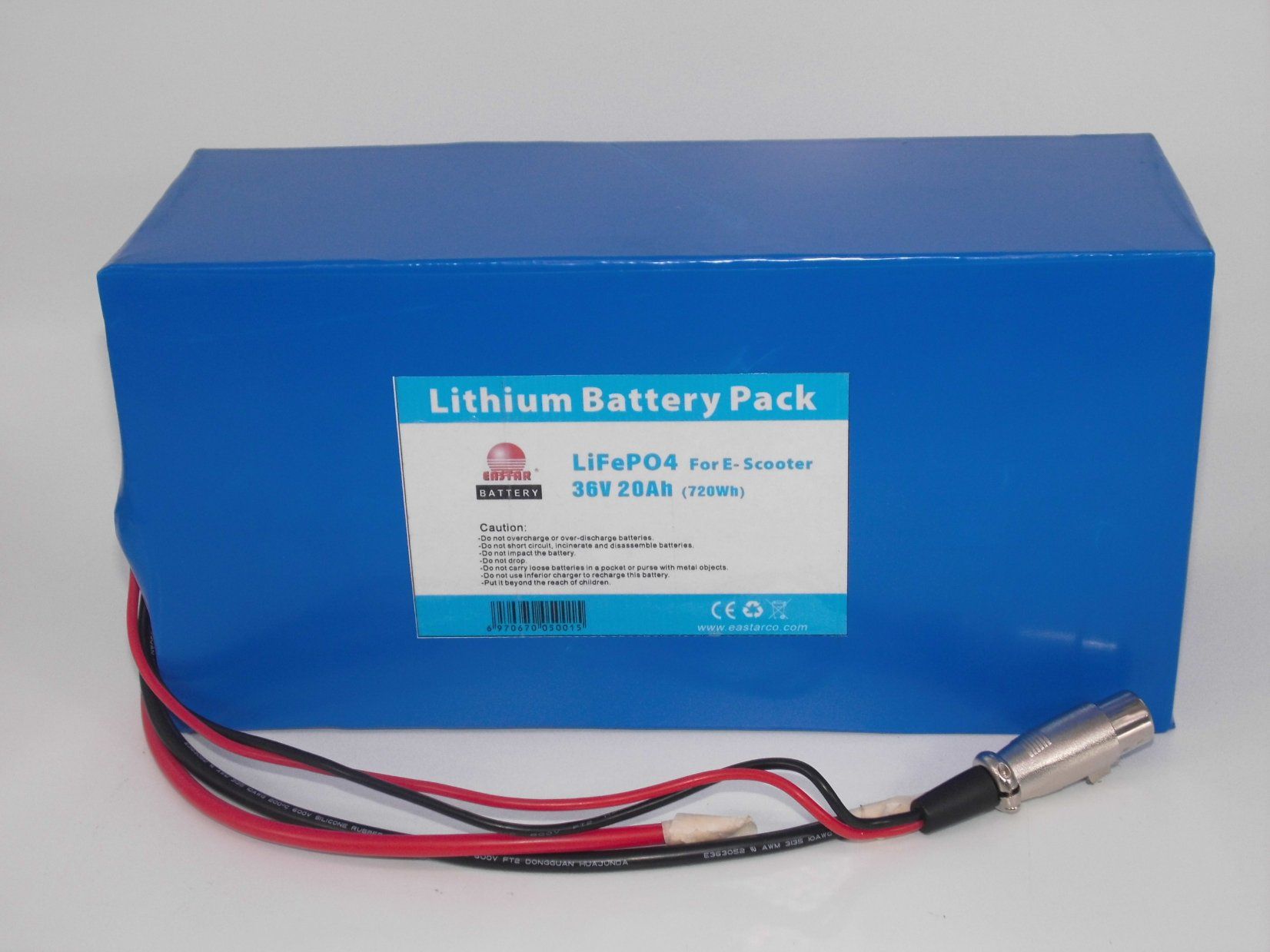

Name: LiFePO4 Battery 36V 20ah for Skate Board
Brand: all-electronics-online.com
SKU: 696302545
Availability: InStock
Rating: 4.6 (145 reviews)

Price:	US $ 100-200/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	36v 20ah
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Volts:	36V
Capacity:	20ah
OEM:	Welcome
Warranty:	2 Years
Cells:	26650 3300mAh
BMS:	Builtin
Color:	Green/Blue/Grey
Application:	Skateboard/Scooter
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	20ah
Standard Voltage:	36V
Usage:	Skate Board, Vehicle

Product Description

36V 20Ah skateboard lifepo4 battery pack

1. High discharge rate.
2. Light weight, smaller size.
3. High power.
4. High-temperature working capability.
5. Steady discharge and charge performance.
6. Low self discharge, Longer life, High safety. No memory effect.
7. Green products, non explosive, environmental friendly.

Packing	36V 20Ah LiFePO4 rechargeable battery Module is made of 72pcs LiFePo4 3300mAh cylindrical 26650 cell in 12S6P configuration. Protected by 1pc PCM located on the top.
Voltage	Voltage: 36 V (working) 38.4 V (peak)
Capacity	20Ah (768 Wh)
Cycle life	> 2000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection	One PCM installed with the battery pack and protects the battery from Overcharge Over discharge Over drain Short circuits Must wait min of 30 minutes after battery is fully charged to allow the PCM to perform balance function on all the cells within the pack.
Charge Mode	CC, CV
Discharge rate	15A Max
Max. Discharging Rate	70A limited by PCM
Dimensions (LxWxH)	300mm x 175mm x 105mm
Weight	6500g
Smart Tips	You may choose our Smart Charger (4.0 A) for 36V LiFePO4 Battery Packs . The estimated charging time is 4-6 hours
Applications	Replace 36V NiMH or Lead acid battery pack with lighter weight and longer cycle life Considering 2000 cycle life, LFP battery is much cheaper than NiMH and Lead acid battery
