| Prod Model: |
UBT-26650-12.8V-100Ah |
| Certificate: |
Ce, UL, RoHS, C-Tick, IEC, Un38.3 |
| Long Cycle Life: |
>3000 Times at 1c Rate, 100% Dod |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
12.8V |
| Usage: |
Car, UPS, Lighting, Solar System |
| Electrolyte: |
Lithium-Ion Batteries |
Product Description

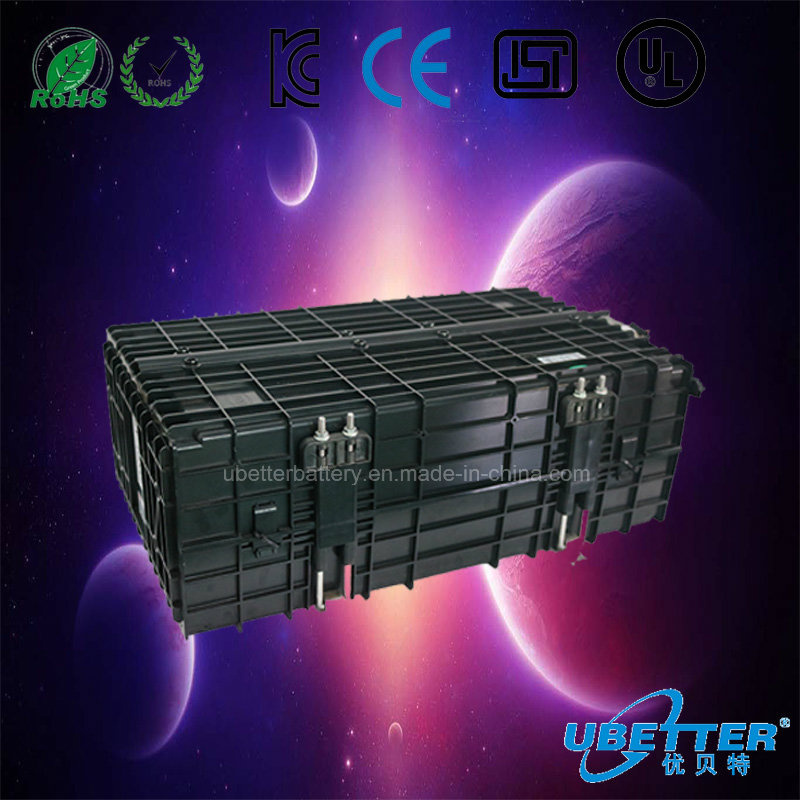

LiFePO4 12V 100ah Lithium Battery for Solar SystemDatasheet:| 12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah |
| Item No. | OPT-12-005 | OPT-12-010 | OPT-12-020 | OPT-12-030 | OPT-12-040 | OPT-12-050 | OPT-12-060 |
| Standard Capacity | 5Ah | 10Ah | 20Ah | 30Ah | 40Ah | 50Ah | 60Ah |
| Rated Voltage | 12.8V |
| Discharge Cut-off Voltage | 10.0V |
| Cell Model | IFR32650/32750 |
| Casing Material | Steel Case for Single Cells |
| Self Discharge Rate | ≤3% after one month |
| Life Cycles | 80% capacity remaining after 2000 times at 1C rate 100%DoD |
| Max Charger Voltage | DC14.6V |
| Standard Charge Current | 0.2C |
| Protection Function | Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection |
| Product Size(mm) | 151*51*93 | 135*85*85 | 182*76*167 | 118*175*175 | 190*165*175 | 190*165*175 | 350*168*179 |
| Approx N.W | 0.9Kg | 1.3Kg | 2.8Kg | 4.0Kg | 5.5Kg | 7.0Kg | 8.0Kg |
| | OPT-12-080 | OPT-12-100 | OPT-12-150 | OPT-12-200 | OPT-12-200 | OPT-12-300 | OPT-12-400 |
| Standard Capacity | 80Ah | 100Ah | 150Ah | 200Ah | 200Ah | 300Ah | 400Ah |
| Product Size(mm) | 260*170*215 | 330*170*220 | 502*262*242 | 502*262*242 | 360*220*262 | 520*262*242 | 560*360*200 |
| Approx N.W | 11Kg | 16Kg | 24Kg | 35Kg | 38Kg | 45Kg | 65Kg |
Product Feature:1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
Company Information
How to order?
1. If you are interested in any products, please tell us the model No, detailed parameter, we will quote you in time
2. After confirmation of the price, we will make the PI for you
3. After receiving your deposit, we will arrange shipment for you
4. After shipment, we provide you with the bill of lading number
Why choose us?
Our advantage
Product | 1)Green product with CE/MSDS/MGS/ISO certificate |
| 2) Mercury content: ≤1ppm and Cadmium Free |
| 3)no leakage |
| 4) International Approvals |
| 5) Military Specifications |
| 6)Packaging as your request |
| 7)favorable price |
| 8) Prompt Delivery |
| 9) Small Orders Accepted |
company | 1) Establishment: 2014 professional battery manufacturer |
| 2) Employess: 500 including 10 professinal R&D engineer |
| 3) Capital: US$100 millions |
| 4) Exported Countries: 40 Countries |
| 5) International Agents Countries: The United States, Britain, Canada, Germany, Russia, Poland, Brazil, India, etc |
| 6) Production Capability: 2,000,000Ah per month for rechargeable battery and 40,000,000pcs. primary battery |
| Personalized OEM ,Welcome |
| 1.Make your LOGO on the each battery |
| 2.Make your alu foil, card design |
| 3.Meet your packaging request |
FAQ
Q1: What's inquiry reply time?
A1: We will reply your inquiry as soon as possible within 6 hours (maybe big time difference between us).
Q2: What's certificate?
A2: We have CE, RoHs, ISO9001 SGS
Q3: What's warranty?
A3: For the batteries, we have 1 years warranty. If any quality problems on our side occured during this warranty period, we will replace them at our cost (including the shipping cost).
Q4: What's price?
A4: We provide reasonable price and recommend suitable batteries to our customers.
Q5: What's delivery time?
A5: We give 7~15 days delivery time for formal battery orders.
Q6: What's MOQ?
A6: We can accept small MOQ at the beginning to help customer enter into market firstly.
Q7: What's service?
A7: Our policy is to provide more faster & safer & easier service for our customers.
We can provide Technical Support.
We can accept TT, Western Union, L/C, OA, etc..
We can provide others service etc. .
Q8: What's marketing supports?
A8: We are willing to help you do the marketing together.
We can provide different free products, and we can also support you do some attractive suitable
local advertisement.
