LiFePO4 Battery Pack 24V 100ah

Name: LiFePO4 Battery Pack 24V 100ah
Brand: all-electronics-online.com
SKU: 800663145
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 743-776/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDFP-24V-100Ah
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Battery Packs for E-Bike
Electrolyte:	Electrolyte

Product Description

Lithium Ion Battery cells and packs for E-bike, E-motorbike, E-golf car, E-wheelchair and E-Scooter, E-Skateboard, E-Bus, UPS, E-Vihicle, Energy shortage system, Telecommunication base station, E-tools, Fork lift, etc.

Tianjin Enerbyte Electronics Co.,Ltd is a customer oriented company for manufacturing Lithium battery cells and also battery packs. With 8 years of manufacturing experience and a team of development and technical engineers, we have been exporting Lithium Batteries to 80 countries.
Our Lithium batteries are consisted of Lithium ion batteries, LiFePO4 batteries, 18650 and 26650 and also Prismatic battery cells with highest up to 200Ah single cell.

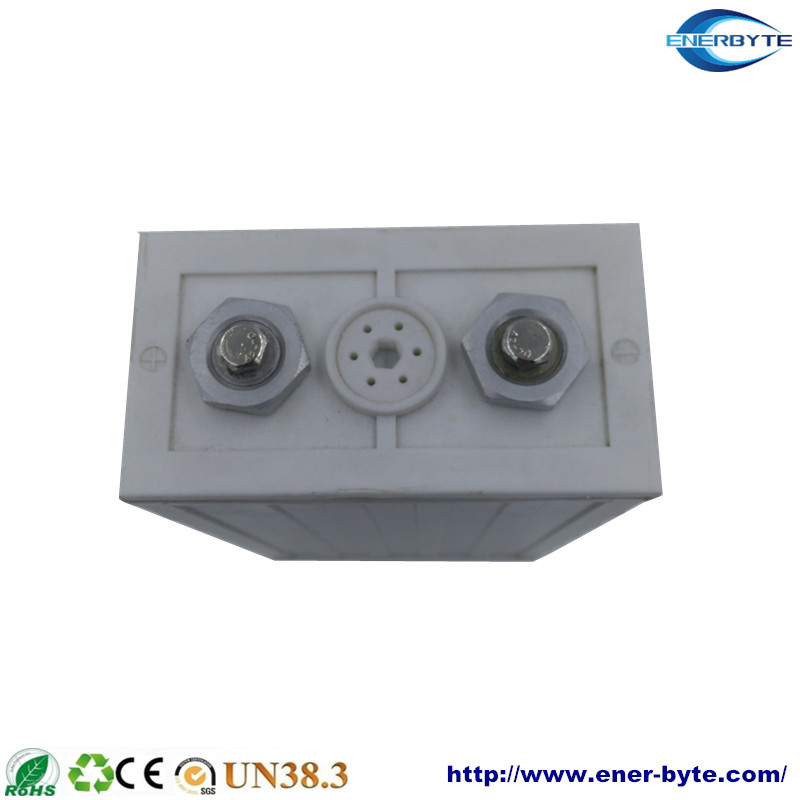

Sealed LiFePO4 Battery pack 24V 100Ah
This battery pack is best for replacement of sealed lead acid batteries. Best applications are for electric vehicles and energy storage applications. Custom made battery packs are available.
Sealed LiFePO4 Battery Pack 24V 100Ah

LiFePO4 Battery Pack Characteristics
Model		TDFP-24V-100Ah
Capacity(0.2C₅A)		100Ah
Nominal Voltage		25.6V
Max. Charge Voltage		29.2V
Discharge Cut-off Voltage		20V (recommended)
Working Voltage Scope		25.6V~29.2V
Max. Charge Current		50A
Continuous Discharge current		100A
Max. Discharge current		300A 3Sec
PCM control Discharge current		100A (continuous)
Weight (Approx.)		14.2Kgs
Battery Dimensions		140x220x80mm(HXWXL)
Impedance (Max, at 1000Hz)		Single Cell≤25 mΩ
Cycle Life (80DOD%)		>2000 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	25A×4hrs
	Quick	50A×2hrs
Operating Temperature	Charge	0ºC~45ºC;32^oF~113^oF
	Discharge	-20ºC~60ºC;-4^oF~149^oF

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
