Name: LiFePO4 Battery Pack 48V 150ah
Brand: all-electronics-online.com
SKU: 800735455
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 960-968/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDFP-48V-150Ah
Certificate:	Ce Un38.3 IEC62133 RoHS MSDS
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Battery Packs for E-Bike
Electrolyte:	Electrolyte

Product Description

Lithium Ion Battery cells and packs for E-bike, E-motorbike, E-golf car, E-wheelchair and E-Scooter, E-Skateboard, etc.

To realize mutiple power battery with different voltage and capacity ,we have new battery cells with big capacity and long lifespan and goodperfomance, which could build packs in series and parrallel.

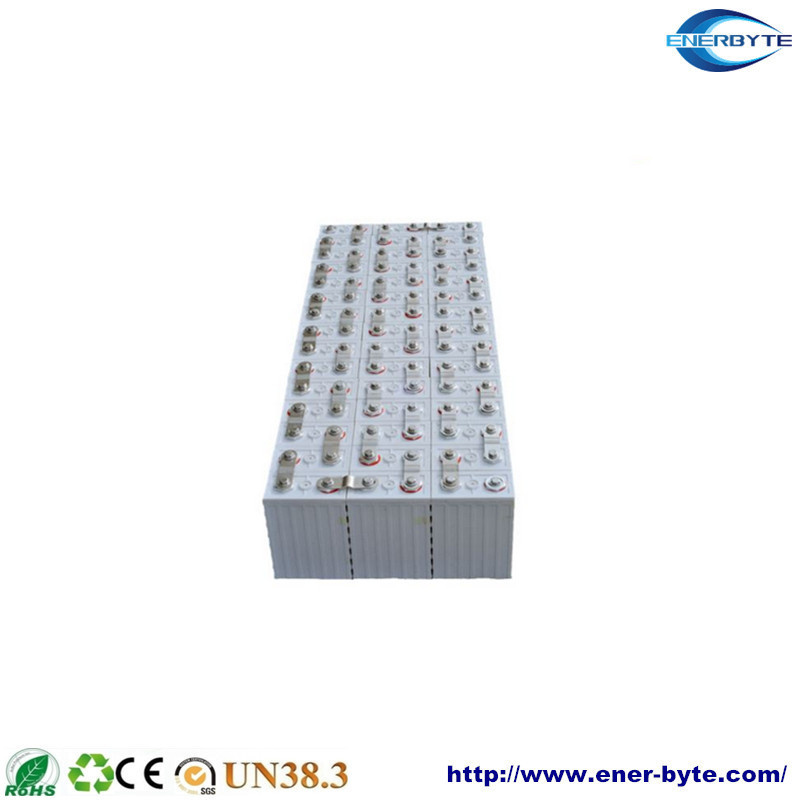

Sealed LiFePO4 Battery pack 48V 150Ah
This battery pack is best for replacement of sealed lead acid batteries. Best applications are for electric vehicles and energy storage applications. Custom made battery packs are available.
Sealed LiFePO4 Battery Pack 48V 150Ah

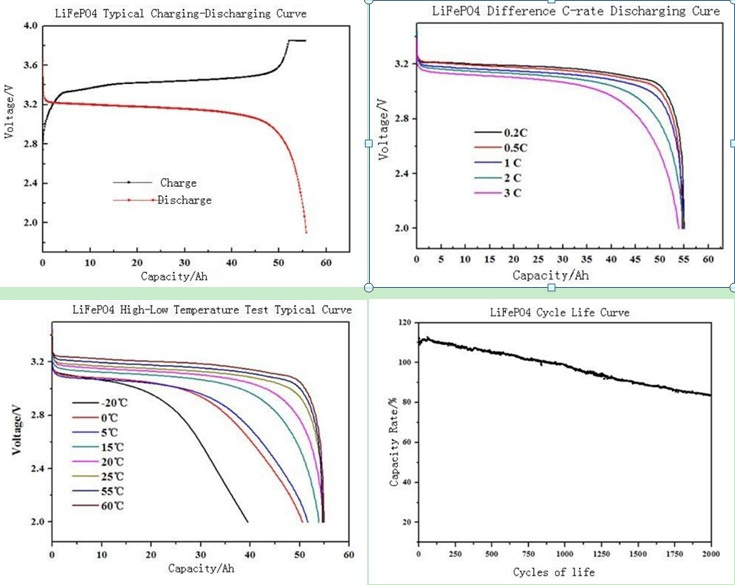

LiFePO4 Battery Pack Characteristics
Model		TDFP-48V-150Ah
Capacity(0.2C₅A)		150Ah
Nominal Voltage		48V
Max. Charge Voltage		54.8V
Discharge Cut-off Voltage		40V (recommended)
Working Voltage Scope		48V~54.8V
Max. Charge Current		75A
Continuous Discharge current		150Ah
Max. Discharge current		450A 3Sec
PCM control Discharge current		150A (continuous)
Weight (Approx.)		24.2Kgs
Battery Dimensions		220x170x360mm(HXWXL)
Impedance (Max, at 1000Hz)		Single Cell≤25 mΩ
Cycle Life (80DOD%)		>2000 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	37.5A×4hrs
	Quick	75A×2hrs
Operating Temperature	Charge	0ºC~45ºC/ 32^oF~113^oF
	Discharge	-20ºC~60ºC/ -4^oF~149^oF

Battery Application
LiFePO4 battery packs can used for E-bike, E-motorbike, E-golf car, E-wheelchair and E-Scooter, etc.

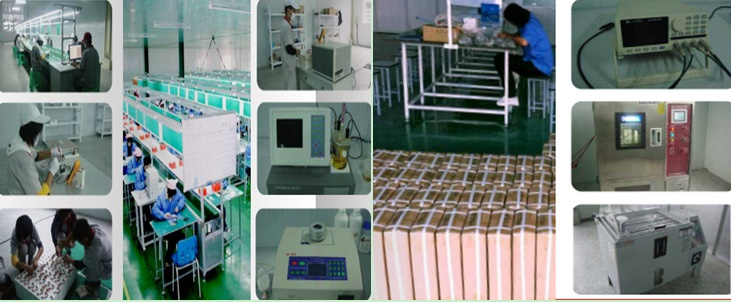

This is our factory and warmly welcome to visit us.

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
