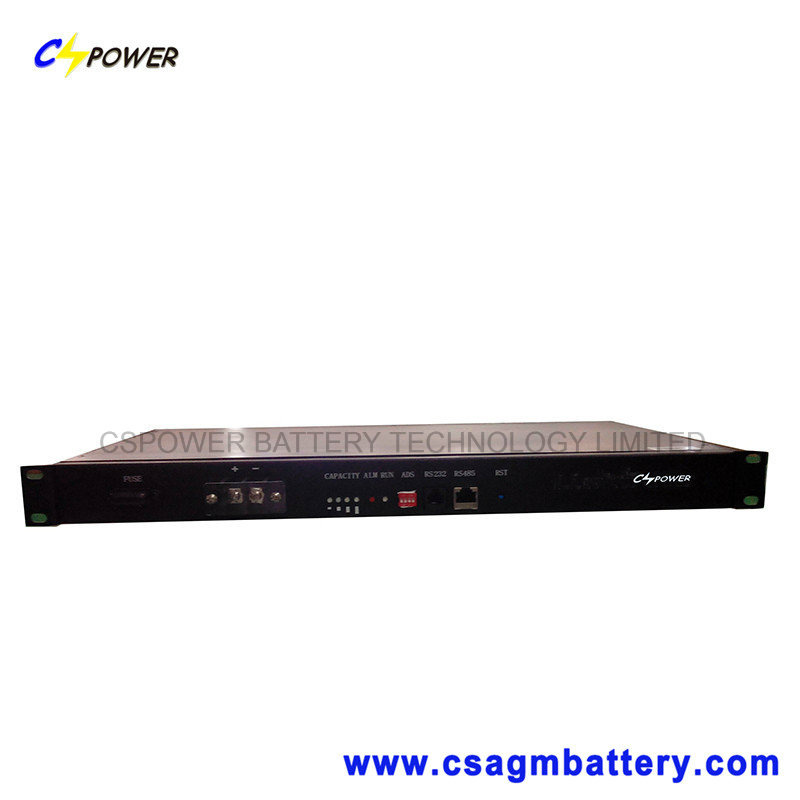

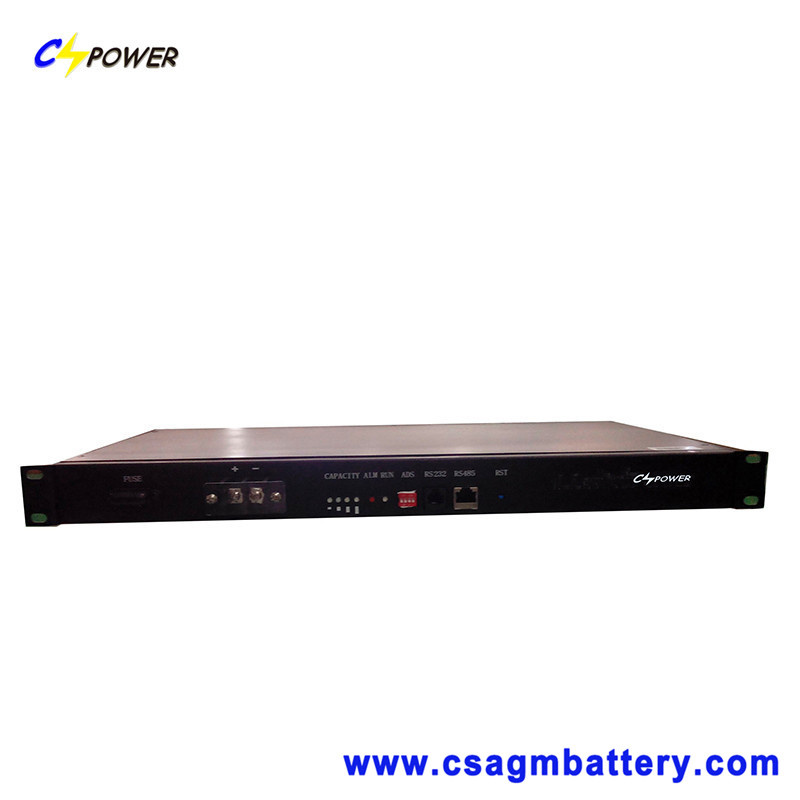

LiFePO4 Lithium 48V 20ah Telecom/Solar Battery Pack
| Price: |
US $ 390-429/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
BT-P4820X-6-I lithium battery |
| Dimensions: |
442*385*44(mm) |
| Warranty: |
3 Years |
| Max. Charge Voltage (V): |
57.6 |
| BMS Board Quiescent Current (Ma): |
1mA |
| Charging Temperature (ºC): |
0 / +55 (Can Be Set) |
| Discharge Temperature(ºC): |
-20 / + 70 (Can Be Set) |
| Over-Discharge Protection Current (a): |
110 |
| Float Voltage(V): |
54.0~55.0 |
| Overcharge Protection Voltage(V): |
57.6 (Can Be Set) |
| Over-Discharge Protection Voltage(V): |
43.2 (Can Be Set) |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Solar / UPS/Telcom/Medical Equipment |
| Discharge Rate: |
High Discharge Rate |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
Lithium Battery 3.2V |
| Shape: |
Llimied Space Lithium-Lion Battery |
| Electrolyte: |
LiFePO4 Battery 48V |
Product Description
LiFePO4 Lithium 48V 20AH Telecom/Solar Battery Pack
CharacteristicsLithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field.
Voltage: 12V, 24V, 48V
Capaicty: upto 12V200Ah, 24V100Ah, 48V100Ah.
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
80%DOD, >3000 cyclesAdvantages for CSPOWER LiFePO4 Battery - Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month. - Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
- Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
- Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
- High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
- Optional LCD digital display. Optional LCD digital display can install in the front panel of battery and show battery voltage, capacity, current information, etc.
-
BMS of LiFePO4 Battery
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection
Sepcificaion of LifePO4 battery (19 inch)| MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | (±3%) |
| BT-B1240F-6-I | 12 | 40 | 442 | 385 | 44 | 10 |
| BT-B1250F-6-I | 12 | 50 | 442 | 385 | 44 | 12 |
| BT-B1280F-6-I | 12 | 80 | 442 | 385 | 88 | 17.5 |
| BT-B12100F-6-I | 12 | 100 | 442 | 385 | 88 | 20 |
| BT-B12200F-6-I | 12 | 200 | 442 | 385 | 132 | 38 |
| BT-P1260F-6-I | 12 | 60 | 442 | 250 | 88 | 12 |
| BT-P12100F-6-I | 12 | 100 | 442 | 385 | 88 | 19 |
| BT-P12200F-6-I | 12 | 200 | 442 | 385 | 132 | 38 |
| BT-B2410E-6-I | 24 | 10 | 442 | 310 | 44 | 8 |
| BT-B2420E-6-I | 24 | 20 | 442 | 310 | 44 | 13 |
| BT-B2460E-6-I | 24 | 60 | 442 | 385 | 88 | 22 |
| BT-B24100E-6-I | 24 | 100 | 442 | 385 | 132 | 38 |
| BT-P2420E-6-I | 24 | 20 | 442 | 310 | 88 | 13 |
| BT-P2460E-6-I | 24 | 60 | 442 | 385 | 88 | 22 |
| BT-P24100E-6-I | 24 | 100 | 442 | 385 | 132 | 38 |
| BT-B4810X-6-I | 48 | 10 | 442 | 385 | 44 | 8 |
| BT-B4820X-6-I | 48 | 20 | 442 | 385 | 44 | 12 |
| BT-B4830X-6-I | 48 | 30 | 442 | 385 | 88 | 18 |
| BT-B4840X-6-I | 48 | 40 | 442 | 385 | 88 | 25 |
| BT-B4850X-6-I | 48 | 50 | 442 | 385 | 132 | 35 |
| BT-B48100X-6-I | 48 | 100 | 442 | 400 | 222 | 63 |
| BT-P4810X-6-I | 48 | 10 | 442 | 385 | 44 | 9 |
| BT-P4820X-6-I | 48 | 20 | 442 | 385 | 44 | 14 |
| BT-P4830X-6-I | 48 | 30 | 442 | 385 | 88 | 20 |
| BT-P4840X-6-I | 48 | 40 | 442 | 385 | 88 | 28 |
| BT-P4850X-6-I | 48 | 50 | 442 | 385 | 132 | 35 |
| BT-P4875X-6-I | 48 | 75 | 442 | 385 | 176 | 45 |
| BT-P48100X-6-I | 48 | 100 | 442 | 400 | 222 | 63 |
Remarks: BT-P series Lithium -Ion battery with communication interfaceFeatures for CSPOWER Lithium battery Due to the demand for energy saving strategies, CSPOWER delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.ApplicationElectric Vehicles,electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting and so onFactory

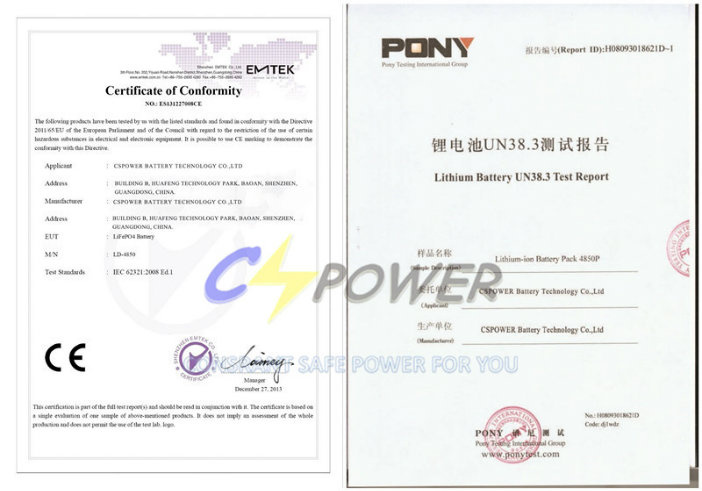

Certification
Why Choose CSPOWER?
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
CSPOWER BATTERY TAGS:- lithium-ion battery, LiFePO4 Battery;rechargeable battery pack,19inch battery pack for telecom,energy sotrage battery,sealed lead acid battery,rechargeable lead acid battery
- 2V battery,long life span battery,battery pack ,12V battery, battery for 48v system,6V solar ups battery
- deep cycle deep acid battery, backup energy battery, deep cycle solar battery,solar panel battery,solar power storage battery,solar battery,home use storage battery
- marine battery,telecom battery, UPS battery,industrial battery,automotive battery, starting lead acid battery, forklift battery,emergency lighting battery,Electric Vehicle batteries,Electric Wheel Chair battery, Power Tools battery
For more information,please kindly visit our website: http://www.csagmbattery.com. Or Contact with our sales directly :
Attn: Jessy
Mobile: +8613613021776
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
