Lifting Hoist Control Switch, Overload Switch, Wireless RF Remote Control

Name: Lifting Hoist Control Switch, Overload Switch, Wireless RF Remote Control
Brand: all-electronics-online.com
SKU: 731408462
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 75/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	F21-2D
Name:	Crane Industrial Remote Control F21-2D
Control Distance:	up to 100m
Control Point:	4
Temperature:	-35°c___+80°c
Unique Code:	Over 4.3billon Unique ID Codes
Enclosure Protection Class:	IP65
Receiver Power:	AC 380V/ 36V/220V or DC12V/24V
Transmitter Power:	DC3V
Output Capacity:	5 Amperes
Certificate:	Ce, FCC, ISO9001:2008
Application:	Cranes, Hoists, Heavy Trucks, Excavator, Trailer,
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	AC 380V/ 36V/220V or DC12V/24V

Product Description

lifting hoist control switch , overload switch ,wireless rf remote control

Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

Products Application:
Hoisting appliance, electric vehicle, electric door, and for industrial wireless remote control use which under 4 control points etc.

Brief Introduction:

Transmitter Size:196*65*53mm weight:320g
Receiver Size:171*86*85mm weight:550g

Specifications:

Application	Hoist, winches, lifts, doors and other industrial machine
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	4
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	2 Double speed push button+1 start+1 Emergency button
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard Configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

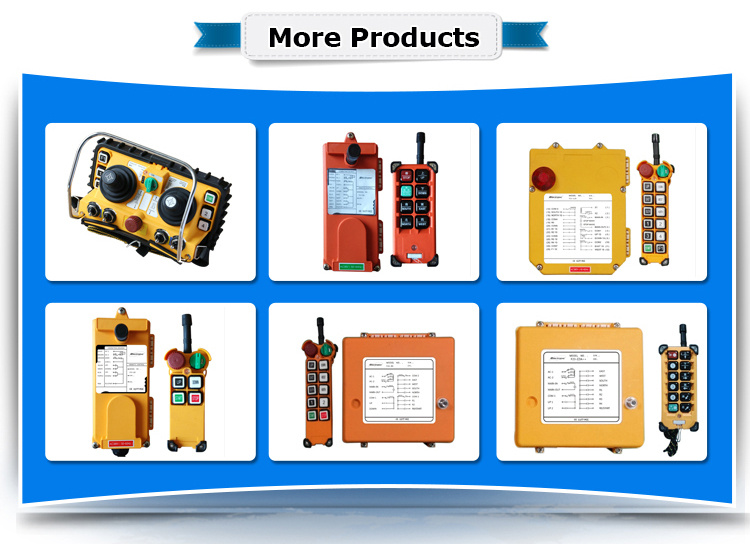

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
