Light Dependent Resistor Ldr 4mm Photoresistor (MJ4539)

Name: Light Dependent Resistor Ldr 4mm Photoresistor (MJ4539)
Brand: all-electronics-online.com
SKU: 788880275
Availability: InStock
Rating: 4.3 (37 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ4539
Resistance:	10-20k
Dark Resistance:	1 M Ohm
Technology:	Metal Oxide

Product Description

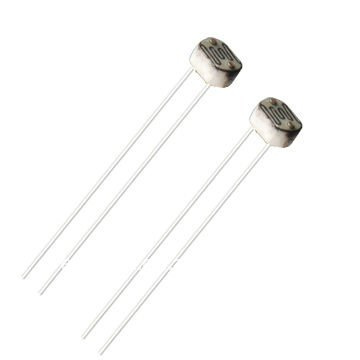

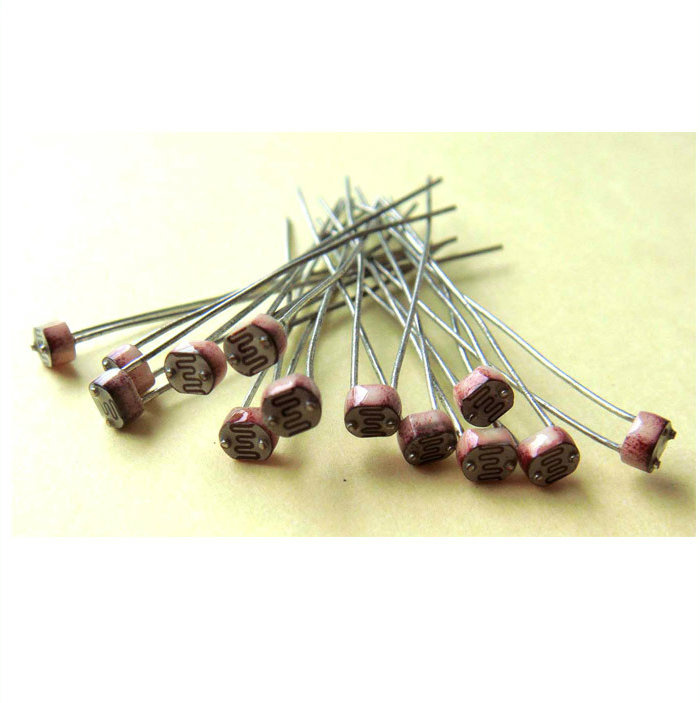

Light Dependent Resistor LDR 4MM Photoresistor(MJ4539)

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic

Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector

-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
II. ldr sensor Application:
1.Photoresistor used for Electronic toy
2.Photoresistor used for lamps,
3.Camera automatic photometry
4.Photoelectric control
5.Indoor ray control
6.Annunciator
7.Industrial control
8.Light control switch
9.Light control lamp
Electronic toy

III.LDR Sensor Features
1.Coated with epoxy
2.Good reliability
3.Small volume
4.High sensitivity
5.Fast response
6.Good spectrum characteristic

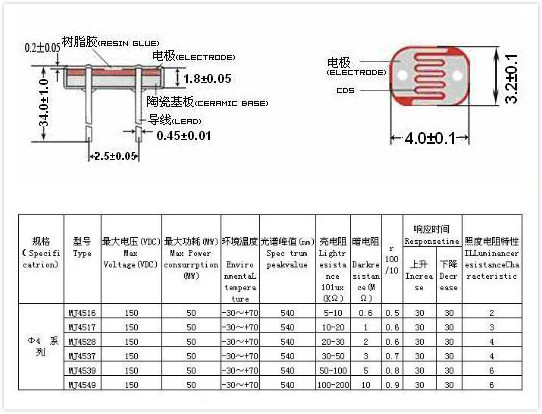

Specification	Type	Max Voltage (VDC)	Max power (mw)	Environmental temperature	Spectrum peak value (nm)
φ4series	MJ4516	150	50	-30~+70°C	540
	MJ4517	150	50	-30~+70°C	540
	MJ4528	150	50	-30~+70°C	540
	MJ4537	150	50	-30~+70°C	540
	MJ4539	150	50	-30~+70°C	540

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		Illuminance resistance characteristic
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	Illuminance resistance characteristic
φ4 series	5-10	0.6	0.5	30	30	2
	10-20	1	0.6	30	30	3
	20-30	2	0.7	30	30	4
	30-50	3	0.8	30	30	4
	50-100	5	0.8	30	30	6
