Lighting Capacitor for Lamp Cbb80 Generator Capacitor

Name: Lighting Capacitor for Lamp Cbb80 Generator Capacitor
Brand: all-electronics-online.com
SKU: 779484695
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 0.35-1.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacitance :1-50UF:	Voltage 250VAC to 630VAC
Temperature :-40 To 105:	Small Size and Top Quality ,Low Loss
CE ,RoHS Certificate:	IEC61048&IEC61049 Standard
Offer OEM And ODM Service:	Delivery Time : 2 Weeks
Safety And Hard Packing ,:	Good Printing and Good Design
3 Years Warranty Time ,and Long Life:	Plastic Can or Al Can Design
Type:	Polypropylene Capacitor
Application:	Lighting
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

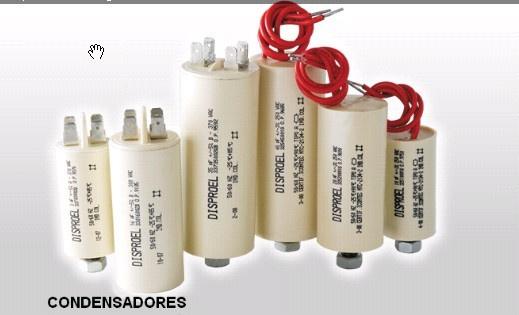

CBB80 series lighting capacitor (lamp capacitors )
Capacitance: 2 to 60uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.

Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.

Capacitance Range:	2 to 60μF
Voltage Ratings:	110Vac to 630Vac.
Capacity volume variance:	±3%,±5%,±10%
Operating Temperature Range:	-40°C to +105°C
Operating Frequency:	50 to 60Hz
Loss tangent:	tgδ ≤0.002(100HZ)
Class of Safety Protection:	P2, P1
Class of Operation:	Class A, Class B
Dielectric Material:	Metallized Polypropylene
Case Material:	Plastic
Terminal	2 to 4 quick-disconnect, Wire

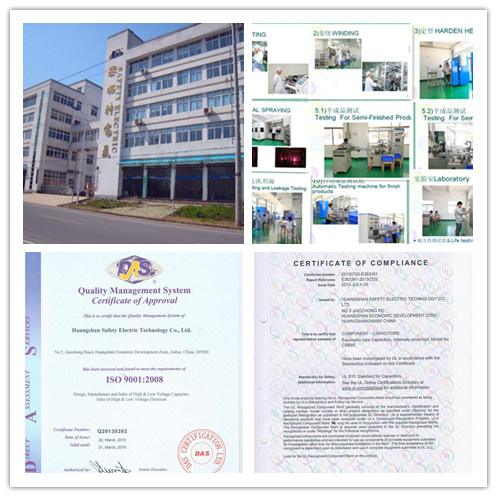

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
