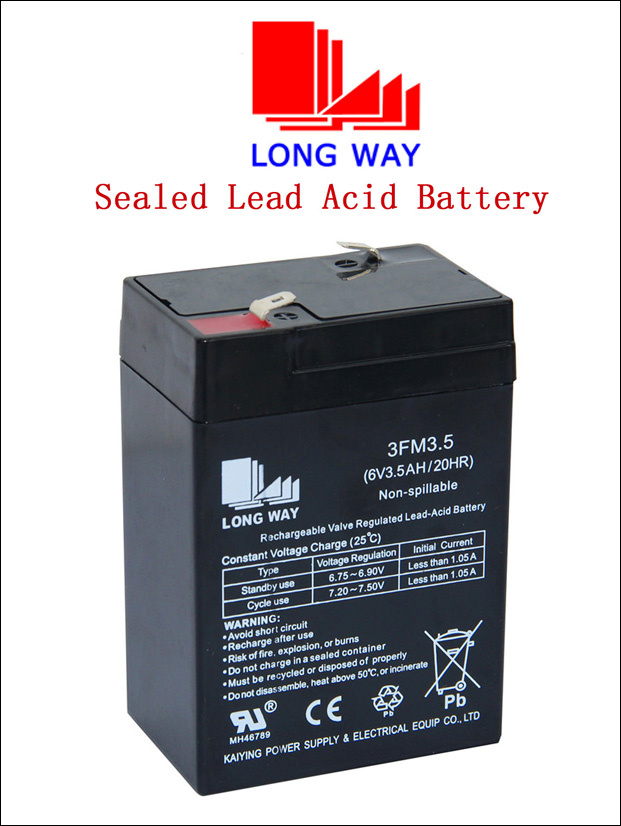

Lighting System UPS SLA Rechargeable Sealed Lead Acid Battery

Prod Model:	6v3.5ah/20hr(3FM3.5)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F1/F2
Size:	L70*W47*H99(Th105)mm
Approx Weight:	0.58kg
Packing Qty:	20 PCS/CTN
Lead-Time:	15-20days
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	6V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Lighting System UPS SLA  Rechargeable Sealed Lead Acid Battery

LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.

6V - 1.2Ah to 190Ah used for emergency lighting and alarm lighting and sound application.

LONGWAY® Standard battery is design for a general purpose by KaiYing Power.
3FM3.5 is a general purpose battery up to 5 years in star service or more than 260
cycles at 100% discharge in cycle service. As with all LONGWAY® batteries, all are
rechargeable highly efficient, leak proof and maintenance free.

1)Specifications:

Cells per Unit	3
Normal Voltage	6V
Capacity	3.5Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx.(0.58 ± 3%)kg1.28 lbs)
Maximum Discharge Current	35A(5sec)
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating  Temperature Range	25ºC±3ºC
Float Charging Voltage	6.75~6.90VDC/unit Average @25ºC
Maximum Charging Current	1.05A
Equalization and Cycle Service	7.20V~7.50VDC/unit Average @ 25ºC
Self Discharge	Self-discharge ratio less than 3%per month at 25ºC.
Terminal	F1(0.187)/F2(0.250)
Container Material	ABS(UL94-HB)  *Flammability resistance of (UL94-V0) can be available upon request

2)Application:
Lighting system;                  Security system;
Electric toy;                           Medical equipment;
Telecommunication system;
Power systems;                 UPS;            Electric tools.

3)General Features:
Maintenance free;                    Convenient for installation;
Safety and no leakage;           Excellent recharge and discharge performance;
Low self-discharge rate;        UL approval.
