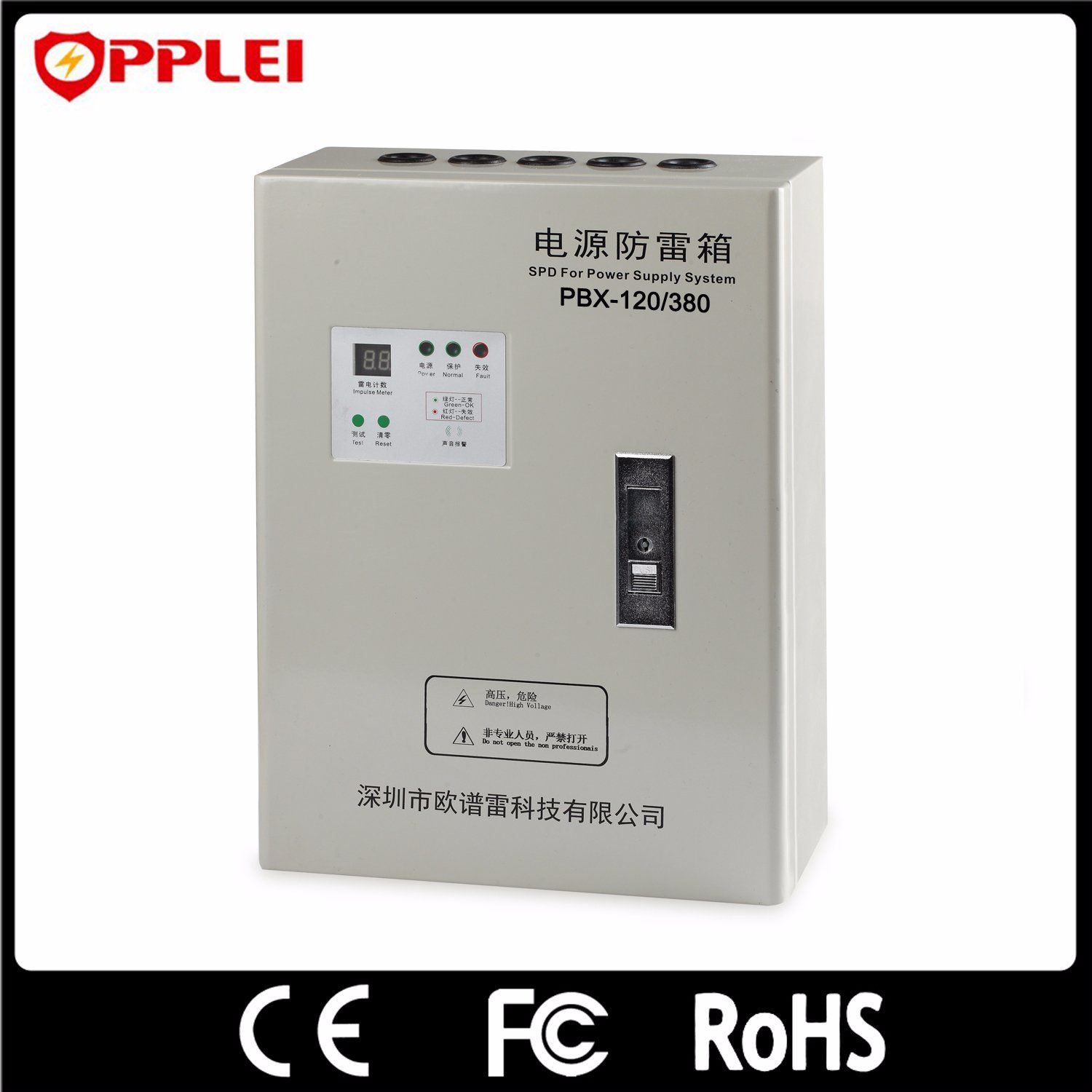

Lightning Counter 380V 120ka Low Voltage Power Surge Protector Box
| Price: |
US $ 147.5-213.68/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PBX-120/380 |
| Name: |
Surge Protective Boxes |
| Max Discharge Current: |
80ka |
| Shell Material: |
Aluminium Alloy |
| Function: |
Protection for Surge Protection |
| IP Degree: |
IP 40 |
| Warranty: |
5 Years |
| Mounting Type: |
Wall Mounting or Horizontal According to Different |
| Protection Level(20ka,8/20µs): |
2500V |
| Connecting Wire Sectinal Area: |
4-25mm ² |
| Nominal Working Voltage: |
220/380V AC |
| Current Type: |
AC |
| Frequency: |
Industrial Frequency |
| Phase: |
Single or Three Phrase |
| Brand: |
Opplei |
Product Description
380V 60KA voltage surge protector power box with lightning counter
Model PBX-120/380
1. Product features
380V surge protection box
Lightning counter instructions
Fast response & stable performance
Build-in temperature control, circuit breaking technology, high security performance
Display status of on and off
2. Applications
Lightning and over-voltage protection of power, telecommunication, transportation, residence, railway, petro-chemistry industries
3. Technical data
| Model | PBX-120/380 |
| Nominal operating voltage Un | 220/380VAC |
| Maximum continuous operating voltage Uc | 385VAC |
| Nominal discharge current In (8/20μs) | 60KA |
| Maximum discharge current Imax (8/20μs) | 120KA |
| Protection level Up (8/20μs,20KA) | ≤2.5KAV |
| Response time Ta | ≤25ns |
| Indication function | Working indication, malfunction indication, 0-99 lightning strike counting |
| Dimension | 400*310*120mm |
| Weight | 2.5-5kg |
| Mounting type | Wall mounting or horizontal according to different locations |
| Surface treatment of housing material/color | A3 steel/spray, computer white |
| Index of protection | IP40 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95%, Altitude ≤ 3000m |
| Connecting wire sectinal area | 4-25mm ² |
| warranty | Five-year warranty, three-year replacement |
| Related items | PBX-80/380/3+N, PBX-120/380/4, PBX-60/380/4, PBX120/220-2 |
Company information
Shenzhen Opplei Technologies Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge suppressor) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs lightning Protective Box Varistors
More than 10 years experiences R&D teams so easy for product customized and get a fast after sale service have the certification of CE FCC RoHS ISO9001,all product in accordance with the IEC IEEE the international standard.
Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs
.FQA:
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-10 working days for mass production after payment.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc
Q: Can I trust you?
A: Absolutely YES, We are "Made In China" verified supplier for many years.
Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.
Contact Information
Lyric
Tel:0086-755-23065899 Fax:0086-755-23061266
Mob.:0086-17630058769
Http://www.opplei.com
Shenzhen Opplei Technologies Co., Ltd is a high-tech enterprise engaged professionally in research, production, sales and system solutions of the lightning protection(Surge Protection Device) and power distribution unit for cabinet(PDU). Widely used in electric power, water conservancy, transportation, communications, security, mining, petrochemical industries, etc.
There is 1200 square meters factory and capable of producing 800, 000 units of regular models annually.
The headquarters of this company is located in High-tech park Longhua district, Shenzhen, we adhering to the "Trustworthiness Cooperation, Quality First", has passed ISO9001: 2008 quality management system certification, CE, FCC, RoHS authoritative certification, products have met the national standard and the industry standard, also got the type test report issued by the National Weather Service. We set up offices in Beijing, Shanghai, Guangzhou, Changsha, Wuhan, Chengdu, Xi 'an, Guiyang, etc. Products have been exported to the United States, Poland, Singapore, South Africa and other countries, formed the global sales and services network. Providing customers with high-quality localization, OEM, ODM services and five years warranty.
The headquarters of this company is located in High-tech park Nanshan district, Shenzhen, we adhering to the "Trustworthiness Cooperation, Quality First", has passed ISO9001: 2000 quality management system certification, ISO14001: 2004 environmental management system certification and CE, CCC, RoHS authoritative certification, products have met the national standard and the industry standard, also got the type test report issued by the National Weather Service. We set up offices in Beijing, Shanghai, Guangzhou, Changsha, Wuhan, Chengdu, Xi 'an, Guiyang, etc. Products have been exported to the United States, Poland, Singapore, South Africa and other countries, formed the global sales and services network, providing customers with high-quality localization services and five years warranty.
We can provide:
-- Safe and reliable products and complete system solutions:
The company persists in high investment on R&D of new products and the practical application of many projects, let us have the corresponding creativity and rich experience, and this will be a good guarantee for you solve the problems.
-- Advanced, professional technical support:
Many first-class talents with the new technology of persistent spirit, enables us to guarantee to provide you with the most professional applications and the most considerate service.
- -Perfect, quick after-sales service:
With the fastest speed, the most effective way, the most perfect after-sale service system to lift your worries.
Our R&D department is run by some of the country's mostly leading experts in the field with rich experience in the manufacturing and design of lightning protection device.
Our Quality Service: In order to meet the customer's demand and give a quality service, Techwin persists in the policy with "FIRST QUALITY, FIRST CUSTOMER". Our products are manufactured according to international and domestic standards and under mostly strict quality standards on ISO9001.
Our Mission: Satisfy the necessities of our customers with the sale of electronic products of high quality, to the best available price in the market and in the time that our client needs it.
Our After-sale Service: We provide customer service and technical support, a comprehensive warranty program. Additionally, as part of our customer service and technical support, our staff of dedicated engineers is available to assist you with custom designs for unique projects and applications. We ensure that all products are accepted by authorities.
Our Added Value: Our experience and expertise is our value and your best guarantee.
