Lightweight Appearance Sop Displacement Sensor From China

Name: Lightweight Appearance Sop Displacement Sensor From China
Brand: all-electronics-online.com
SKU: 820258335
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WPS-XXL
Model:	Pluse
Voltage:	8-30V
Output:	a/B
Feature:	High Pricision& Resolution
Material:	Aluminum Alloy

Product Description

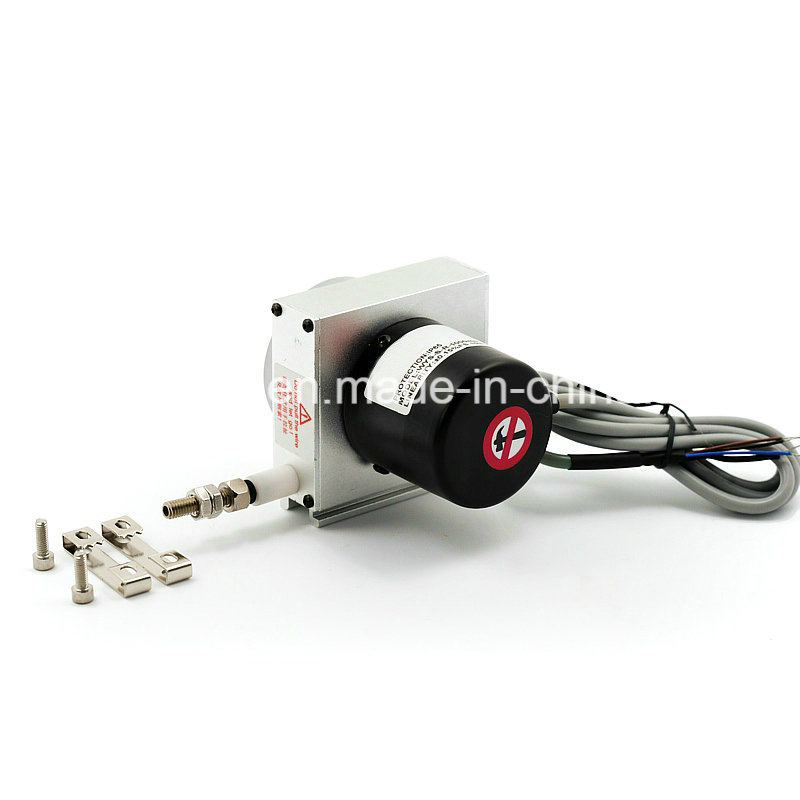

Lightweight Appearance SOP Displacement Sensor from China

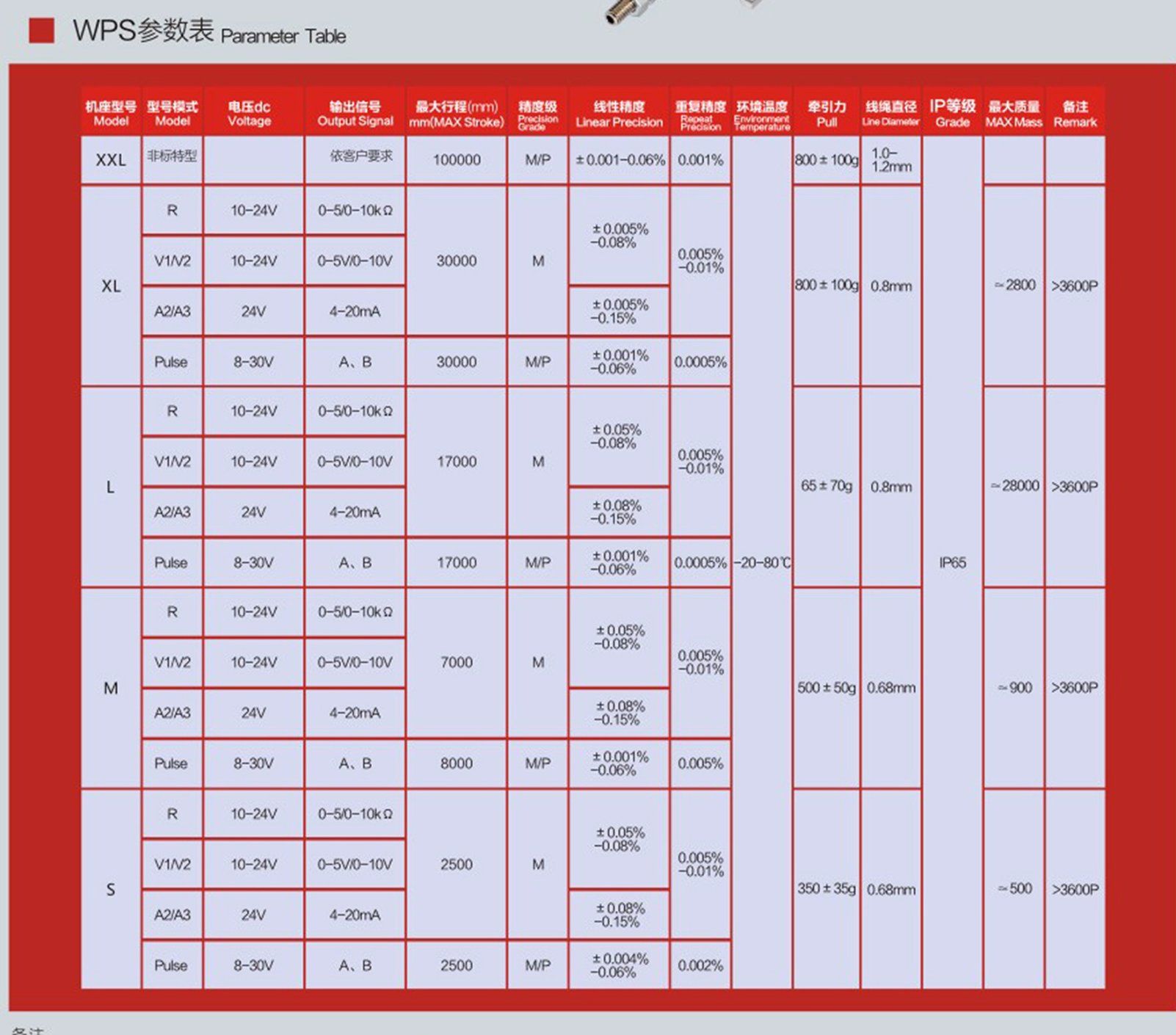

Modle	Max Stroke	IP Grade	Line Diameter	Environment Temperature
WPS	mm	IP	mm	ºC
XLL	100000	65	1.0-1.2	-20~80

Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
With fashion black box
Precious and not too clear

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

Rope displacement sensor, also known as draw wire sensor, rope encoder. It is fully compacted by a linear displacement sensor in structure which combined the advantages of an angle sensor and linear displacement sensor, ranging from a few hundred millimeters to 100 meter, with small size, compact structure, measuring stroke, high precision and 4 to 20 mA analog current, analog voltage 0 to 5 V or 0 to 10 V and pulse A, B, Z-phase digital output to meet various signals demand of the large stroke, high precision for the majority of customers use.

pulled rope displacement sensor application Yu warehouse location positioning, reservoir dam protection, gate open degrees control, pressure mechanical, paper mechanical, textile mechanical, metal plate mechanical, packaging mechanical, printing mechanical, level control instrument, building mechanical, industrial robot, shot out machine, woodworking mechanical, Elevator, empty pressure compressor /hydraulic machine, height machine, X-Y axis and the other length displacement, liquid bit, related size measurement and location control.iety of Linear Draw Wire Sensors in measuring ranges fEncoder.

Package:

15 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
