Limit Switch -4

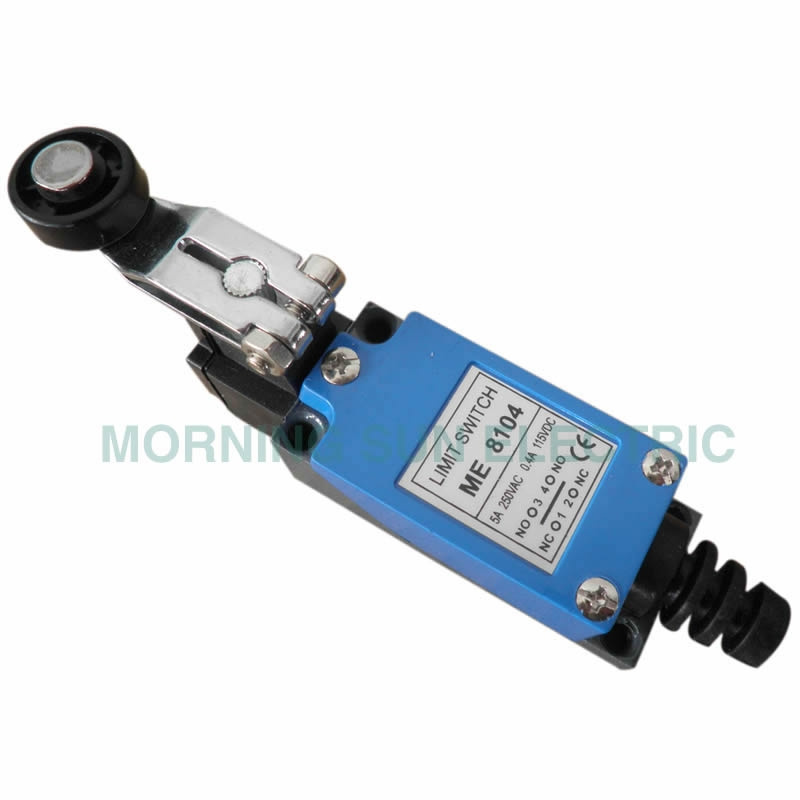

Name: Limit Switch -4
Brand: all-electronics-online.com
SKU: 667562735
Availability: InStock
Rating: 5 (141 reviews)

Price:	Negotiable
Trade Terms:	by Sea,by Express,by Air
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Features
Strong structure, made of zinc metal alloy and plastics, easy to contact line
Small size, water and oil resistant
Double way switch, double spring inner switch
Many kinds levers to move, easily use

Item		Data
Rating load		5A/250VAC
Operation speed		0.5mm-50cm/s
Operation frequency	Mechanical	240time/min
	Electrical	20time/min
Insulation resistance		100MΩ (above)(DC500V)
Contact resistance		25MΩ Initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz (Amplitude)1.5mm
Impact	Durable	1000m/s
	Misoperation	300m/s
Life	Electical	100, 00(above)
	Mechanical	1, 000, 000(baove)
Protection degree		IP66
Ambient operating temperature		-25-80 degree
Humidity		< 85%

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
