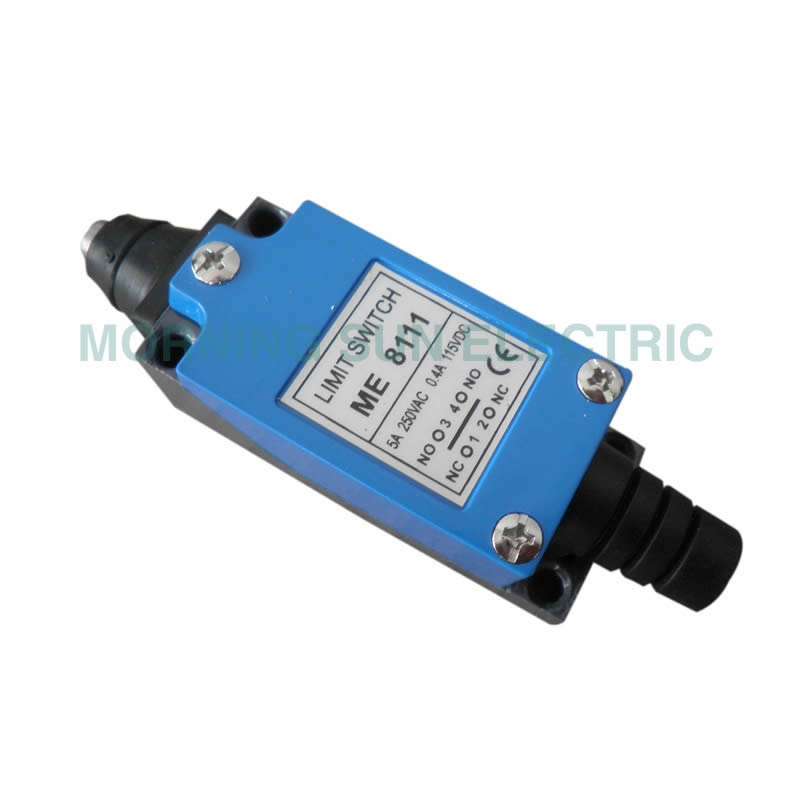

Limit Switch -5

Name: Limit Switch -5
Brand: all-electronics-online.com
SKU: 667562875
Availability: InStock
Rating: 4.8 (37 reviews)

Price:	Negotiable
Trade Terms:	by Sea,by Air,by Express
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof

Side fixed form and swift contact

Variety of levers

Item		Data
Rating load		10A/250VAC
Operation speed		0.1mm-50cm/s
Operation frequency	Mechanical	240time/min
	Electrical	20time/min
Insulation resistance		100MΩ (above)(DC500V)
Contact resistance		25MΩ Initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz (Amplitude)1.5mm
Impact	Durable	1000m/s
	Misoperation	300m/s
Life	Electical	100, 00(above)
	Mechanical	1, 000, 000(baove)
Protection degree		IP65
Ambient operating temperature		-25-80 degree
Humidity		< 85%
