Limit Switch -6

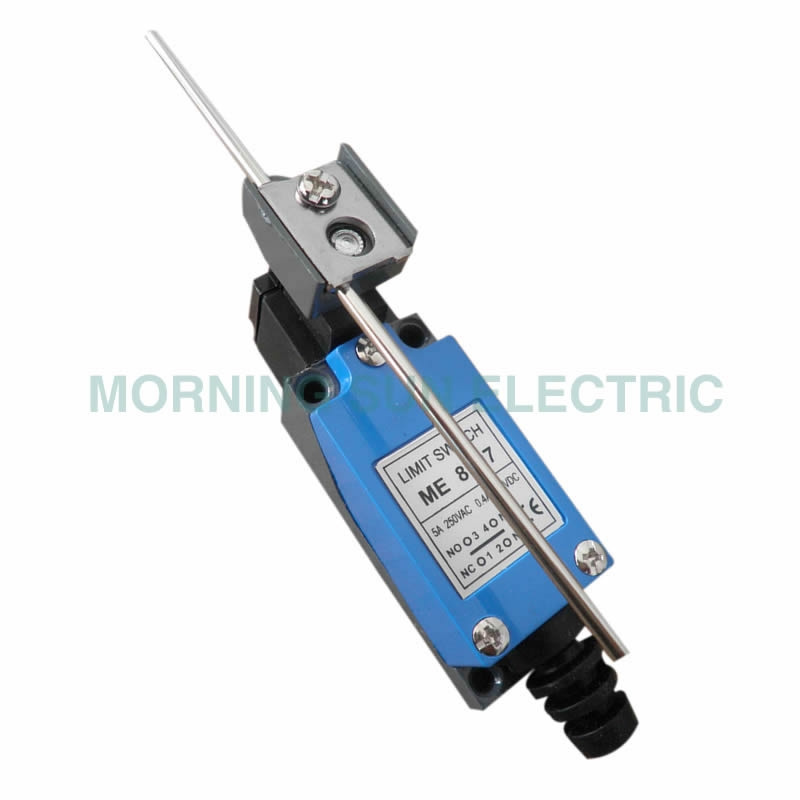

Name: Limit Switch -6
Brand: all-electronics-online.com
SKU: 667563485
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	Negotiable
Trade Terms:	by Sea,by Air,by Express
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Ecnomical eplastic type

Double way switch, double spring inner switch

Many kinds levers to move, easily use

Item		Data
Rating load		10(4)A/250VAC, 6(2)A/380VAC
Operation speed		5mm-0.5m/s
Operation frequency	Mechanical	240time/min
	Electrical	20time/min
Insulation resistance		100MΩ (above)(DC500V)
Contact resistance		25MΩ Initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz (Amplitude)1.5mm
Impact	Durable	1000m/s
	Misoperation	300m/s
Life	Electical	500, 00(above)
	Mechanical	1, 200, 000(baove)
Protection degree		IP65
Ambient operating temperature		-25-80 degree
Humidity		< 85%
