Limit Switch D4mc5020

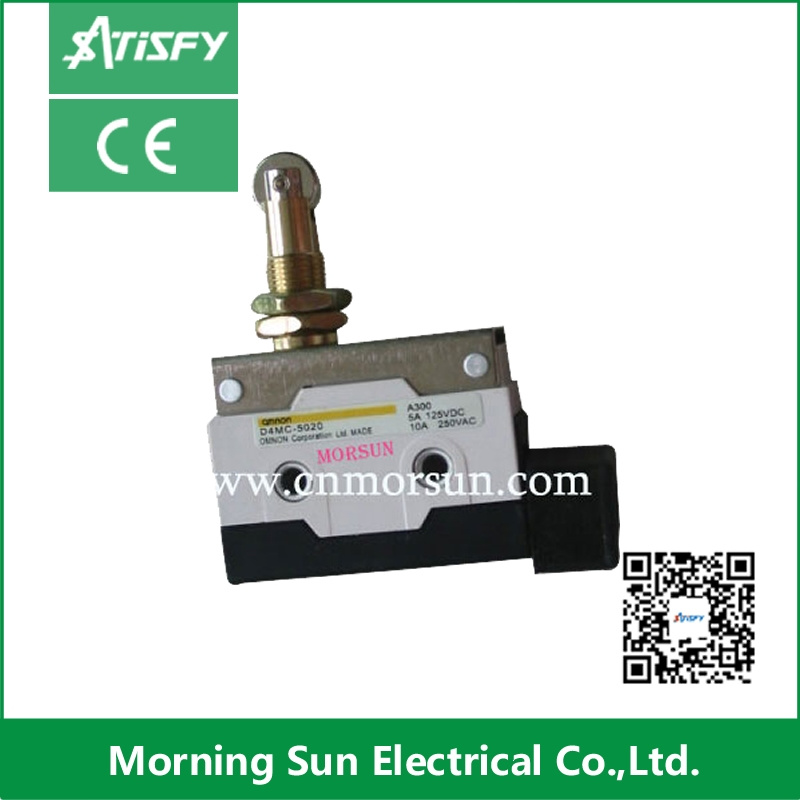

Name: Limit Switch D4mc5020
Brand: all-electronics-online.com
SKU: 677526975
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 0.70/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D4MC5020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM

Product Description

Limit switch
Features:
Variety of levers.
High precision and long life.
Suitable for applications demanding higher mechanical strength.
Gasket diaphragm seal provides high environmental resistance.
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Technical Specification:

Item		Data
Rating load		10A/250VAC
Operating speed		0.1mm-50cm/s
Operating frequency	Mechanical	120times/min
	Electrical	20times/min
Insulation resistance		100MΩAbove DC500V
Contact resistance		25mΩ initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000 above
	Mechanical	1,000,000 above
Protection degree		IP65
Operating temperature		-10~+80ºC
Operating humidity		<85%

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
