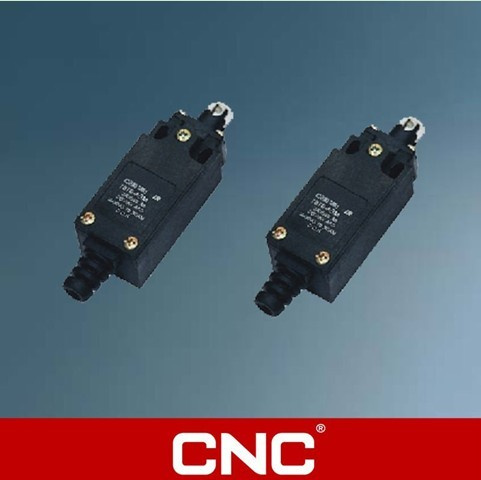

Limit Switch (MEA-9 Series)

Name: Limit Switch (MEA-9 Series)
Brand: all-electronics-online.com
SKU: 693239115
Availability: InStock
Rating: 4.4 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIP,others
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MEA-9 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

MEA-9 series limit switch is ideal electrical control switches in mechanical and other industries Limiting Switches

Operating speed	0.01mm to 50cm/sec(at pin plunger)
Operating frequency	120 operation/min
Contact resistance	25mΩ max. (initial)
Insulation resistance	100mΩ min. (at 500 VDC)
Dielectric strength	1, 000VAC, 50/60Hz for 1 minute between non-continuous terminals 2, 000VAC, 50/60Hz for 1 minute between current carrying and non-current-carrying parts and between each terminal and ground
Vibration	Malfunction durability: 10 to 55Hz, 1.5mm double amplitude
Shock	Mechanical durability: 1, 000m/s2(approx. 100G`S) Malfunction durability: 300m/s(approx. 30G`S)
Ambient temperature	Operating: -10 to +70
Humidity	95% RH max. (at +20 to +35)
Service life	Mechanically: 10, 000, 000 operations min. (at rated or value) Electrically: 500, 000 operation min.
Degree of protection	IEC: IP65

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
