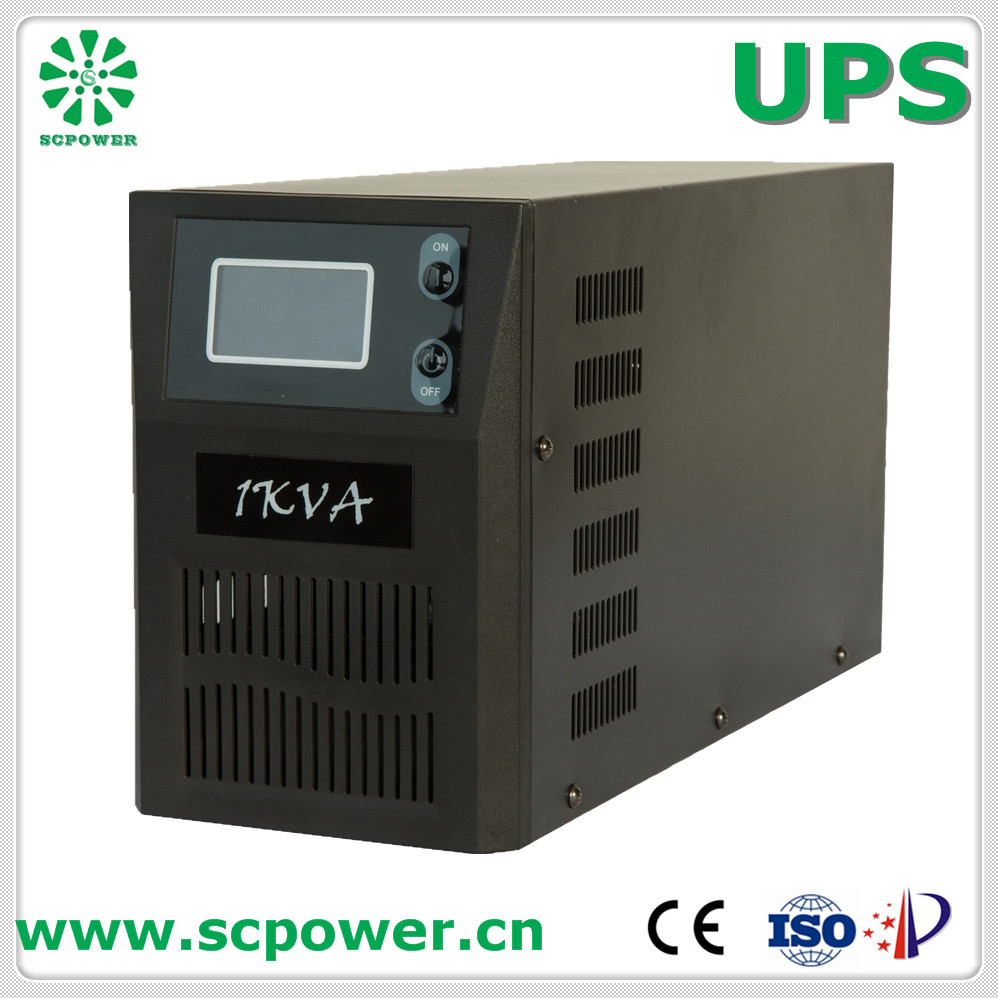

Line Interactive UPS 1kVA -10kVA

Prod Model:	ENVIE1kv
Color:	Black
Input Voltage:	165 ~ 275 VAC
Output Voltage:	220V ± 2% (Battery Mode)
Frequency:	45 ~ 65 Hz
Certification:	Ce,ISO,Patent
Design:	OEM & ODM
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	Sc Power

Product Description

The Feature of our product
.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mod

The Feature of our product
.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mode

The parameter of the product

MODEL		ENVIE 1K(L)	ENVIE 1.5K(L)	ENVIE 2K(L)	ENVIE 3K(L)	ENVIE 5K(L)	ENVIE 6K(L)	ENVIE 8K(L)	ENVIE 10K(L)
Phase		Single Phase with ground
VA Rating		1KVA/800W	1.5KVA/1.2KW	2KVA/1.6KW	3KVA/2.4KW	5KVA/4KW	6KVA/4.8KW	8KVA/6.4KW	10KVA/8KW
Display		LCD
Casing Material		Metal
INPUT
Phase		Single Phase
Connection		L, N + G wire
Voltage		165 ~ 275 Vac
Current THD		< 3%
Frequency		45Hz ~ 65Hz
OUTPUT
Voltage		220V ± 2% (Battery Mode)
Frequency		50/60Hz ± 0.5%
Efficiency		> 99% in mains mode; > 80% in inverter mode
Transfer Time		≤ 4ms
Power Factor		0.8
Current THD		< 3% (Battery Mode)
Instant Reaction		When loading changes between 0 and 100%, voltage change < 3%
Overload capability		110%, close the device in 30 seconds
		120%, close the device in 2 seconds
		Overload at city mains, buzzer alarms
Waveform		Pure Sinewave
BATTERY
Standard Model	Battery Type	Lead-Acid Maintenance-Free Battery
	Voltage	24Vdc (2x12Vdc)		48Vdc (4x12Vdc)		96Vdc (8x12Vdc)		192Vdc(16x12Vdc)
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current	Default: 1.0A ± 10%; Max: 2.0A ± 10%
	Charging Voltage	27.4Vdc ± 1%		54.8Vdc ± 1%		109.6Vdc ± 1%		219.2Vdc ± 1%
	Over Charge Ability	10 minutes at 100% ~ 125% loading; ≥ 1 minute at 125% ~ 150% loading
Long-run Model	Battery Type	Depending on application
	Charging Current	15A ~ 45A (Can adjust with software and LCD control button)
	Backup Time	Depends on Capacity and Volume of External Batteries
	Charging Voltage	27.4Vdc ± 1%		54.8Vdc ± 1%		109.6Vdc ± 1%		219.2Vdc ± 1%
PROTECTION
Over Load Protection		Yes
Short Circuit Protection		Alarms on 20 seconds and then UPS is off
Input High/Low Voltage Protection		Yes
Battery High/Low Voltage Protection		Yes
Battery Anti-polarity Protection		Yes
High Temperature Protection		Yes
ALARM
Mains failure		Buzzer sounds in every 30 seconds
Battery low voltage (after 2nd alarm)		Buzzer sounds in every second
UPS failure		Buzzer sounds continously
Overload		Buzzer sounds in every second
PHYSICAL
Standard Model	Dimension (W*D*H)	390*145*205mm		400*150*210mm	400*180*320mm	502*240*500mm		504*245*500mm
	Net Weight	24kg	26kg	30kg	32kg	44kg	46kg	64kg	67kg
Long-run Model	Dimension (W*D*H)	390*145*205mm		400*150*210mm		502*240*500mm		504*245*500mm
	Net Weight	20kg	21.5	22kg	24kg	28kg	30kg	32kg	35kg
ENVIRONMENTAL
Noise		< 38 db (1 Meter)
Temperature		0 ~ 40ºC
Humidity		10% ~ 90% (non-condensing)
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser
