Line Interactive UPS 400va-3000va
| Price: |
US $ 20-100/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ST Series |
| Capacity: |
400va-3000va |
| Design: |
Line Invteractive UPS |
| Wave Form: |
True Sine Wave |
| Outlook: |
Tower |
| Input/Output Voltage: |
110V/230V |
| Battery Voltage: |
12VDC-48VDC |
| Overcharge Protection: |
Yes |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overload |
| Brand: |
Jetpower |
Product Description

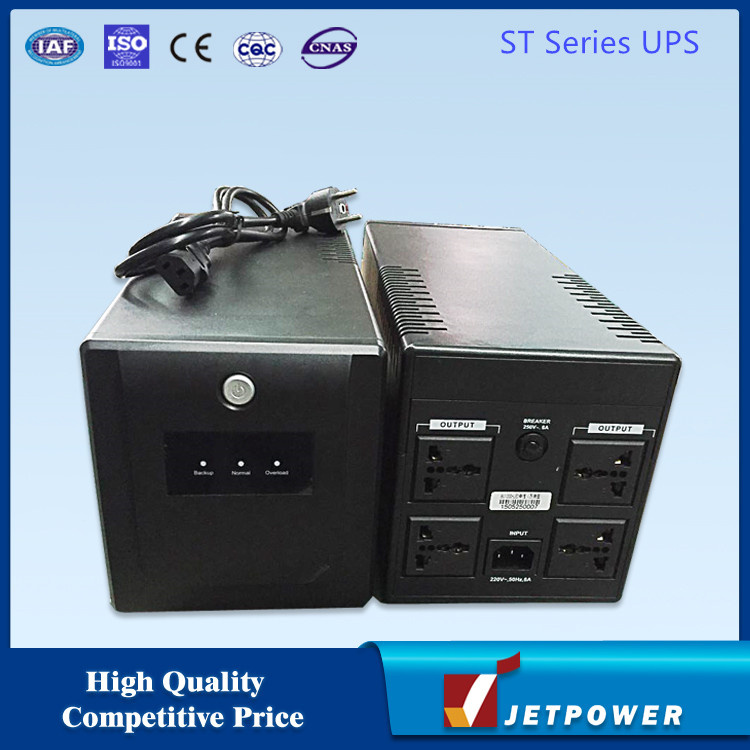

ST Series line interactive UPS (400VA-3000VA)
Product Discription:
The ST Series is line interactive UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over/under voltage, surge, transiens, spikes and other electrical abnormalities. With automatic boot voltage regulation and wide input voltage range, ST is a good choice to be applied to all kinds of complex power environment.
Product Feactures:
1. Automatic booting when the utility recovers
2. Wide range of input voltage
3. Alarm and mute
4. Auto recharging
5.Overvoltage and circuit short protection
6. Interface of RJ45/11 and USB (optional)
Specifications for ST Series line interactive UPS (400VA-3000VA)
| Model Name | ST400 | ST600 | ST800 | ST1000 | ST1200 | ST1500 | ST2000 | ST3000 |
| Capacity | 400VA | 600VA | 800VA | 1000VA | 1200VA | 1500VA | 2000VA | 3000VA |
| Input Voltage | 110/120VAC or 220/230/240VAC | 220VAC |
| Input Voltage Range | 85-150VAC/ 145-290VAC | 175-275VAC |
| Input Frequency | 50/60Hz (Auto sensing) | 50Hz |
| Output Voltage | 110/120VAC or 220/230/240VAC | 220VAC |
| Output Voltage Range | 102-132VAC / 200/255VAC | 200-240VAC |
| Output Frequency | 50/60Hz±0.5Hz | 50Hz±0.5Hz |
| Wave Form | PWM (DC mode) |
| Transfer Time | Typical 2-6ms, Max<=10ms | <=10ms |
| Q'ty &Capacity of Battery | 1*12V/5AH | 1*12V/7AH | 1*12V/9AH | 2*12V/7AH | 2*12V/7.5AH | 2*12V/9AH | 4*12V/7AH | 4*12V/9AH |
| Charging Period | 4-6 hours to 90% capacity | 10-16 hours |
| Protection | Low Voltage, Overload, and Short Circuit Protection |
| Operation Temperature | 0-40ºC |
| Relative Humidity | 20%-95% (non-comdensing) |
| Noise | <=40dB |
| Size (D*W*Hmm) | 250*95*140 | 305*85*140 | 335*118*190 | 340*110*265 | 408*145*220 |
| Net Weight (KG) | 4 | 5.5 | 6 | 10.2 | 10.2 | 10.6 | 19 | 21 |
| Optional | LED/LCD, RJ45/11 & USB |
NOTE: Product specifications are subject to change without further notice.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
