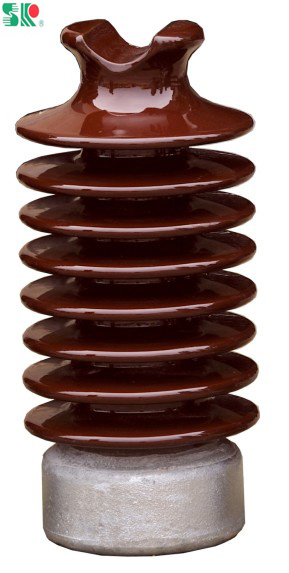

Line Post Porcelain Insulators (ANSI 57-3)

Name: Line Post Porcelain Insulators (ANSI 57-3)
Brand: all-electronics-online.com
SKU: 710248425
Availability: InStock
Rating: 4.3 (37 reviews)

Price:	US $ 7-10/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Net Weight:	13kg/PCS
Creepage Distance:	737mm
Sample:	Available
Service:	OEM, ODM
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	A Type Insulator
Connection Method:	Other
Size Of Bearing Capacity:	12.5kn
Certification:	ANSI
Color:	Brown

Product Description

Line post porcelain insulator (ANSI 57-3):

Creepage Distance: 737mm

Dry Arcing Distance: 311mm

Cantilever Failing Load: 12.5KN

Low Frequency Flashover Voltage(Dry): 125KV

Low Frequency Flashover Voltage(Wet): 100KV

Critical Impulse Flashover Voltage (Positive): 210KV

Critical Impulse Flashover Voltage (Negative): 260KV

Test Voltage To Earth: 30KV

B. Max RIV At 1000kHz: 200KV

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
