| Prod Model: |
MKS-0901000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 2 Power Distribution Equipment |
| Certification: |
PSE,SAA |
| Brand: |
Merryking |
Product Description

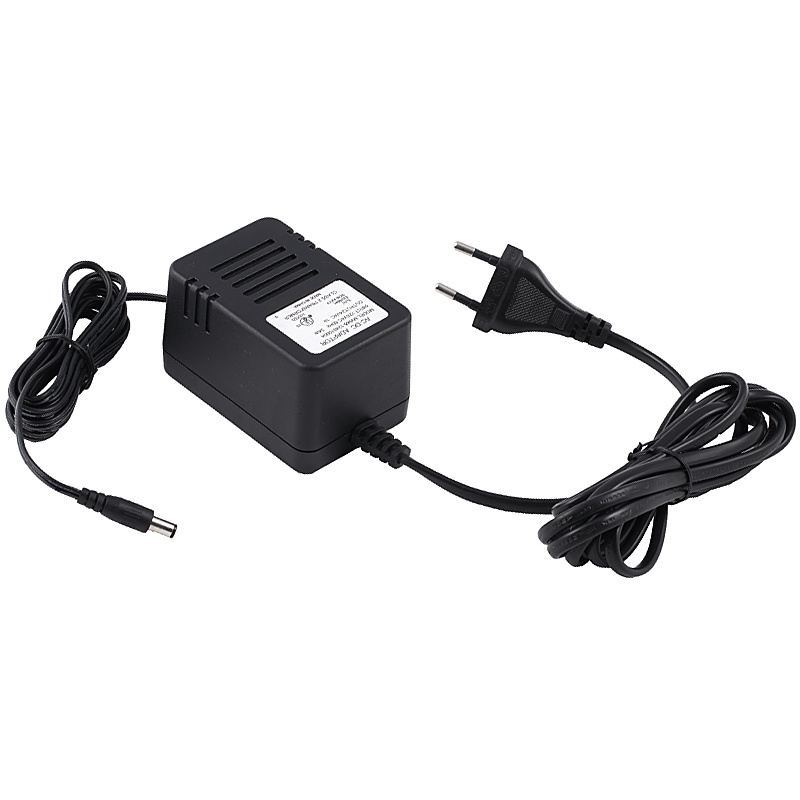

*9VDC/1A Desk-top type linear adapter, Class II, LPS Energy-saving, IP20, universal input, customized design
*Model number: MKS-0901000
*Features:
High-reliability
Low-temperature
High-efficiency
Light and convenient plug in
*Reliability:
Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA maximum at 264V AC
Customized design are accepted
Design time: 2 days maximum
MTBF: meets MIL-HDBK-217F over 60K hours, full load, 25°C
*Input:
Input voltage: 100-240V AC, 50-60Hz, 0.5A
Rated input voltage and frequency:
100V AC 60Hz (Japan), 120V AC 50/60Hz (North America), 220V AC 50Hz (China, Korea),230 to 240V AC 50/60Hz (Europe, Russia), 240V AC 50/60Hz (Australia, New Zealand),127 or 220V AC (Brazil)
No load input power (240V AC): non-CEC
Input plug: EU/VDC (EU), the US (North America), PSE (Japan), SAA (Aust, NZ), BS (UK,HK),Brazil, South Africa, CCC (China), EK (Korea) and more
*Output specification:
Power: 12W Max
DC output voltage:3-24V (AC or DC) (optional)
DC output current:30-2000mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
DC PLUG specification: 5.5*2.1*10mm normal
Normal wire length: 1.5 M
*Working environments:
Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 95% RH
Storage temperatures: -20 to 60°C
Storage humidity range: 10 to 95% RH
*Safety marks:
UL60950:2011, GB4943-2001
PSE IEC60950, EN60065
EN60950:2009, EN60065
EN61558-2-6
With CE (low-voltage Directive)
AS/NZS 60950:2000, AS/NZS60065
*General scopes:
Very low-ripple and noise, very good regulation, low-disturbance noise
but more heavy, bigger size, than switching power supply
Wide applications: CCTVs, securities, antennas, fans, radios, video, toys, aquariums, desk lamps, LED lamps and more
