Linko Yf Series 3wires PBT Plug Cable, 3 Pin Blue Plastic Shell Electrical Cable Connectors for LED Display Screen

Name: Linko Yf Series 3wires PBT Plug Cable, 3 Pin Blue Plastic Shell Electrical Cable Connectors for LED Display Screen
Brand: all-electronics-online.com
SKU: 836528805
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 4.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-C03PE-01-001; YF-24-J03SX-01-001

Product Description

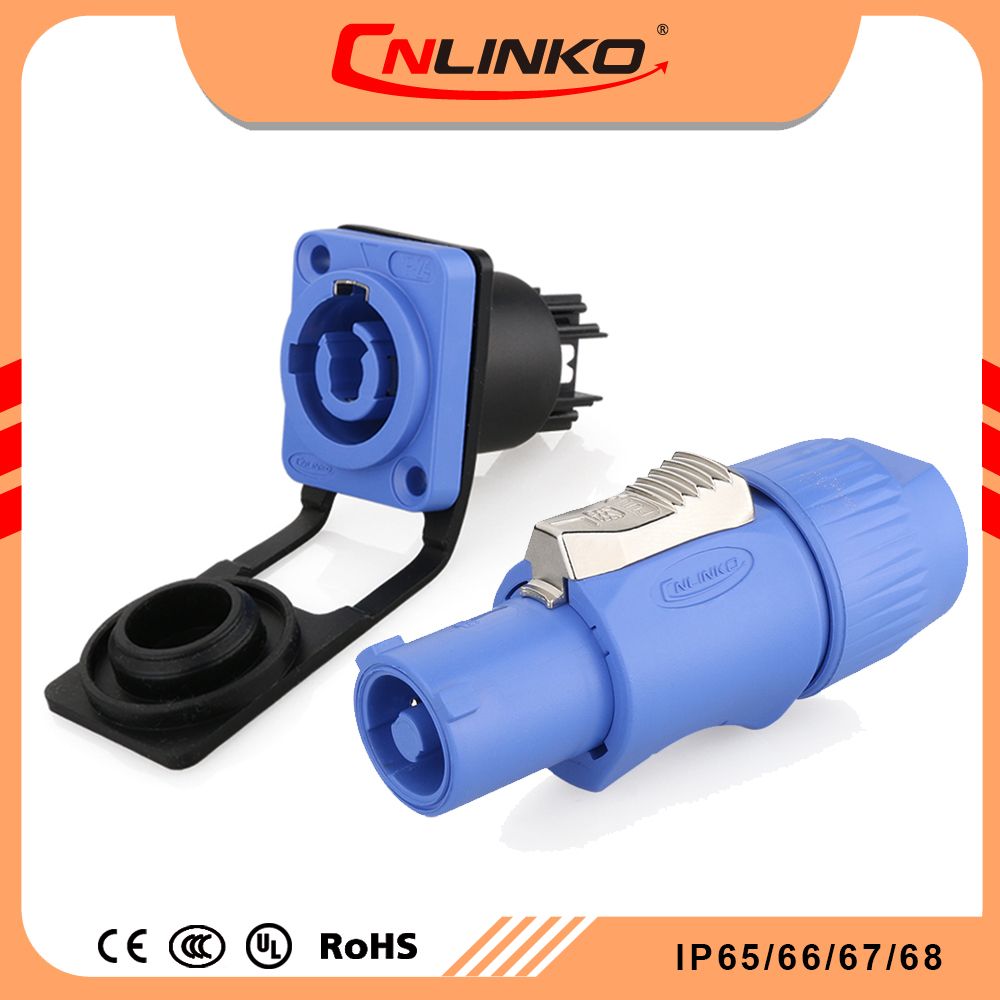

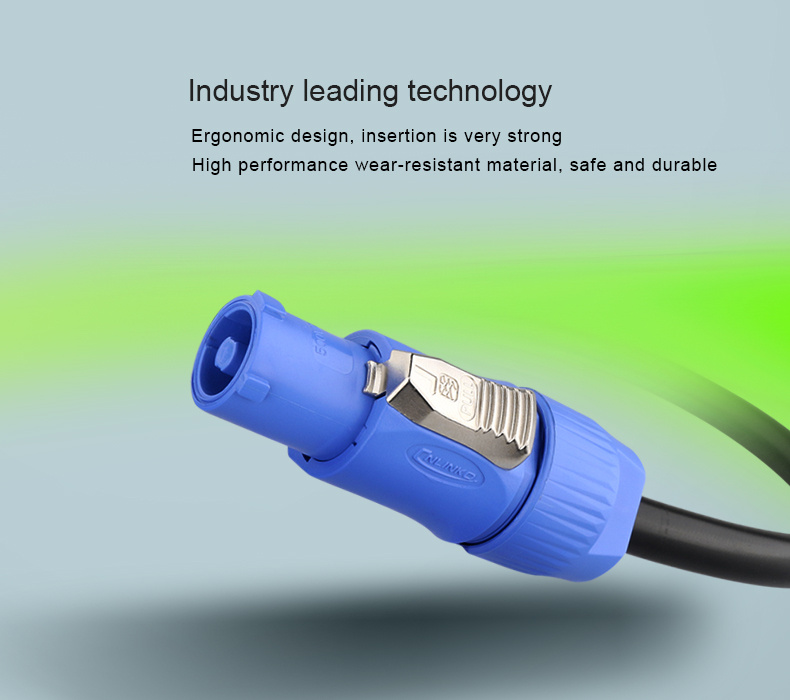

Linko YF Series 3Wires PBT Plug Cable, 3 Pin Blue Plastic Shell Electrical Cable Connectors for LED Display Screen

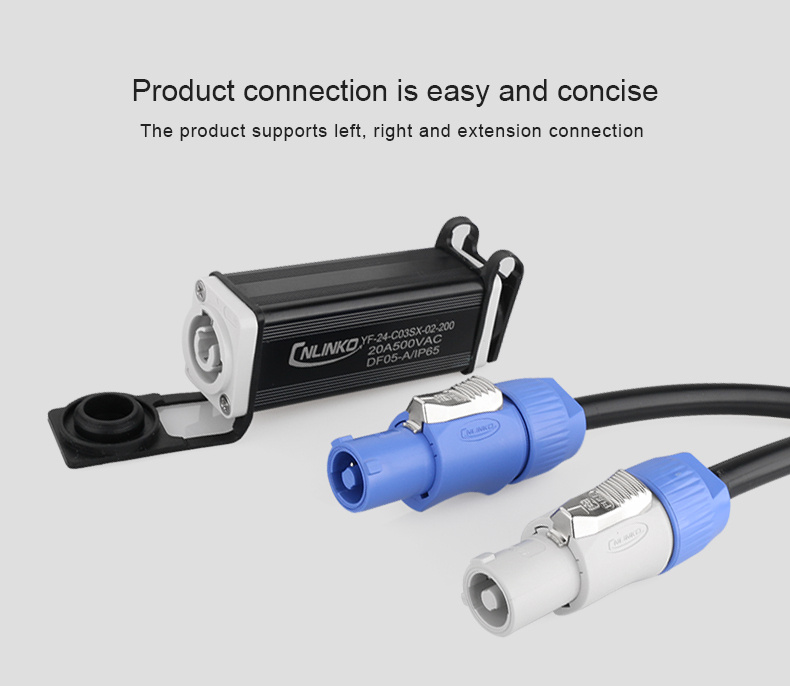

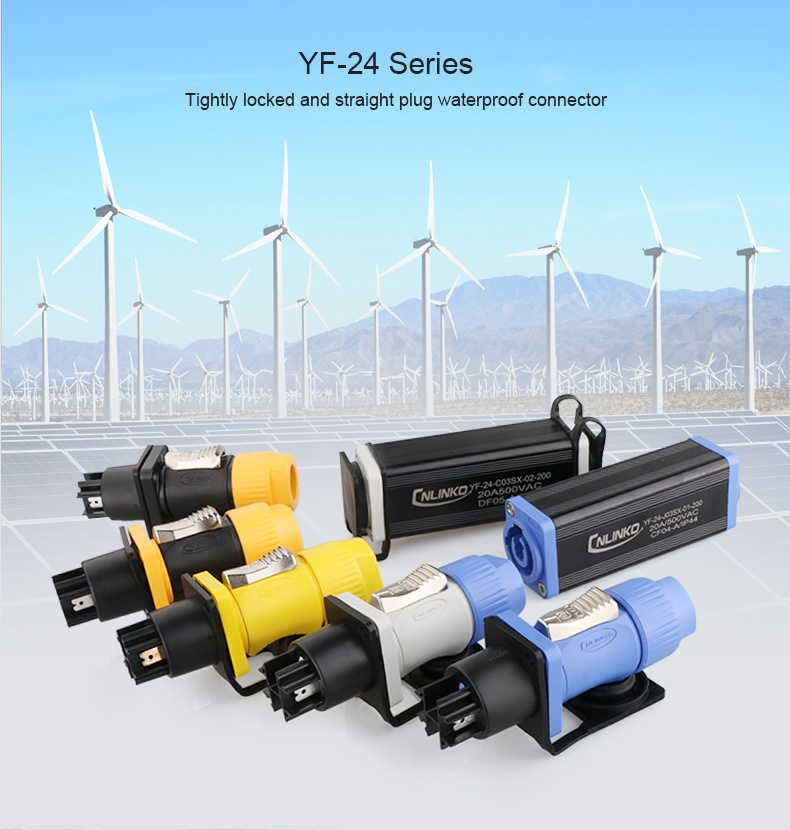

YF-24 Power connector, because of its unique latching locking bolt, which is easy to operate and with a unique blue/ gray separable power in and power our to distinguish input and output of device, also with a power converter to make conversion between the terminals and make it more flexibility. Widely be used in Audio, video and power equipment.

Features:

locking 3-pin connector of the device (middle, straight &pre-adaptation) - flexible;
Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contacts, high-strength corrosion resistance
electrical conductivity effectively deal with temperature rise.
silver-plated contact;
rated current: 20A;
3 PIN Plug and Socket Speaker Connector, Adapter Connector for Audio and DJ Equipments.

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	2.5mm² ~ 4mm² /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.0×3
Current rating(A)	20A
Temperature rise	20 A contact temperature below 30ºC 25 A contact temperature below 40ºC 30 A contact temperature below 50ºC
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<3mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C

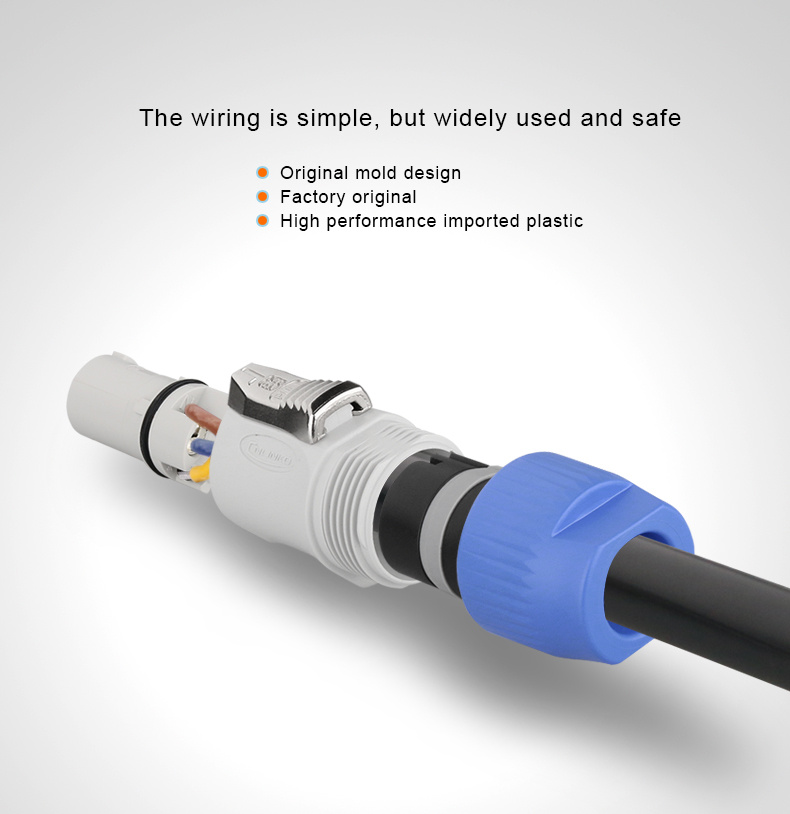

Method of connecting cable	Soldering/Crimping
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

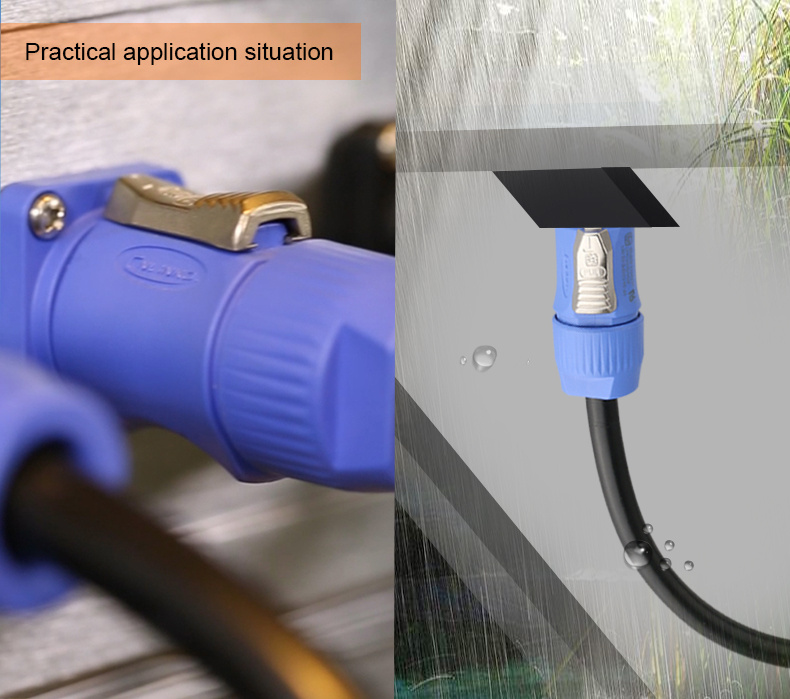

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
