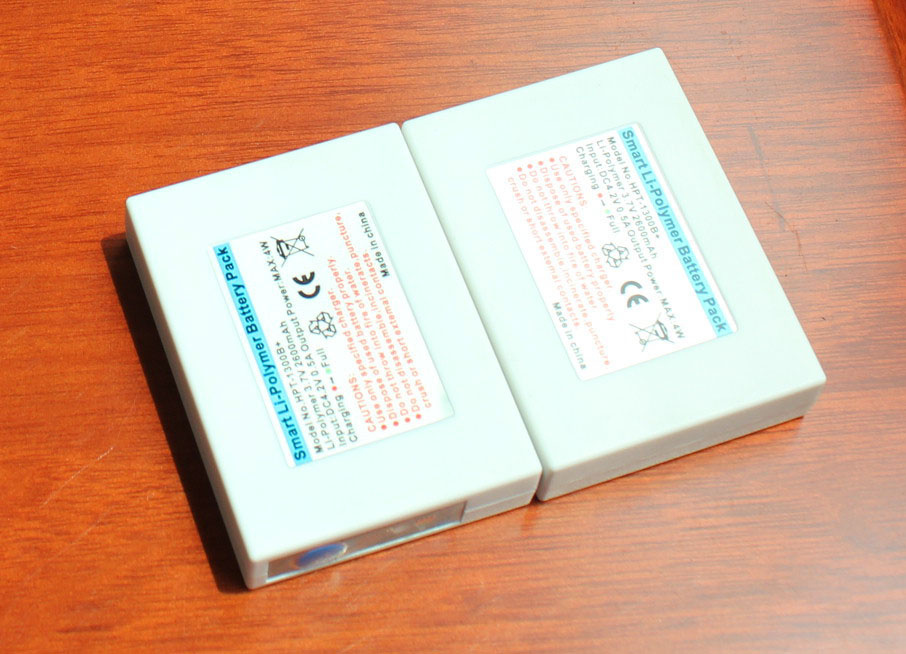

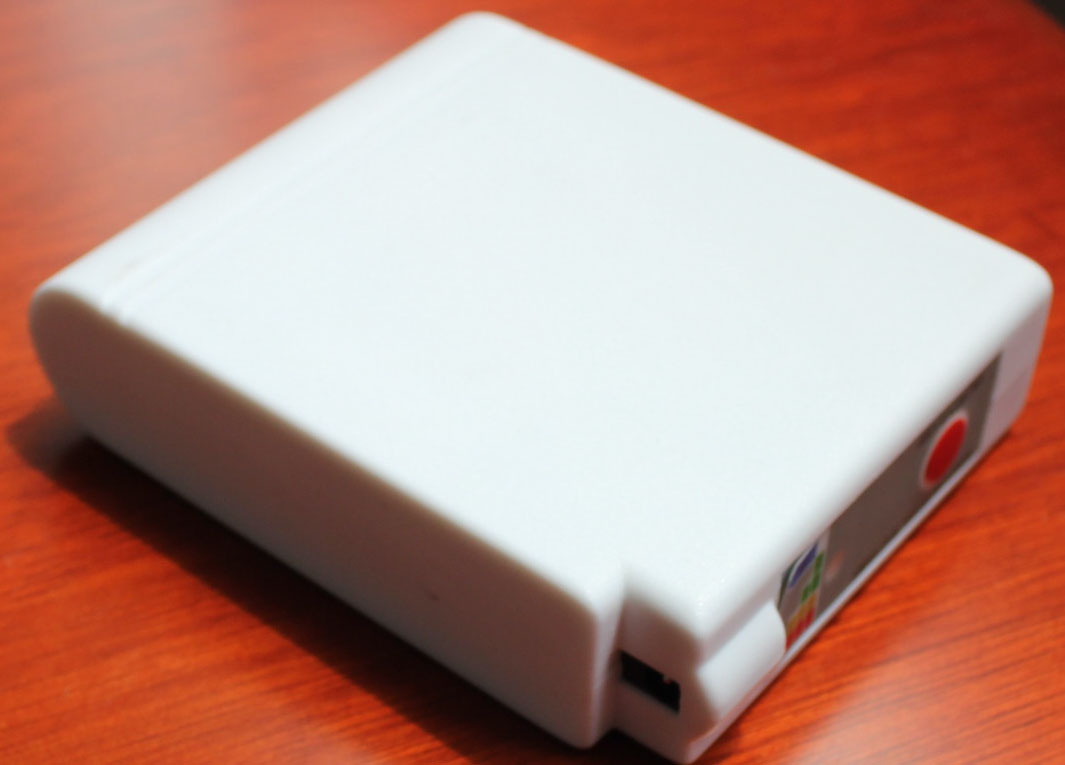

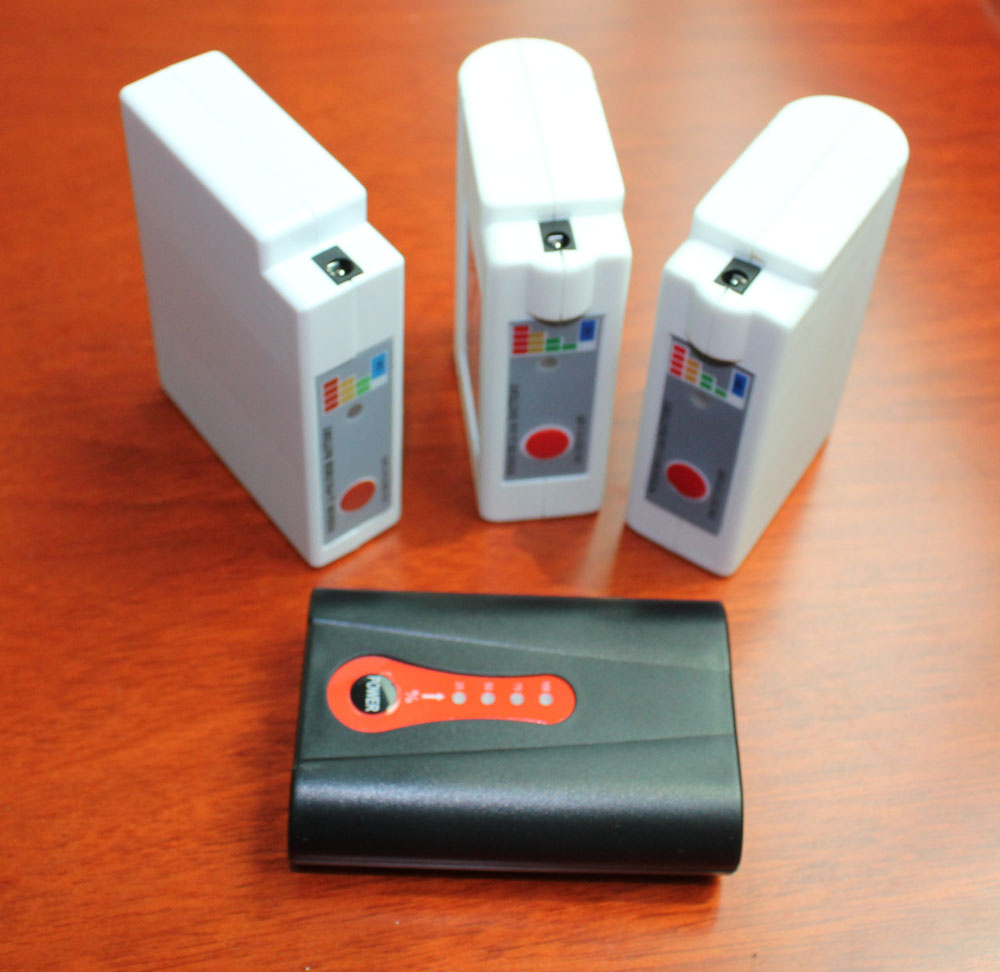

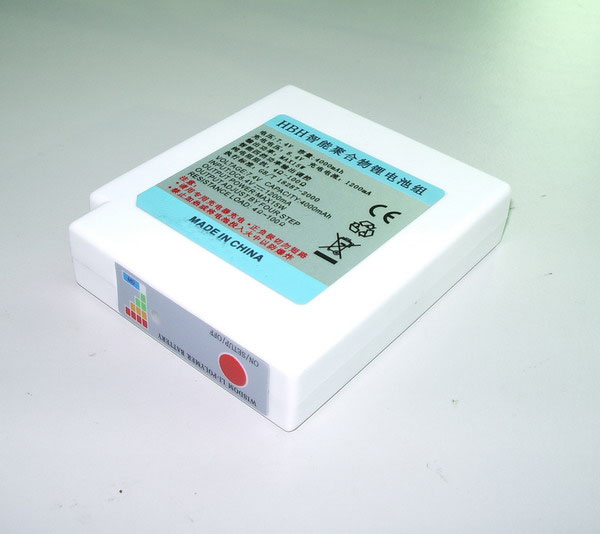

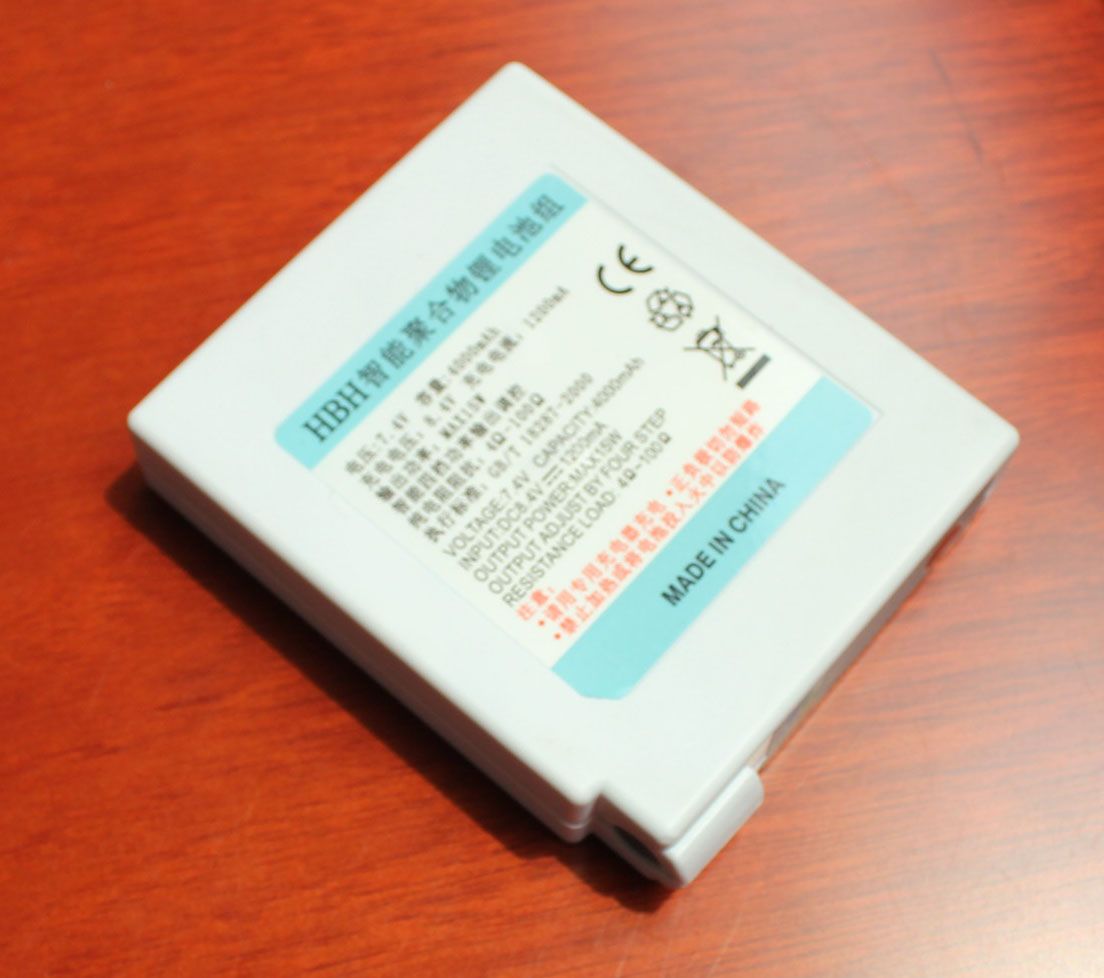

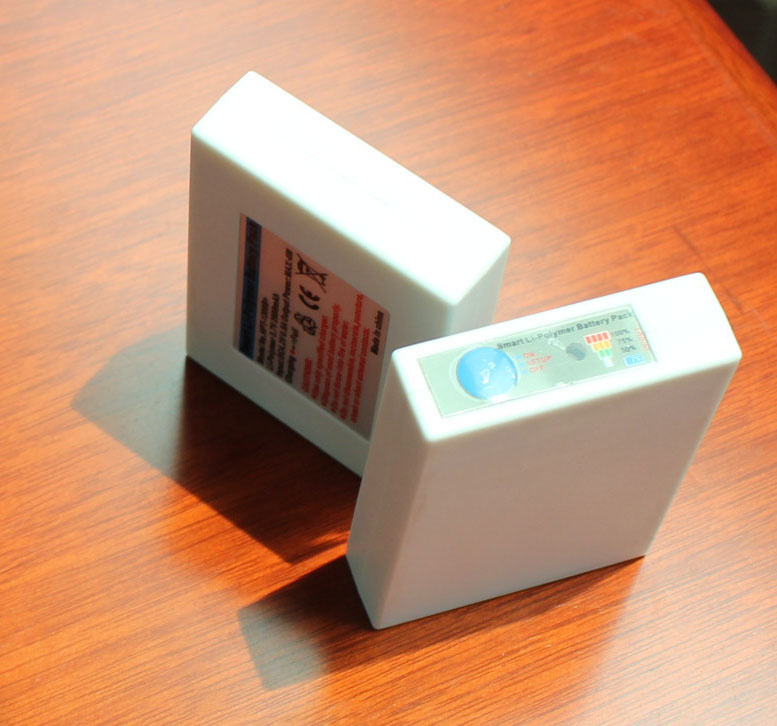

Lion Polymer Battery Controller for Heated Blankets 4400mah

Prod Model:	HBH-II
Type:	Lithium-Polymer Battery
Rechargeable:	Chargeable

Product Description

1. Smart lithium battery technology indicators; 1) voltage: 7.4V; 2) capacity: HBH- I type: 2200mah; HBH-II: 4400mah 3) charge voltage: 8.4-8.6V; 4)over-charged protection voltage: 8.6V; 5)over-discharged provides protection voltage; 6.0V 6) obvious charge current release: 1.0-1.2A; 7) work currents: <15mA; 8)everyone waiting currents: <: 0.5mA; 9) output: 15W MAX; 10)power output efficiency; ≥98; 11) current use pulse output; 12) Published load type and scope: Pure electric impedance, 4Ω-100Ω; Note: Do not take batteries / electrical / capacitance, and other load

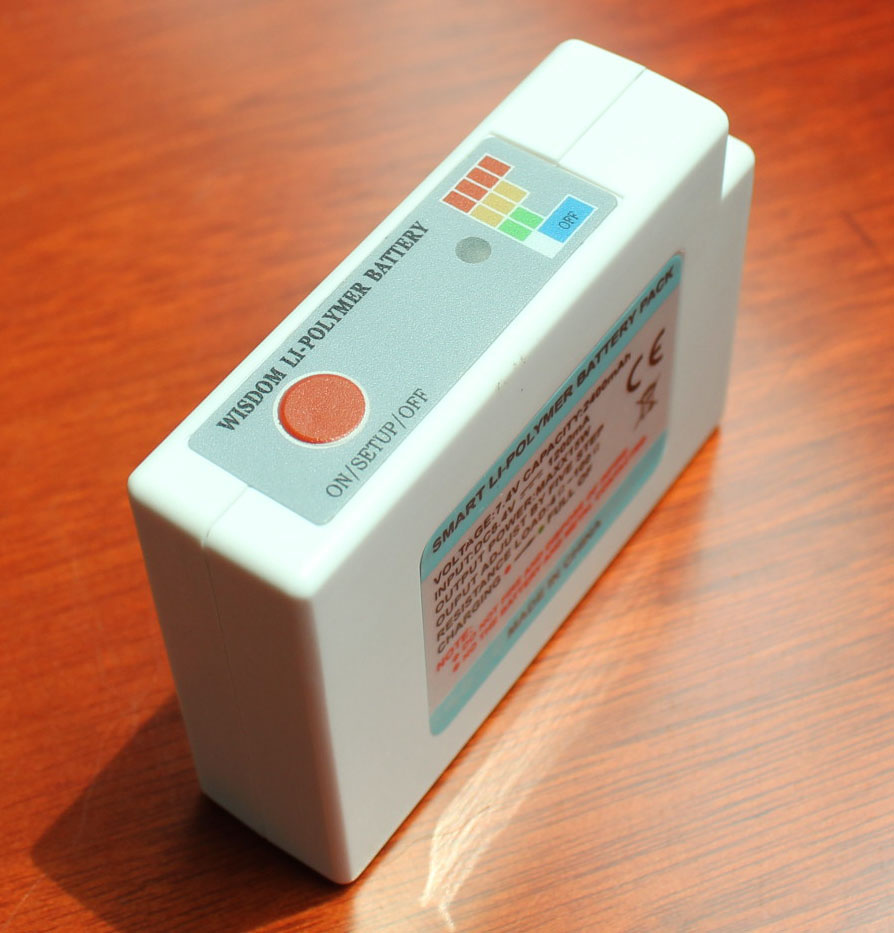

2. Wisdom lithium batteries five turned control: Constant power output, automatic thermostatic. 1)switch on the machine after the red button; LED shows: Battery power output again by the button; LED 100%; 2)shows orange; Battery power output 75%; 3) the button again; LED show green; Battery power output 50%; 4) again button:; , LED show green lights; Battery power output: 32%; 5) again button; LED closure: Export closed;
3. Smart lithium battery charging: Interface with dedicated 8.6V/1.2A lithium battery charging; Constant voltage output interface requirements; 8.4V; Export currents Hengliu; 1.2A; Hengliu, Hengya charging; Lithium batteries with electricity, and lithium battery charging interfaces red LED shows; Lithium batteries with electricity, interface and lithium battery charging LED shows green.
4. Discharge time and electrothermal films surface temperature: Load: Macromolecular carbon fibre infrared electrothermal films (resistance; 10 10Ω); Lithium battery discharge time and electrothermal films surface temperature below;
