Liquid Cooling Extrusion Heatsink for Switching Mode Power Supply/Source
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Aluminum Profiles |
| Cooling Way: |
Self-Cooling, Air-Cooling, Water-Cooling |
| Drilling: |
CNC Drilling |
| Lenght: |
Customerized or General |
| Width: |
Customerized or General |
| Power: |
High Power |
| Material: |
Aluminum Alloy 6063 |
| Certification: |
SGS, ISO9001:2008 |
Product Description
Product Description | Product Name | Liquid Cooling Extrusion Heatsink for Switching Mode Power Supply/Source |
| Product Catalogue | Tower-shape, Bamboo-shape, Dense teeth, Silicon Controlled Rectifier, General profiles, Combined profiles, Insert, Shovel, Heat tube, Liquid-cooling, LED lamps, Water-cooling casting, Non-standard special series and Auto special series. |
| Detailed Sizes | Customized/On Request |
| Production Process | Metal Extrusion, Cutting, CNC Processing, Milling, Drilling, Cleaning, Inspecting, etc. |
| Surface Treatment | Anodic Oxidation, Sand Blasting, Blackening, Polishing, etc. |
| Application | Welding Outfit, LED Lamps, Inverter, Communication Device, Power Supply Equipment, etc. |
| Packing | Foam, Carton, Wooden Box |
| Reference Standard | GB/T 14846-2008 |
| Experience | 31 Years Professional Manufacturing Experience |
| Trade Term | CIF, FOB, EXW, etc. |
| Payment Term | T/T, L/C |
| Delivery Time | Normally 7-15 working days after deposit received |

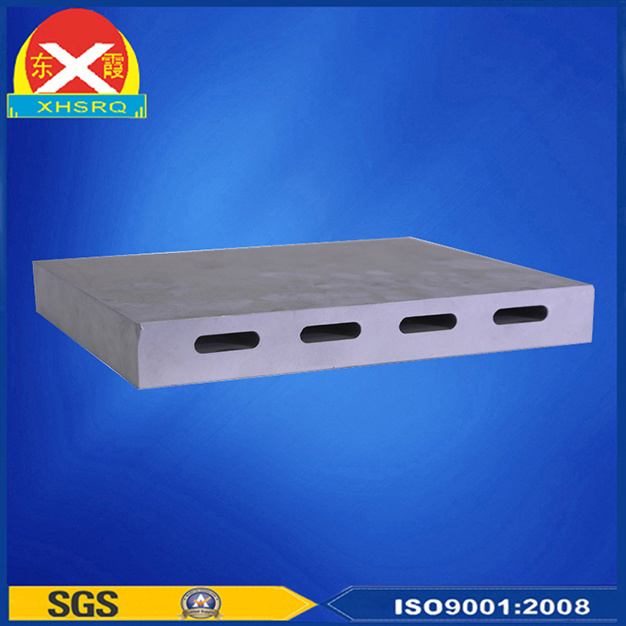

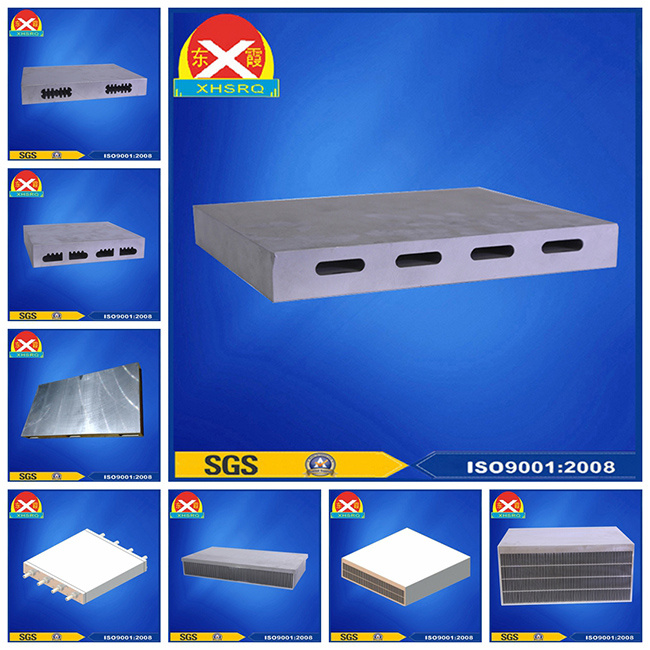

Product Photo

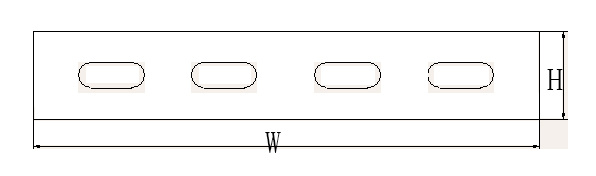

Heat Sink SpecificationSpecification of Water-Cooling Profiles Heat Sink (More sizes and other series are on request) | Water-Cooling Heat Sink |  |
| Part No. | W(mm) | H(mm) | Density(kg/m) |
| XHX822 | 300 | 36 | 26.3 |
| XHX972 | 312 | 60 | 30.5 |
| XHX819 | 300 | 36 | 22.8 |
| XHX1005 | 312 | 28 | 22.2 |
| XHX281 | 280 | 56 | 35.3 |
| XHX924 | 300 | 50 | 33 |
| XHX624 | 280 | 42 | 25.6 |
| XHX7 | 300 | 44 | 27.6 |
| XHX589 | 280 | 30 | 30 |
| XHX786 | 280 | 30 | 20.6 |
| XHX562 | 236 | 18.4 | |
| XHX724 | 260 | 48 | 24.8 |
| XHX787 | 225 | 30 | 15.2 |
| XHX561 | 240 | 52 | 30 |
| XHX8 | 220 | 44 | 27.6 |
| XHX877 | 240 | 42 | 23.3 |
| XHX489 | 200 | 36 | 17.4 |
| XHX545 | 150 | 42 | 16.8 |
| XHX506 | 146 | 65 | 20.1 |
| XHX923 | 132 | 50 | 13.6 |
| XHX544 | 120 | 32 | 9.7 |
| XHX1004 | 130 | 22 | 7.8 |
| XHX1000 | 80 | 23 | 6.6 |
| XHX699 | 240 | 32 | 18.8 |
| XHX706 | 300 | 22 | 16 |
| XHX1119 | 130 | 18 | 5.7 |
| XHX440 | 280 | 26 | 17.9 |
| XHX442 | 160 | 24 | 9.2 |
| XHX443 | 180 | 45 | 20.1 |
| XHX444 | 220 | 24 | 13.3 |
| XHX445 | 150 | 30 | 11.2 |
| XHX446 | 180 | 28 | 12.7 |
| XHX… | | | |
Parameters
| Weldability | Cutability | Corrosion Resistance | Conductivity | Density (20ºC)
g/cm3 |
| Good | Very Good | Good | 209 | 2.7 |
Tensile strength
(20ºC,MPa) | Yield Strength
(20ºC,MPa) | Hardness | Ductility
(1.6mm/16in) | Max Shearing Strength(MPa) |
| 185 | 145 | 60 | 12 | 115 |

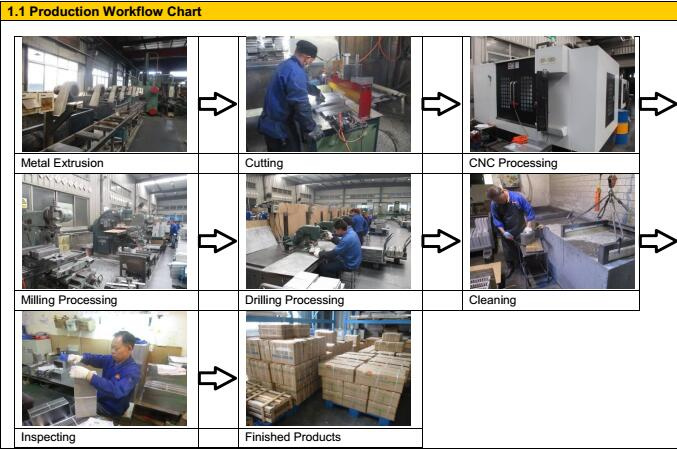

Production Process
Company Introduction Chengdu Xihe Radiator Factory
Chengdu Xihe Radiator Factory was built in the mid-1980s, construction area of more than 10,000 square
meters, specialized in manufacturing radiators(Heat Sink) for power semiconductor device, undertaking all
kinds of radiators' design, production and sales.
For a long time, Xihe radiator people always regard "Survive with quality, Effectiveness with security, Develop
with science and technology" as principles of running factory, has created many miracles one by one in the
relevant counterparts and played an important role for the using of Chinese electronic industry power components.
In order to meet the market demand, we established Chengdu Donghao Radiator Sales Co.,Ltd in July 2014.
Hope to service for our customers better.

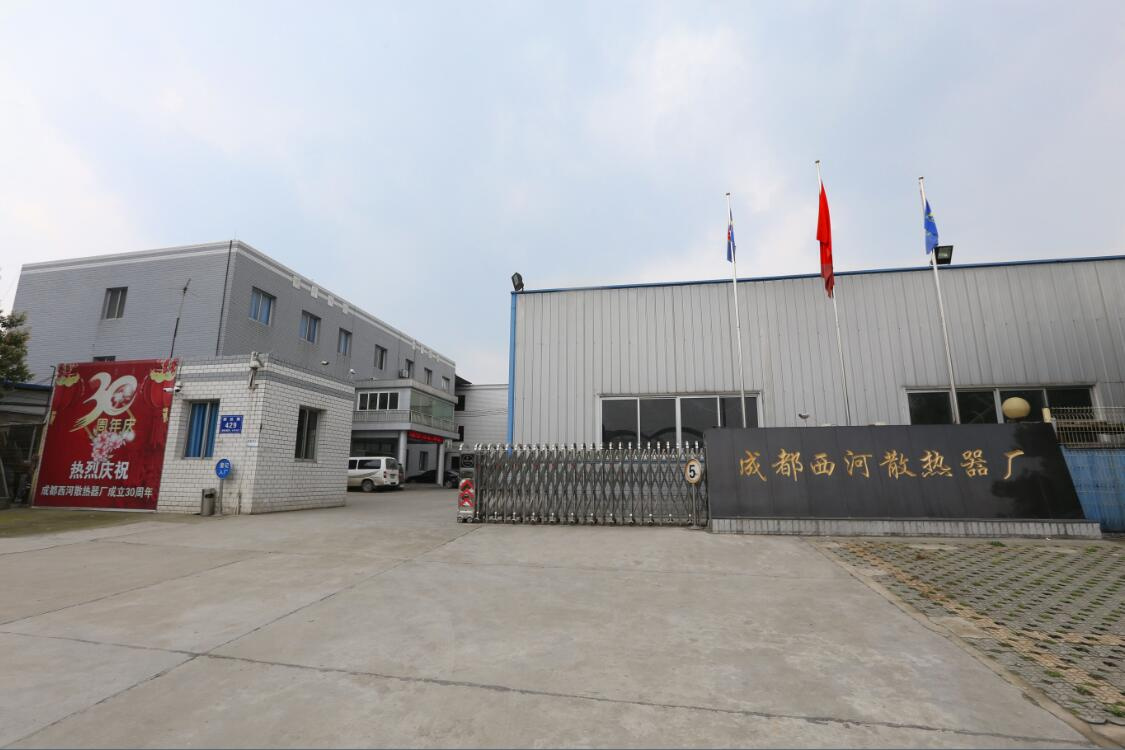

Company Gate
Show Room
Team Building
FAQ1. Are you a trading company or manufacturer ?
We are a manufacturer/factory over 30 years wellknown in China.2. What kind of industries your heat sinks are used in ? Welding Outfit, Power Supply Equipment/Charger, LED Lamps, Inverter, SVG & APF Radiator, New Energy Car, etc.3. How to guarantee your product quality ? We have strict quality control and management system to guarantee our products, including products' pre-production confirmation, in-production control and after-production inspection. Also we accept customer test and the Third-party test.4. How about visiting your factory ? Yes, all partners and customers are welcomed to visit our factory. ContactTel: +86 28 88467530 84830346
Fax: +86 28 84821161
Web: www.xhsrq.com
Add: No.429 Luosi Road, Xihe Industrial Park, Longquanyi District, Chengdu City, Sichuan Province, China, 610107
Chengdu Xihe Heatsink Factory is established in MID-eighties, located in Xihe Industrial Zone, Chengdu city, covering an area of 10000m2. We are specialized in producing radiators used in semiconductor, such as welding machine, LED, APF and so on. Our factory has established a full range of business scope, including R&D, manufacture, sale and service, so we can provide customized products.
These years, we always believe that quality, safety and technology are the most important for us. Our target is to be the first. We created many miracles these years and play important part in high-power component of electronic element in our country. Currently, we are in the leading position of the radiators, and we can produce at least 4000 tons radiators per year.
At present, XHSRQ have become the leading domestic counterparts, and created the domestic counterparts, " Nine of the most":
1, Design ability is the strongest.
2, The quatity of machining equipments is the most.
3, Extrusion equipments are the most advanced.
4, Welding equipments are the most advanced. (No welding accessories)
5, Processing size is the widest at one time. (800mm)
6, Extruded perimeter is the longest at one time. (14, 000mm)
7, The quantity of new products is the most. (Several Hundreds)
8, Solo product power is the biggest. (Wind-Cooling heat sink 10, 000W, Liquid-Cooling heat sink 30, 000W, Thermostatic water-cooling heat sink 200, 000W)
9, Testing equipment is the best (Wind-resistant and heat-resistant curve testing machines), with the ability of manufacturing heat sinks more than 3, 000 tons annually.
Our company applies K3 and CRM system to the management, and all of the products we manufactured has accredited with ISO9001: 2008 quality management system certification, and attained the domestic CQGC(China Light Industry Products Quality Guarantee Centre) certification. Our products conclude following types: New combined heat sink, combined heat sink, tower-shaped heat sink, dense tooth heat sink, inserted tooth heat sink, hot-pipe heat sink, LED rheat sink, new-energy heat sink, APF heat sink and so on.
