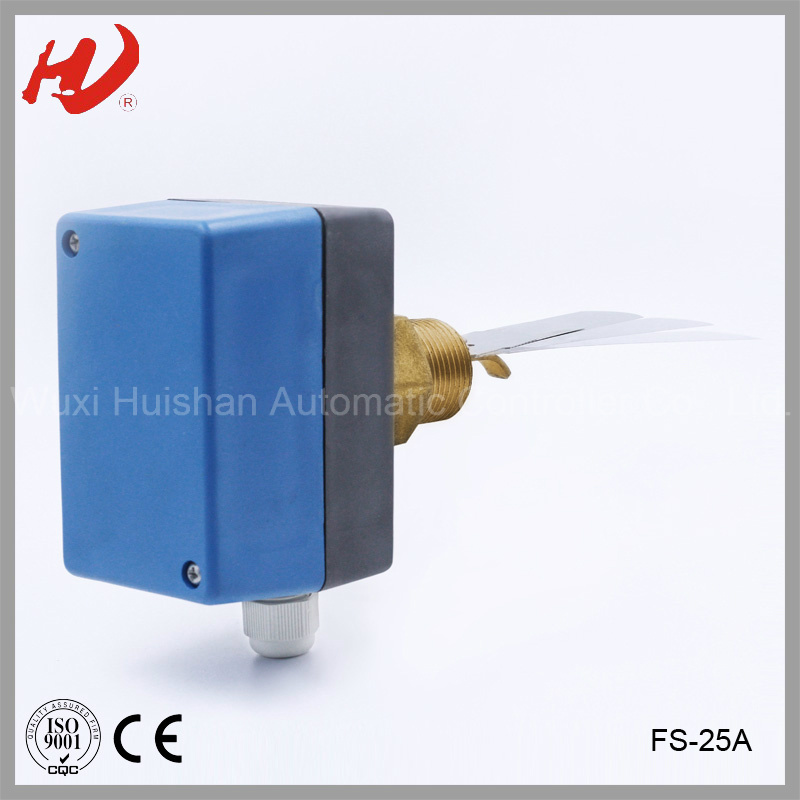

Liquid Flow Switch

Liquid Flow Switch
Price: US $ 16-17.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: FS-25A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Paddle Material: Stainless Steel
Rod: Brass
Protection Level: IP65
Enclosure: ABS Flame Retardant
Certification: CE
Control Type: Mechanical
Type: Temperature Controller
Material: Copper
Display Type: No

Product Description

Measuring the liquid flow rate in the heating or cooling system.


Specifications
ModelFS-25A
Ambient-40`90 ºC
Media-20`150 ºC
Current16(6) A
Voltage250 V/AC
Housiing dimension133x70x70 mm
Packing20 pcs/CTN
G.W.15 KG/CTN

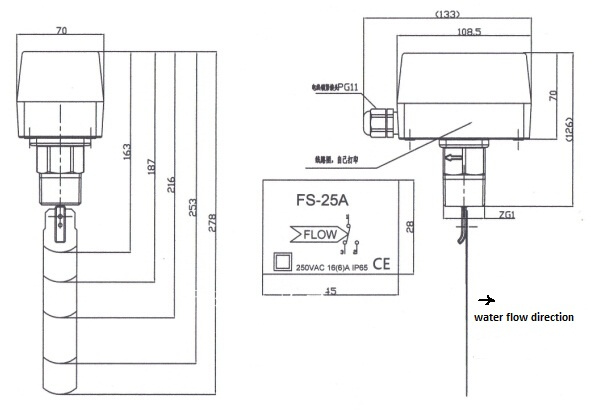

Dimension



Payment terms

SamplesPaypal


Western Union
Orders30% T/T in deposit, balance against B/L copy


Irrevocable L/C at sight


Company information


FAQ

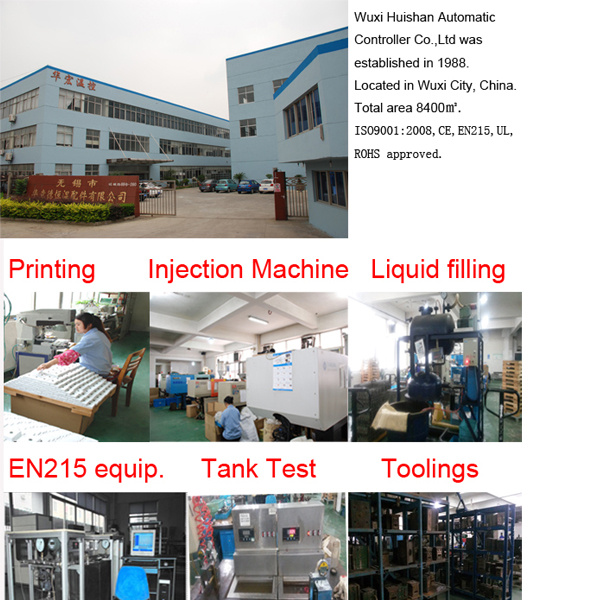

Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
