Liquid Fluid Water Level Controller Sensor Hx15-2 Cable Float Switch

Name: Liquid Fluid Water Level Controller Sensor Hx15-2 Cable Float Switch
Brand: all-electronics-online.com
SKU: 797944665
Availability: InStock
Rating: 4.9 (131 reviews)

Price:	US $ 1.67-2.9/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HX15-2
Cable Spec:	4A/220VAC
Pressure:	2 Kg/Cm2
Operating Temperature:	0-60c
Flow Rate:	>=100.000 Times
Material:	Ppc
Type:	Float Type Level Switch

Product Description

Liquid Fluid Water Level Controller Sensor HX15-2 Cable Float Switch

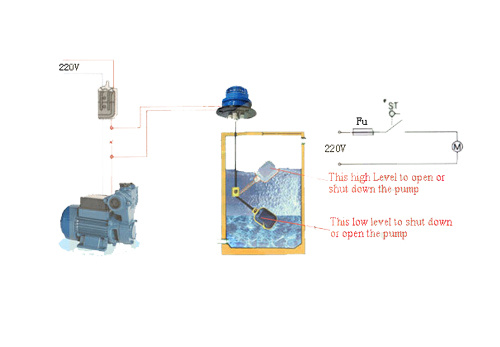

This water pump float switch is widely used to control the liquid level. Our float switch quality is stable, safe, and pass CE approval.Flaot Switch's operation voltage is 220vac, and current can be up to 15A. Applies to branch water,sewage,aid-base solution and oil.

float switch make use of mercury switch as contact component. When liquid lift up to contact float, the float will have variable angles. The switch will have ON or OFF contact signal output when the angle is larger than 10 Degree.

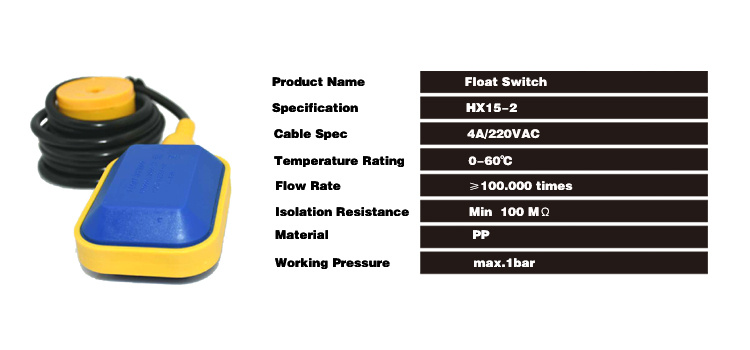

Technical Parameters of Liquid Fluid Water Level Controller Sensor HX15-2 Cable Float Switch

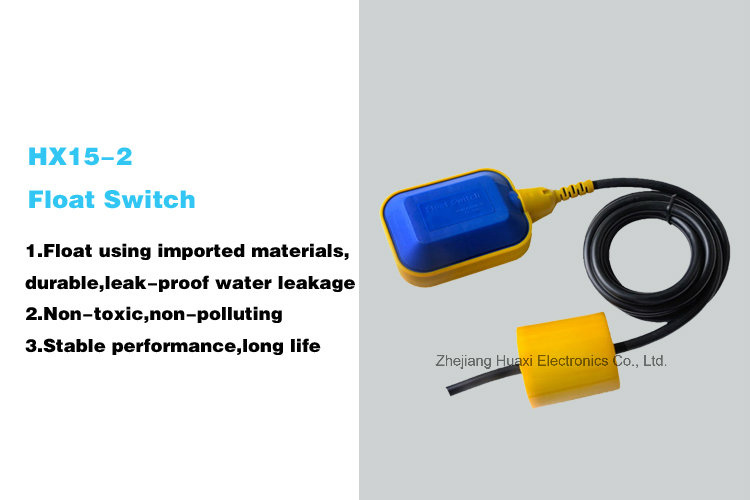

Photo of Liquid Fluid Water Level Controller Sensor HX15-2 Cable Float Switch

Futere of Liquid Fluid Water Level Controller Sensor HX15-2 Cable Float Switch

1.Insert the cable in the counterweight.From the conical part and rotate it .Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver).The ring should then be positioned in the point where it is desired to book the counterweight.

2.Force the counterweight on the ring by rotating it,using a slight pressure.

THE COUNTER WEIGHT IS FURNISHED ONLY ON REQUEST.AVOID JOINTS IN THE LEVEL REGULATOR CABLE.NEVER IMMERGE POSSIBLE CABLE JOINTS IN THE WATER.
