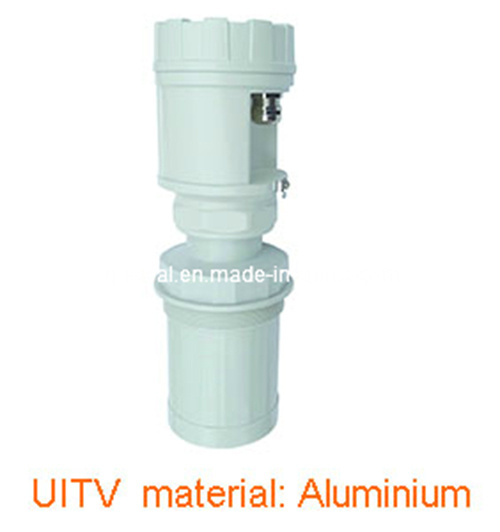

Liquid Level Gages-Ultrasonic Level Meter-Aluminium Shell 10m
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
Ultrasonic Level Meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal: |
4~20mA |
| Digital: |
RS485, RS232 Output |
| Shape: |
Have Split Type and All in One Type |
| Level Control: |
Can with Level Switches, High Level, Hh, L, Ll |
| Protection Class: |
IP68, IP67 |
| Installation: |
Overhead Rack Mounting, Flange or Wall Hung Type |
| Power Supply: |
220VAC+-15%, 24VDC, 12VDC |
| Accuracy: |
0.25%~0.5% |
| Resolution: |
1mm, 3mm, 0.1% |
| Material: |
ABS, Aluminium Shell |
Product Description
Ultrasonic Level Meter, ultrasound water level meter, split ultrasonic level meter, ultrasound oil level meter
2-wire ultrasonic level meter, 3wire ultrasonic level meter, 4wire ultrasonic level meter
Tianjin U-ideal Instrument Co., Ltd - China manufacture-China suppliers of Ultrasonic level gauge Liquids solids EX Tanks PVDF / PP 4-20 Modbus
Ultrasonic Level Meter, ultrasound water level meter, ultrasonic gas level meter, ultrasound oil level meter
Output 4~20mA, can be with RS485, RS232 digital output, can be with level switches, have all-in-one type and split type ultrasonic level meter.
Ultrasonic Level Meter, ultrasound water level meter, ultrasonic gas level meter, ultrasound oil level meter
The ultrasonics testing and measuring equipments are making an special evalutation to the working conditions of the utrasonic processors and appliance, directly showing key performance dates for us to judge and adjust. All for maximum using ultrasonic high power technology.
U-ideal Ultrasonics could offer various ultrasonic measuring equipments for our clients' choice, including:
1. Ultrasonic Flow Meter;
2. Ultrasonic Liquid Level Meter;
3. Other Ultrasonic Testing and Measuring Equipments;
Remark: According to the customer requirements and actual conditions, we are ability to provide our valuable customers with full set of ultrasonic solution plan, like ultrasonic application project feasibility analysis, structure design, system configuration and fully processor production.
Please Contact Us if any interesting and enquire about our
Ultrasonic Testing and Measuring Equipments
1. Introduction:
The Ultrasonic Level Measurement is mounted on top of the vessel. Under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. From the emission of the ultrasonic wave to the new reception, the time is direct proportion to the distance from the probe to the measured medium. The electronic unit detects the time and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam, open channel, difference between levels etc.
2. Technical Parameter:
| Product Name | ultrasonic liquid level meter |
| Measuring Range | 2~8m(liquid); 1~4m(solid) |
| Blind Area | 0.2~0.25m |
| Precision | 0.2% of the full measuring range(in the air) |
| Display Resolution | 1cm |
| Current Output | 4~20mA |
| Output Resolution | 0.03% of full measuring range |
| Output Load | 0~600Ω |
| Relay Specification | 5A 250VAC/30VDC |
| Parameter Set | 3 sensing buttons |
| Medium Temp | -45°C~ 75°C |
| Detecting Period | 1 S |
| Installation | thread |
| Acousticwave Beam Angle | 8°(3db) |
| Pressure Range | ±0.3MP |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
