| Prod Model: |
QST-202 |
| Pressure Type: |
Gauge |
| Marking: |
Exiaiict6 |
| Signal Output: |
2 Wires. 3 Wires |
| Display: |
LED |
| Product Name: |
Lquid Level Pressure Transducer Meter |
Product Description

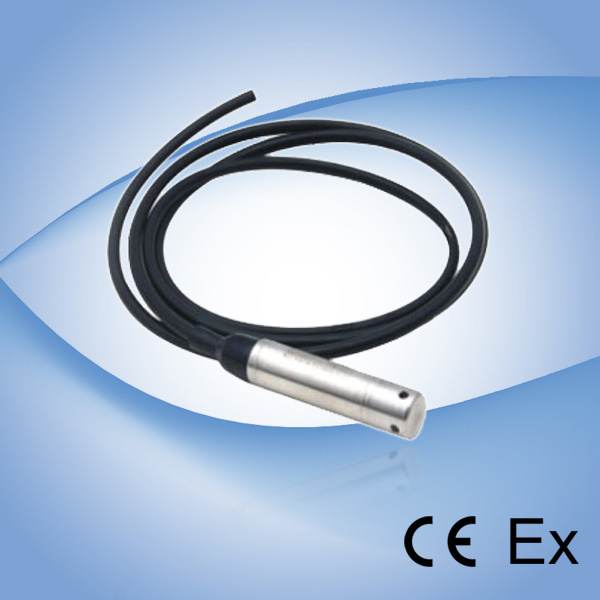

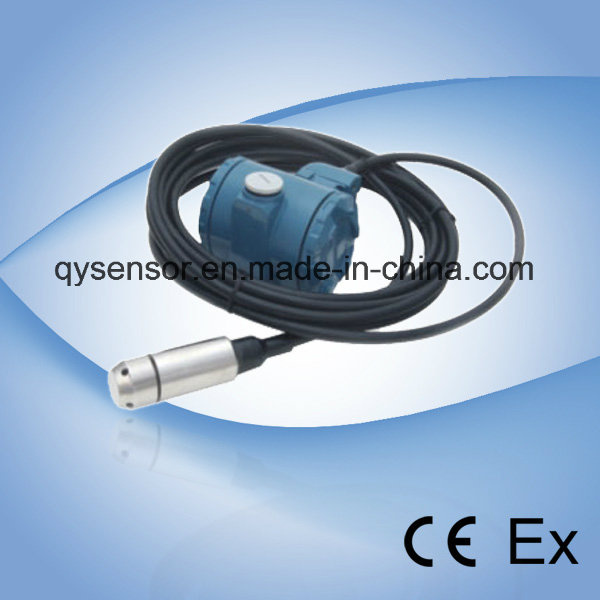

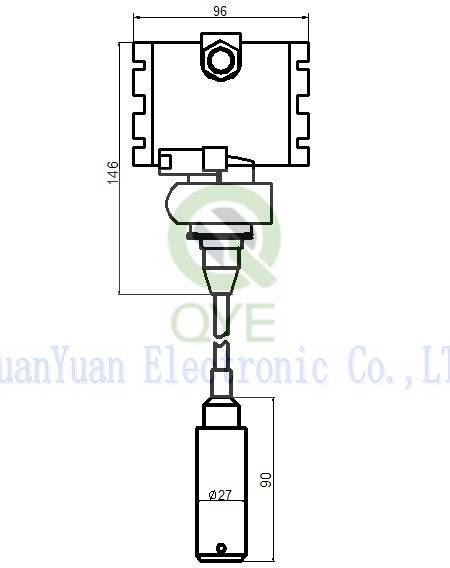

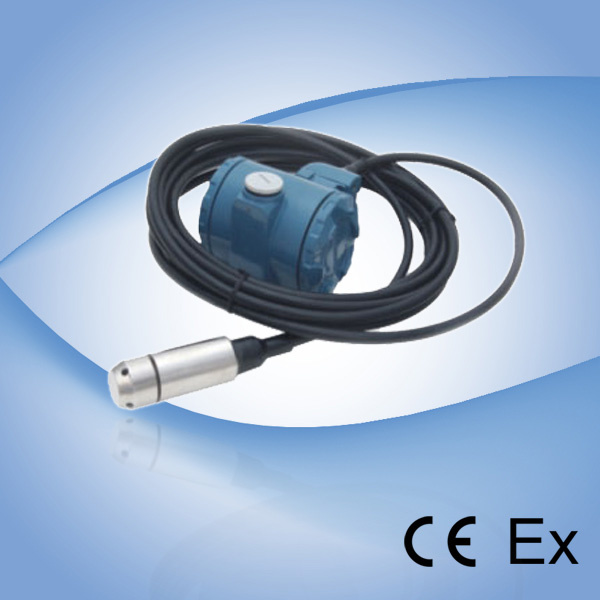

QST-202 Lquid Level Pressure Transducer Meterliquid level transmitters are consisting of well-sealed immerging oil-filled liquid level transducers and special circuit for manometers. Have characteristics of high precision, good stability, long life and easy to fix. Adopt special sealed configuration, so with good capability of anti-leakage.According the relation between pressure, density and liquid level, the liquid level transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard 4~20mA current signal(or standard voltage signal).Feature: Wide measurement rangeSealed structure: IP68.Various output signalCE Certificate Marking : ExiaIICT6Integrated construction, LED display can be choosing.Dimensions: (unit: mm)
Technical Specifications| Measuring media | Liquid which are compatible to 316L stainless steel |
| Measuring range | mH2O | 0~0.6,0~1,0~2,0~5,0~10,0~20,0~30, |
| 0~50,0~100,0~150,0~200 |
| Overload pressure | %FS | 150 |
| Signal output | transmitter, mA (2 wires) | 4~20mA |
| transmitter, Vdc (3 wires) | 0~5V, 1~5V, 0~10V, 0~20mA |
| Power supply | Vdc | 12~36(Standard 24Vdc) |
| Static accuracy | %FS | ±0.1, ±0.25(Standard) |
| Zero adjustment | %FS | ≤±0.25 |
| Span adjustment | %FS | ≤±0.25 |
| Long-term stability | <±0.1%FS/year (>20mH2O ) ±10mm ( ≤20mH2O ) |
| Response time | ms | <2 |
| Storage temp. | ºC | -40~+100 |
| Operation temp. | ºC | -20~+80 |
| Compensated temp. | ºC | -10~+60 |
| Temp. coefficient of ZERO | %FS/10ºC | ≤0.2 |
| Temp. coefficient of SPAN | %FS/10ºC | ≤0.2 |
| Insulation resistance | M Ω | ≥500 @ 100 Vdc |
| Load resistance | current output, Ohm | 250~1100 |
| voltage output, Ohm | >5000 |
| Environmental protection | IP rating | IP 68 |
| pressure memberane material | 316L Stainless steel |
| Electrical connector material | Cast aluminum |
| Material for housing | Stainless steel(1Cr18Ni9Ti) |
| Electrical connection | connector/cable | 4-core,7.6 mm shielded cable with vent pipe which is mechanically strong enough for deep submersible liquid level measurements |
Level Pressure Transmitter Series:
Packaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
