Liquid Level Relay(HHY1P, HHY1G)

Name: Liquid Level Relay(HHY1P, HHY1G)
Brand: all-electronics-online.com
SKU: 729763072
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 3.92-4.7/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHY1P, HHY1G
Working Power:	AC24V, 220V, 380V
Water Control Distance:	Less Than or Equal to 100m
Contact Form:	1 Group No+Nc Contact
Contact Capacity:	3A AC220V(Resistance)
Outline Dimension:	624092mm
Installation Mode:	Device Type and 35mm Guide Rail

Product Description

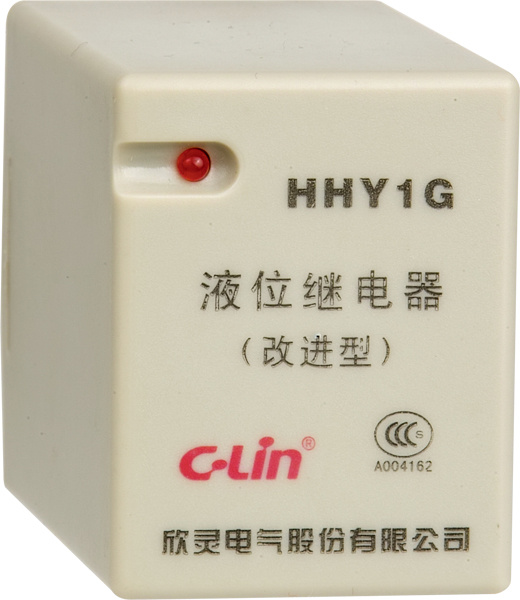

HHY1G, HHY1P Liquid Level Relay

General Introduction

HHY Series Liquid Level Relay / Liquid Level Relay / Floatless Level Relay can be used as the liquid level control component in the circuit of 50Hz alternating current, 380V or below 380V rated voltage.
Connecting or breaking pump controlled circuit according to the requirements, water can be supplied or drained automatically.
HHY Series Liquid Level Relays are widely used in the automatic control between water towers and wells.

Technical Specification

Product name	Liquid Level Relay
Model numeber	HHY1G(JYB-3),HHY1P(JYB-2)
Working power	AC24V, 220V, 380V
Working mode	HHY1P(JYB-2): Water drain type
	HHY1G(JYB-3): Water supply type
Water control distance	less than or equal to 100meters
Contact form	one group normally open normally close contact
Contact capacity	3A AC220V(resistance)
Overall dimension	624092mm
Installation	35mm guide rail and matching outlet style

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
