Liquid Silicone Rubber Cold Shrink End Caps

Liquid Silicone Rubber Cold Shrink End Caps
Price: Negotiable/Piece
Min Order: 10000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SB-WCSEC
Application: Switch Baseplate
Type: Insulation Sleeve
Chemistry: Hybrid Insulation
Material: Plastic
Thermal Rating: 220 220
Maximum Voltage: <10KV
Color: Clear,Black, Color
Brand: Sunbow

Product Description

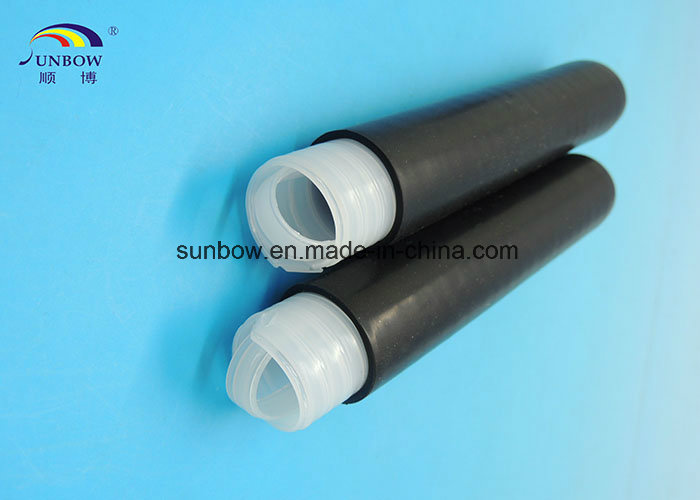

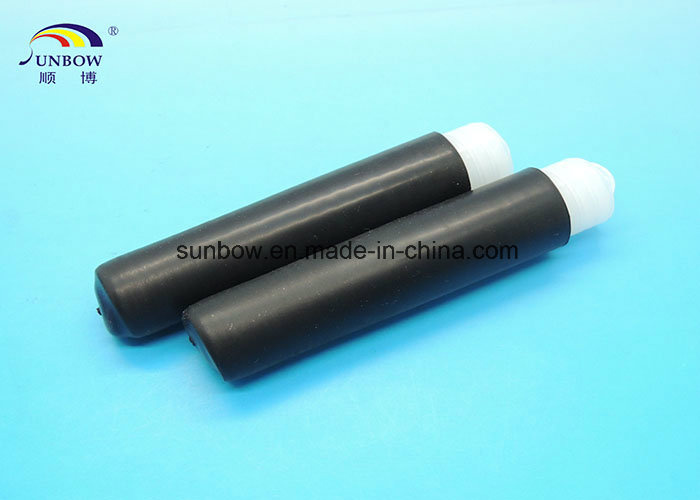

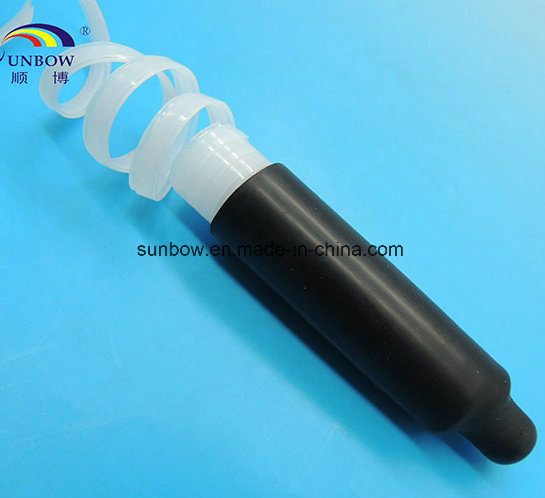

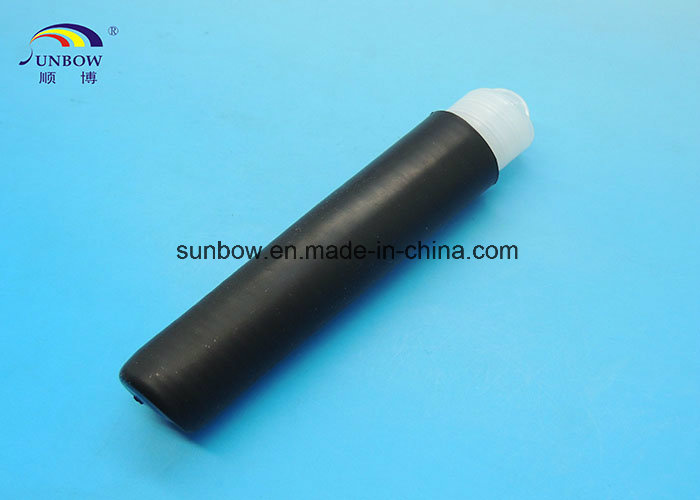

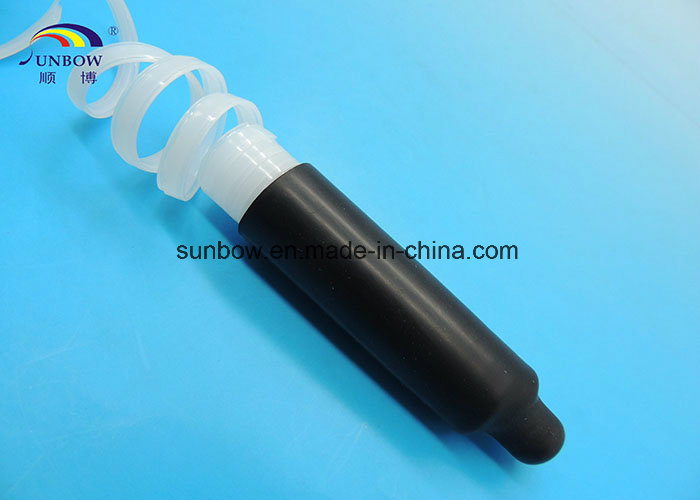

Liquid Silicone Rubber Cold Shrink End Caps

Model Number: SB-WCSEC



Description

Cold shrink end caps are made of EPDM rubber, can meet a variety of configuration requirements. Offering sealing protection over multi-core

cable ends. Used to seal cable during installation or storage, protecting cable ends.



Usage

Cold Shrink End Caps protect cables, pipes and other cylindrical objects from exposure to moisture, contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards.



Characteristics



Dimension

ID as Supplied

(Min) (mm)

ID after Recovered

(Max) /mm

Wall Thickness after

Recovered (±0.1mm)

Application

Range (mm)

Length(mm)

Ø20

12

2.5

Ø13- Ø16

70±5

Ø28

16

2.5

Ø18- Ø24

70±5

Ø47

23

2.6

Ø25- Ø38

70±5

Ø80

46

2.6

Ø48- Ø70

70±5



Technical Data

Property

Test Method

 Standard Value

300% Modulus

ASTM D-412-75

4.2MPa

Ultimate Tensile

ASTM D-412-75

10.05MPa

Ultimate Elongation

ASTM D-412-75

600%

Tear strength

ASTM D-624C-73

28.3KN/m

Fungus Resistance

ASTM G-21

28 days exposure No Growth

Moisture Absorption 7 days@ 90ºC in H2O



3.0% wt. Gain
