Liquid Water Heater Flow Sensor

Liquid Water Heater Flow Sensor
Price: US $ 5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: WFS-P12R-M16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium: Drinking Water
Max.Fluid Pressure: 1.75MPa
Connection: M16
Material: Nylon

Product Description

 liquid water heater flow sensor
it is mounted at the inlet end of the heater,for detecting water flow.
when the flow of water goes through the rotor,the Hall sensor outputs a pulse signal.

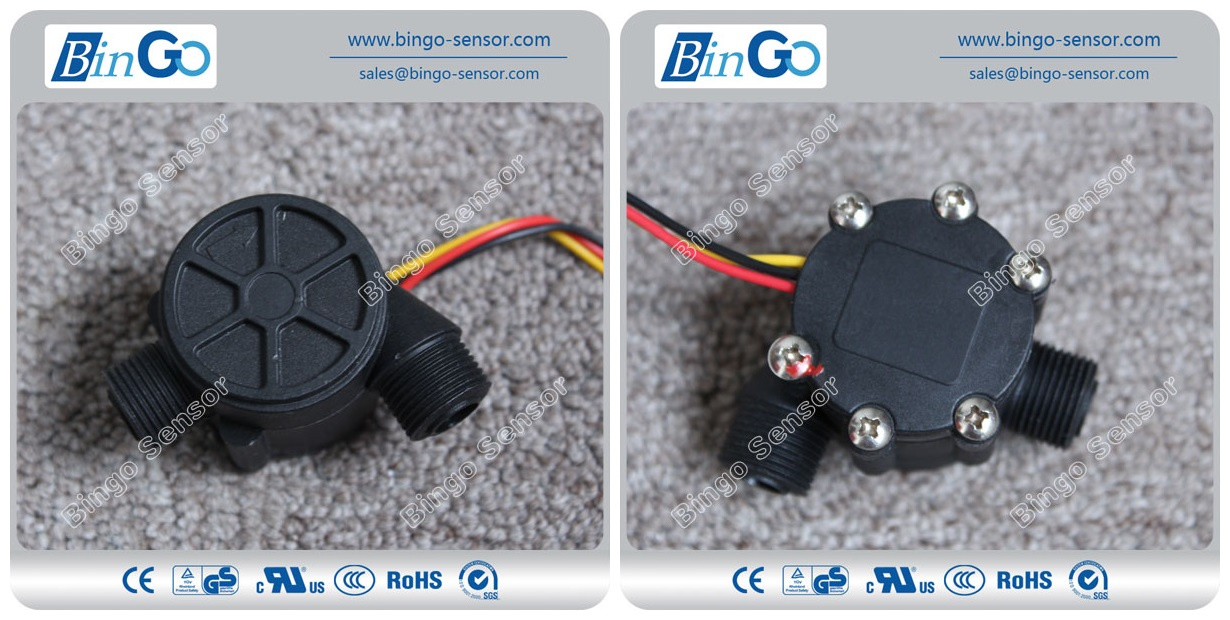

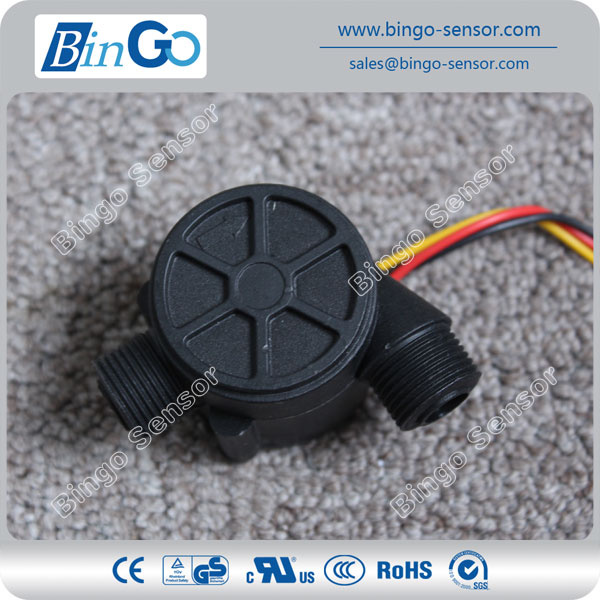

Product Show
Specification

ModelWFS-P12R-M16
MaterialNylon±Glass fiber
MediumDrinking water,≤60ºC
Flow rate0.5-25L/min
ConnectionM16
Max.fluid pressure1.75Mpa
Electrical rate
DC4.5-18V (Rated DC5V,≤10mA);
(DC24V or 10μA can be customized)
Insulation resistance>100MΩ
Output signalRated DC5V,high level≥4.3V,low level≤0.5V
Pulse duty cycle50%
Flow rate pulse characterF=16*Q(L/min),±10%
Wiring harness spec.and length can be customized

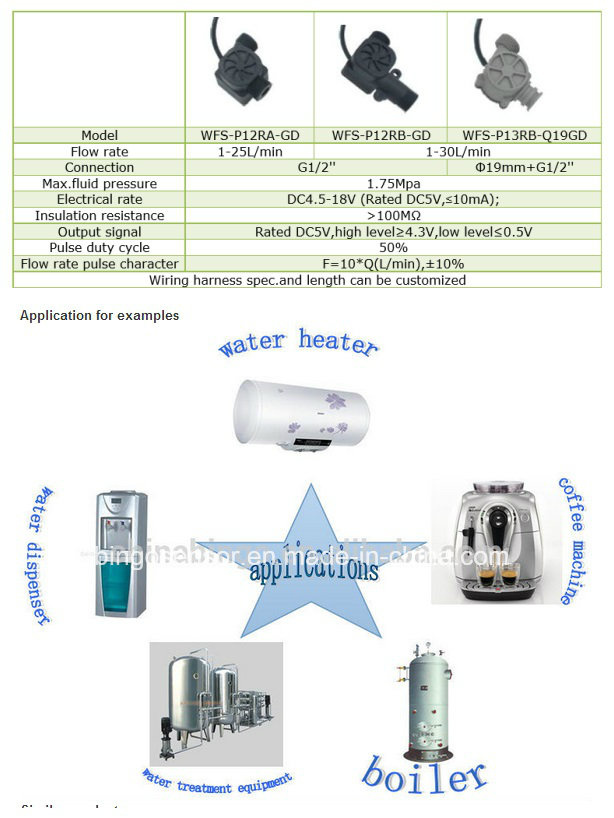

Other Type
