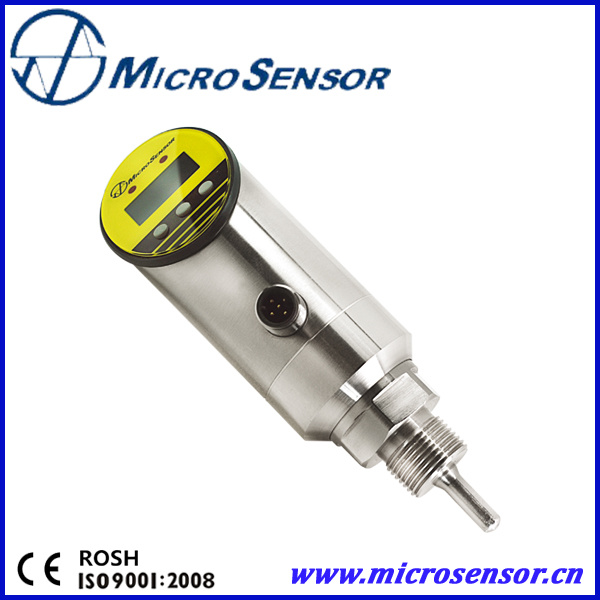

Liquids Intelligent Temperature Switch MTM5581
Features
1. For gas and liquid
2. Optional for PNP , voltage and current output
3. Intelligent
4. Peak value display
5. Ranges drift function
6. PNP switch point setting, time delay setting for action
7. Modbus communication
8. OLED display
9. Environment reference temperature display
10. Display rotate 180o
11. Body rotate 330o
12. Change-over of different units: ºC or ºF
Specifications
Range: -50ºC~200ºC(-58ºF~392ºF)
Range drift: 25%FS~100%FS
Accuracy: ±1.0ºC(±2.0ºF)
Resolution: 0.1ºC
Power supply: 12V~30VDC
Sealing: PTFE gasket
Thermal drift:±0.15%/10K
Response: about 20s | Outputs:
1 switch: 1×PNP
2 switches: 2×PNP
1 switch + voltage output: 1×PNP + 0V~5VDC/10VDC
2 switches + voltage output: 2×PNP + 0V~5VDC/10VDC
1 switch + current output: 1×PNP + 0mA/4mA~20mADC
2 switches + current output: 2×PNP + 0mA/4mA~20mADC
Switch current: Max.1.2A
Switch reaction: <10ms
Switch time delay: 0.0s~750.0s
Switch action pattern: Hys. Mode / Win. Mode |
Note: MS701 Communication adaptor shall be used to realize Modbus Communication function.
Screen display: Blue 128×64 OLED
Switch display: 2 red LED
Display units: ºCºF
Key: 3 silicone rubber keys, please operate according to instructions on the screen.
Main screen: measured media temperature
Sub screen: environment temperature
Peak display: Temperature peak in process | Media Temperature: -50ºC~200ºC
Environment Temperature: -25ºC~70ºC
Storage Temperature: -40ºC~80ºC
Relative Humidity: 0%RH~85%RH
EMC: GB/T 17626.2/3/4-2006
Shock:≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Impact: ≤50g/11ms(IEC 60068-2-27-2008)
Protection: IP65 |
Pipe and housing: SS
Contact media material: SS
Display board: PMMA
Sealing: PTFE gasket
Sensing element: PT100
Electric connection: M12×1 round plug
Pressure connection: M20x1.5male
Gross weight: 300g (integrated)
580g (separated) |
|
Order guide:
| MTM5581 | Intelligent Temperature Switch (-50ºC~200ºC) |
| Code | Construction |
| Null | Integrated construction |
| F | Separated construction |
| Code | Output |
| 1K | 1×PNP |
| 2K | 2×PNP |
| 1KV | 1×PNP+0V~5/10VDC |
| 2KV | 2×PNP+0V~5/10VDC |
| 1KA | 1×PNP+0/4mA~20mADC |
| 2KA | 2×PNP+0/4mA~20mADC |
| Code | Thread |
| C1 | M20x1.5 male |
| C3 | G1/2 male |
| Code | Probe length |
| L | L: 20mm~300mm |
| Code | Others |
| R5 | 5-pin M12X1 male plug |
| R8 | 8-pin M12X1 male plug for Modbus communication |
| MTM5581 | F | 1KA | C1 | 20 | R5 | ←the whole spec. |
