Lithium Battery 200ah 12V Rechargeable Battery Pack

Name: Lithium Battery 200ah 12V Rechargeable Battery Pack
Brand: all-electronics-online.com
SKU: 716925415
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 1-500/Piece
Trade Terms:	FOB,CIF,DDP
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-12-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	12.8V
Nominal Capacity:	200ah
Dimensions:	525270220mm
Package:	ABS Case
Weight:	35kg
Life Cycles:	2000times
Life Cycle Times At 1c Charge&Discharge:	4000
Warranty:	24-Month
Max. Charge Voltage:	14.6V
Max. Discharge Voltage:	10V
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Electrolyte:	LiFePO4

Product Description

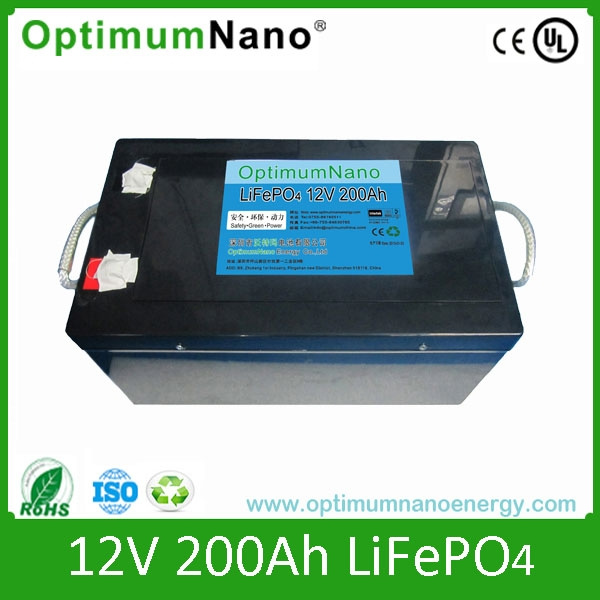

Lithium battery 200Ah 12V rechargable battery pack

12V 200Ah battery basic specifications:

Rated capacity	200Ah
Rated voltage	12.8V
max. charge current	14.7V
max.discharge current	10V
continuous charge current	100A
continuous discharge current	100A
peak discharge current(10S)	200A
dimensions	525270220mm
weight	35KG
battery technology	lithium iron phosphate
Depth of Discharge	100%
self discharge	≤2%

charging temperature	0-45ºC
working temperature	-20-65ºC
individual cell	cylindrical 32650 (3.2V 5Ah)
package	ABS case

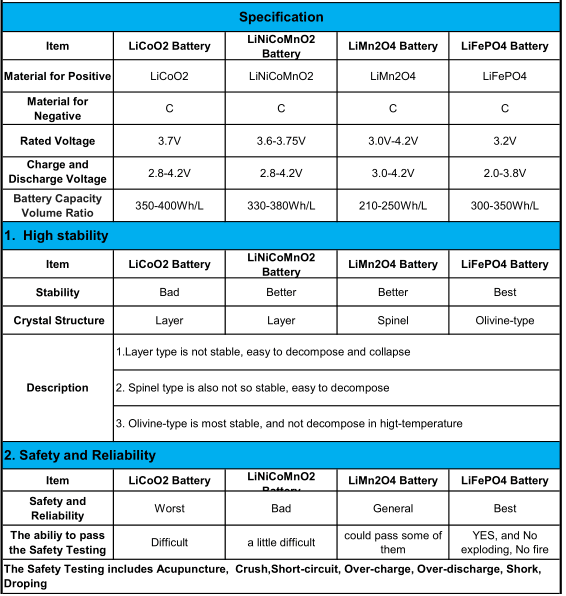

Lithium iron phosphate battery technology:

Lihitum iron phosphate battery technology is one of the most reliable, safe and long lasting lithium battery technology currently available.

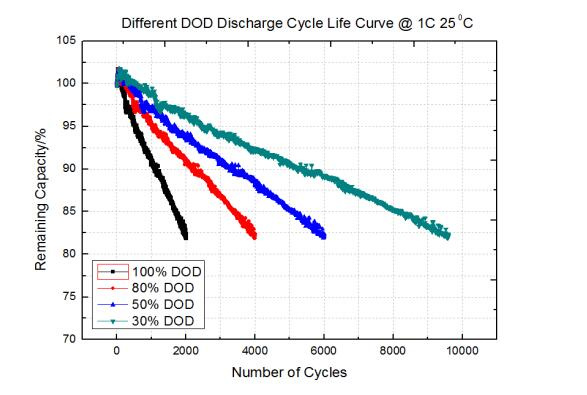

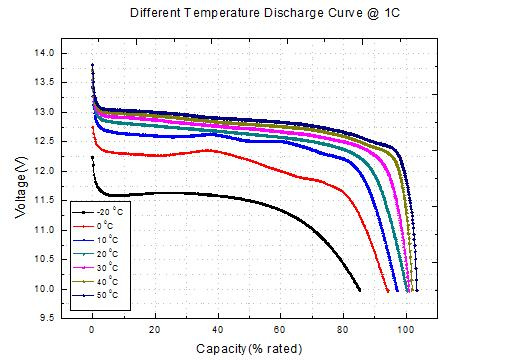

12V LiFePO4 battery pack characteristics curve:

3-protection design of 32650 individual cells: ensure battery safety:
  1. Break protection: When the internal pressure in individual cells reach its limits, the Gas Release Vent will turn around, the positive and negative welded plate shall break apart, the circuit inside shut down;
  2. Anti-explosion: if air inside the cells or liquid injection is too much, or over charge, over discharge, then the pressure could reach its limits, the Gas Release Vent shall be cracked, through which air inside can be quickly exhasted and then explosion can be avoided;
  3. PTC protection: PTC is a heat senstive device, which can be used to protect the battery pack from over current, high temperature. When it is at the state of over current or over temperature, resistance of
PTC shall be rasied to stop the whole circuit.

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
