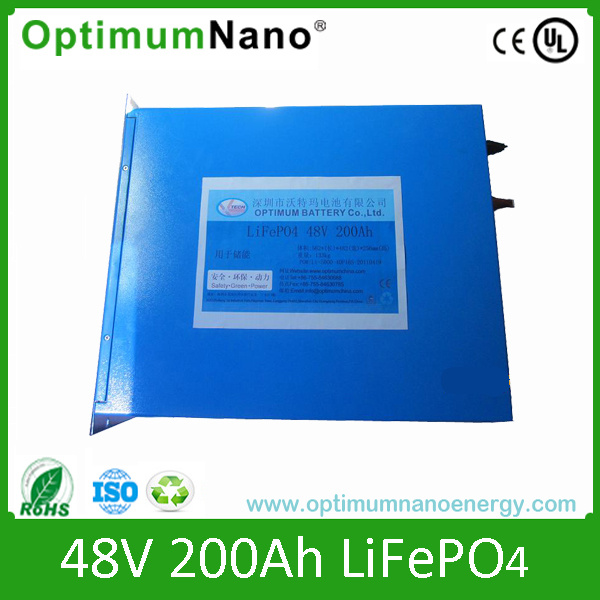

Lithium Battery 48V 200ah with PCM

Name: Lithium Battery 48V 200ah with PCM
Brand: all-electronics-online.com
SKU: 715037395
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 1-10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT48100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated:	48V
Application:	UPS, E-Boat/Ship, Ess, Solar System, PV
Certificates:	CE&UL, RoHS, Ts16949, ISO9001-2008
Cycle Times:	2000
Delievery Detail:	15--20 Days
Energy / Weight:	120wh/Kg
Energy / Volume:	310wh / L
Shippment:	TNT,UPS,DHL,FedEx,by Sea,by Air
Safety Performance:	Cc-CV Wise Charging Method with B
Components:	ATP / Optimum Li-ion 32650 5000mAh
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	200ah
Standard Voltage:	48V
Usage:	Electric Tool/Lawn Mower/ Electric Drill
Electrolyte:	LiFePO4

Product Description

48V 400AH LFP battery pack for solar powr PV system, forklift, UPS, communication base.

48V 400AH was made of 2 pks 24V 200AH in series.

One 24V 200AH size 595*405*370mm

Lithium battery pack advantages:

1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-CD or SLA.

2) Non-Toxic, environmentally-friendly product.

3) High safety

LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material

LiFePO4 cells do not incinerate or explode under extreme conditions

4) Good performance in high-current discharge cycles.

We can design different capacity and size batteries to meet your demand.

Why choose OPTIMUM LiFePO4 Battery?

1. Good quality, Safe and Reliable, Best Service.

2. Enjoyed in this field for more than 10 years.

3. TS16949 management system.

4. Maintain a long-term business relationship with France, the USA, UK,

Australia, Germany, India and Brazil with competitive price.

5. Product covers 3V---1000V, 3AH---1000AH, Any battery we can make!

Company reputation

Main Supplier of New Energy AutomobilesOiwer Batery for The Universiade Shenzhen 2011

The Leading Supplier of Litium Iron Phosphate Battery for New Energy Automobiles in China

Large-Scales Supply of LiFePO4 battery for Electric Bicycles and Other Light Vehicles.

Specification
NO.	Item		General Parameter			Remark
1	Model		IFR 32650
2	Case material		steel case for single cells
3	Standard capacity(0.2C)		100Ah
4	Minimum capacity (1C)		90Ah
5	Rated voltage		48V
6	Max.Charge voltage		54.75V
7	Cut-off voltage		37.5V
8	Standard charge current		20A			0.2C
9	Max charge current		200A			2C
10	Max discharge current		200A			2C(2mintues)
11	Pulse discharge current		400A			4C(10seconds)
12	Battery dimension		430320262 mm			Could be customerized
13	Weight(Approx,including case)		About65kg
14	I mpedance(Max, at 1000Hz.)		≤ 10mΩ
15	Charge method	Standard	CC	0.2C	3.65V cut off
	(CC/CV)	Standard	CV	3.65V	0.05C cut off
		Rapid	CC	1C	3.8V cut off
		Rapid	CV	3.65V	0.05C cut off
16	Operate temperature		Charge		0°C~45°C
			discharge		-20°C~60°C
			storage		-20°C~55°C

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
