| Prod Model: |
BBG-HX-LP10S4P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
LG 2200mAh |
| Configuration Of Cells: |
10s4p |
| Charger: |
42V 2A |
| Working Current: |
10-15A |
| Peak Current: |
20-30A |
| Application: |
36V 350-500W Motor |
| Controller Box: |
No |
| Cycle Life: |
800cycles |
| MOQ: |
20PCS |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
36V |
| Usage: |
E-Bike, E-Scooter |
| Electrolyte: |
Li-ion |
Product Description

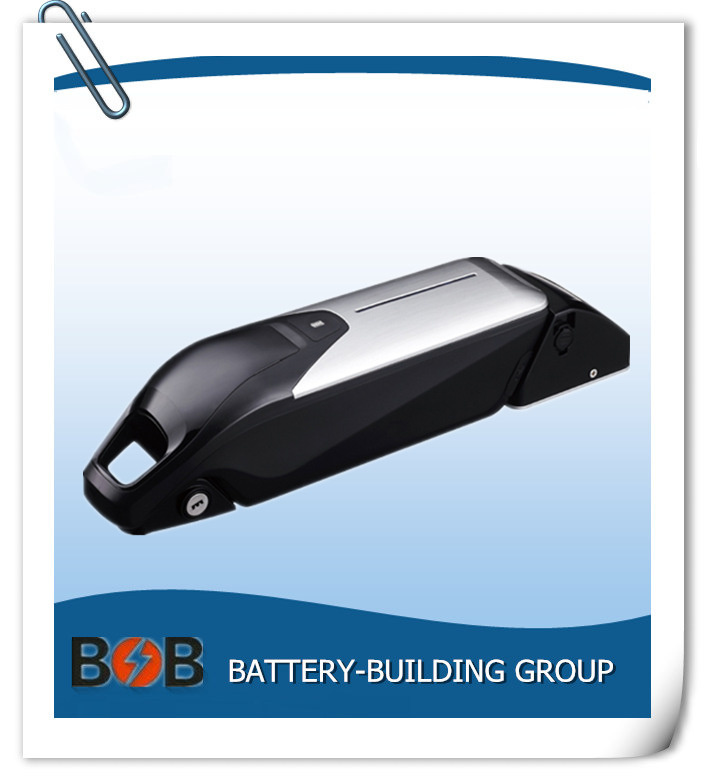

2016 newest 36V 11.6Ah lithium battery electric bike battery
Features
1. 36V 11.6Ah HXH model lithium-ion battery
2. 800 times cycles
3. Stable performance
4. No memery effect
5. High energy density
6. Designed with LG 2200mAh 10S4P
7. Battery comes with 5V output port
8. 5 levels indicator.
Details
| NO | Item | General Parameter | Remark |
| 1 | Model | BBG-HX-LP10S4P |
|
| 2 | Standard capacity(0.5C) | 8.8Ah |
|
| 3 | Rated voltage | 36V |
|
| 4 | Max. charge voltage | 42V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V |
|
| Over charge release voltage | 4.3±0.025V |
|
| 6 | Standard charge current | 2A | 0.2C |
| 7 | Charging time | About 5 hours | X C |
| 8 | Discharge cut-off voltage | 27.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V |
|
| Over discharge release voltage | 2.75±0.05V |
|
| 10 | Max. continuous discharge current | 10-25A(adjustable) | 1.5C |
| 11 | Peak discharge current | 30-65A | 4.5C |
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 337*92*93mm |
|
| 13 | Total weight(Approx.) | About 2.84kg |
|
| 14 | Operation temperature | Standard | 0ºC~45ºC |
|
| Discharge | -20ºC~65ºC |
|
| Storage | -20ºC~65ºC |
|
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
More models:
Model | Style | Material | Voltage | Capacity | Dimension | Weight | Charger |
| Include BMS and housing |
| (V) | (Ah) | L*W*K (mm) | (kg) | (A) |
| BBG-SF-LFP2408 | Silver fish | LiFePO4 | 24 | 8 | 75*110*378 | 4 | 2 |
| BBG-SF-LFP24081 | Silver fish | LiFePO4 | 24 | 8 | 89*89*401 | 4 | 2 |
| BBG-SF-LN2410 | Silver fish | LNCM | 24 | 10 | 89*89*401 | 3.5 | 2 |
| BBG-RR-LFP2408 | Rear rack | LiFePO4 | 24 | 8 | 70*150*245 | 4 | 2 |
| BBG-RR-LN2410 | Rear rack | LNCM | 24 | 10 | 70*150*246 | 3.5 | 2 |
| BBG-SF-LFP2410 | Silver fish | LiFePO4 | 24 | 10 | 75*110*378 | 4.2 | 2 |
| BBG-LF-LFP2410 | Frog | LiFePO4 | 24 | 10 | 80*150*180 | 4.2 | 2 |
| BBG-RR-LFP2410 | Rear rack | LiFePO4 | 24 | 10 | 70*150*245 | 4.2 | 2 |
| BBG-WB-LFP2410 | water bottle | LiFePO4 | 24 | 10 | 91*91*410 | 4.5 | 2 |
| BBG-SF-LFP2420 | Silver fish | LiFePO4 | 24 | 20 | 135.5*88.8*395 | 6 | 5 |
| BBG-SF-LFP3608 | Silver fish | LiFePO4 | 36 | 8 | 75*110*385 | 4.2 | 2 |
| BBG-RR-LFP3608 | Rear rack | LiFePO4 | 36 | 8 | 70*150*365 | 4.2 | 2 |
| BBG-LF-LFP3606 | Frog | LiFePO4 | 36 | 6 | 80*150*180 | 4 | 2 |
| BBG-SF-LFP3610 | Silver fish | LiFePO4 | 36 | 10 | 75*110*385 | 4.5 | 2 |
| BBG-RR-LFP3610 | Rear rack | LiFePO4 | 36 | 10 | 70*150*365 | 4.5 | 2 |
| BBG-WB-LN3610 | water bottle | LNCM | 36 | 10 | 91*91*435 | 4 | 2 |
| BBG-FB-LN3610 | Frog | LNCM | 36 | 10 | 80*150*180 | 4 | 2 |
| BBG-RR-LFP3612 | Rear rack | LiFePO4 | 36 | 12 | 69*150*480 | 4.5 | 2 |
| BBG-SF-LFP3612 | Silver fish | LNCM | 36 | 12 | 89*85*385 | 4.5 | 2 |
| BBG-RR-LN3614 | Rear rack | LiFePO4 | 36 | 14 | 68*148*385 | 5.5 | 3 |
| BBG--RR-LFP4810 | Rear rack | LiFePO4 | 48 | 10 | 68*150*480 | 7 | 2 |
| BBG-LFP4820 | Epoxy board & PVC packaged | LiFePO4 | 48 | 20 | 320*140*150 | 14.5 | 4 |
