| Prod Model: |
BBG-RR-3610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Structure: |
Icr18650 2000mAh 10s5p |
| Dimension: |
44*148*290mm |
| Continuous Discharge Current: |
15A |
| Peak Discharge Current: |
30-45A |
| Motor Available: |
350W |
| Additional Function: |
Taillight |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
E-Bike |
| Standard Voltage: |
36V |
| Electrolyte: |
Li-ion |
Product Description

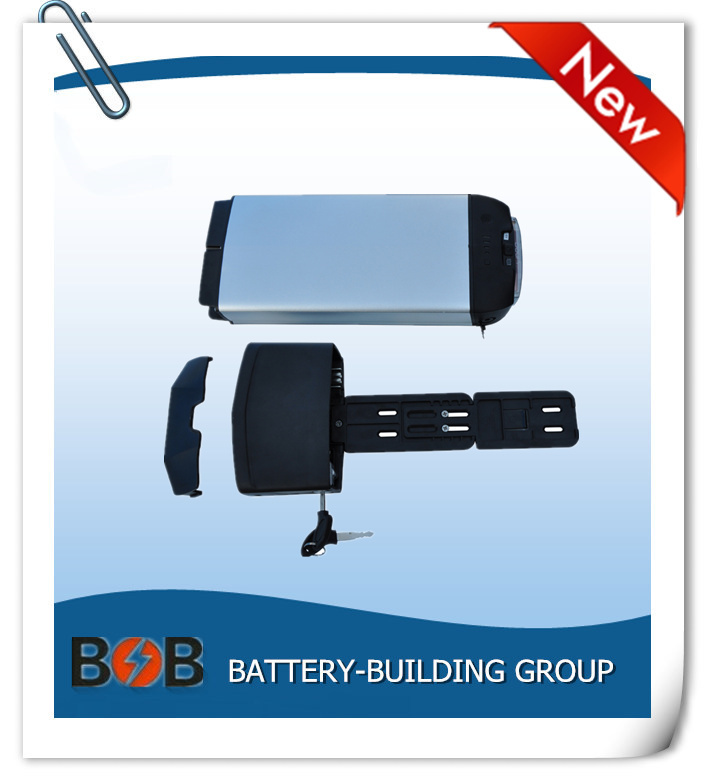

Lithium battery pack, 36V 10Ah battery
Features
1. 36v 10ah new arrival rear rack battery
2. fashion appearance
3. with taillight for lighting in night
4. 800 times cycle
Specification
| NO |
Item |
General Parameter |
Remark |
| 1 |
Model | SY36V10Ah |
|
| 2 | (0.5C)
Standard capacity(0.5C) | 10Ah |
|
| 3 |
Rated voltage | 36V |
|
| 4 |
Max. charge voltage | 42V | :4.20V
Single Ave. charge Voltage |
| 5 |
Over charge protection
|
| 4.25V | Over charge detection voltage |
|
|
| 4.15V | Over charge release voltage |
| 6 |
Standard charge current | 2-5A |
|
| 7 |
Charging time | About 2.5-7h |
|
| 8 |
Discharge cut-off voltage | 30V | :2.9V
Single Ave. Discharge Voltage |
| 9 |
Over discharge Protection
|
| 2.9V | Over discharge detection voltage |
|
|
| 3.0V | Over discharge release voltage |
| 10 |
Max. continuous discharge current | 15A |
|
| 11 |
Peak discharge current | 30-45A |
|
| 12 |
Short circuit protection |
Detetion delay time | 25μs |
Release condition |
Cut-off load |
| 12 |
Battery dimension | 44*148*290mm |
|
| 13 | (Approx.)
Total weight(Approx.) | About 3.25kg |
|
14 |
Operation temperature |
Standard | 0ºC~45ºC |
|
|
|
Discharge | -20ºC~65ºC |
|
|
|
Storage | -20ºC~65ºC |
|
Battery modules
1. 50pcs ICR18650 2000mAh 10s5p
50pcs ICR18650 cells,5 parallel and 10 serial to make a battery module.
2 . Protective board
The protective board, provides protection against overcharge, and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function
3. Charge/discharge standards for cell
ICR18650 2000mAh.
Cell adopted: ICR18650 2000mAh.
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
