| Prod Model: |
BBG-RR-LN3610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike, E-Scooter |
| Color: |
White, Black |
| Material: |
Li-ion |
| Case Material: |
Plastic |
| Structure: |
Icr18650 2200mAh 10s5p |
| Charger: |
2A Aluminum Case Charger |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Li-ion |
| Standard Voltage: |
36V |
| Usage: |
E-Bike, Escooter |
Product Description

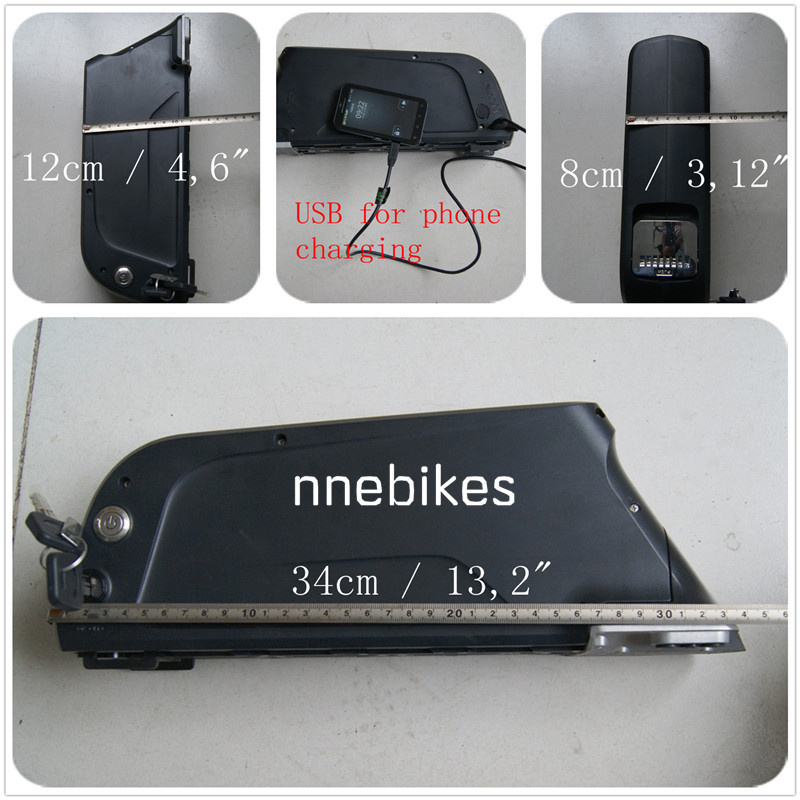

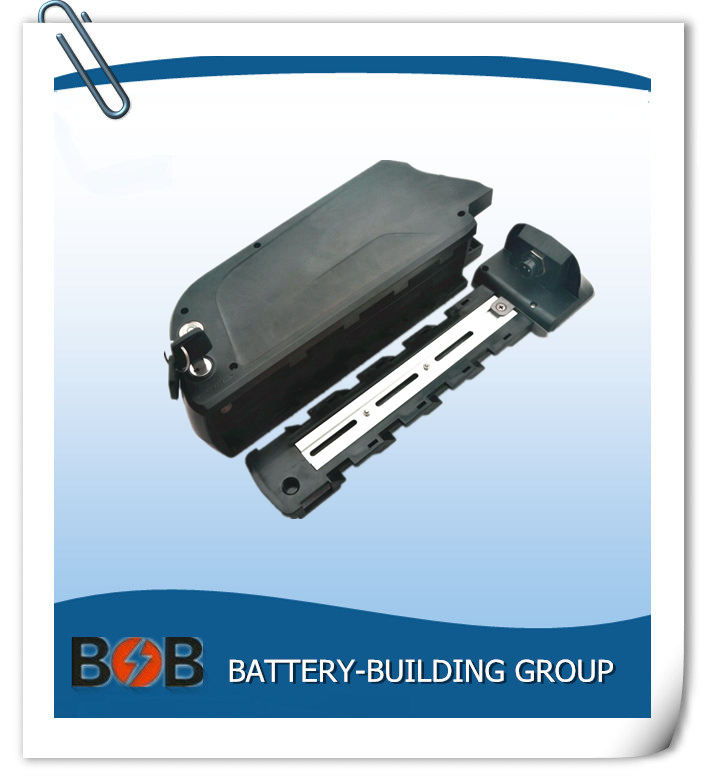

Lithium battery pack 36V 10Ah with USB port
Specification
36V10Ah Battery Pack(3.7V 18650-2200mah 10S5P)
15A continuous discharge current smart BMS
36V 2Amps Lithium Ion battery chargerGood performance
Fast delivery
Low self-discharge
Instruction of the Battery Pack Structure
(1)Battery modules
50 cells, 5 parallel and 10 serial to make a battery module.
(2)Protective board
The protective board, provides protection against overcharge, and short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function.
(3)Charge/discharge standards for cell
Cell adopted: ICR3.7V2200mAh
Constant charge current: 0.2 C5A -1 C3A is the best. cell max voltage<4.3V.
Constant discharge current: single cell min voltage> 2.75V
Rapid charge capability: Max. charge current1C3A;temperature increase falls within 15°C is normal while over 15°C will affect the cycle life of cell.
Storage and Transportation
(1)Based on the characters of cells, proper environment for transportation of battery pack need to be created to protect the battery.
(2)During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
(3)Battery should be kept at -20ºC~45ºC in warehouse where it is dry, clean and well-ventilated.
(4)During loading of battery, attention must be paid against dropping, turning over and serious stacking.
Warnings and Tips
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing measure as following:
Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
-Never upside down the positive and negative.
-Never connect the positive and negative of battery with metal.
-Never ship or store the battery together with metal
-Never knock, throw or trample the battery.
-Never cut through the battery with nail or other edge tool.
Notices
Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life. The proposed temperature for long-term storage is 10-45ºC.
We also supply batteries types such as bottle battery, silver battery, frog battery, rear rack battery, 24/36/48 normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.

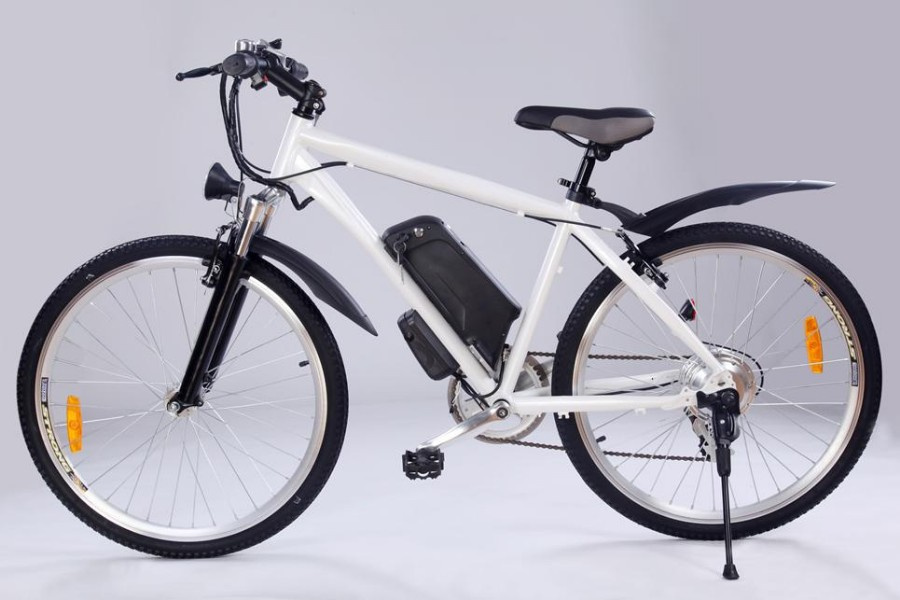

Key ApplicationWidely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or reparing.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.2.Good quality, competitive price, fast delivery, excellent service. 3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the qulity. 4.CE, RoHS, UN38.3, UL, MSDS certificates.5.Quick action&response,every inquiry will be replied within 24 hours on Monday to Friday. | NO | Item | General Parameter | Remark |
| 1 | Model | BB-EB36V |
|
| 2 | Standard capacity(0.5C) | 11Ah |
|
| 3 | Rated voltage | 36V |
|
| 4 | Max. charge voltage | 42.0V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V |
|
| Over charge release voltage | 4.3±0.025V |
|
| 6 | Standard charge current | 2A | 0.2C |
| 7 | Charging time | About 300 minutes | X C |
| 8 | Discharge cut-off voltage | 27.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V |
|
| Over discharge release voltage | 2.75±0.05V |
|
| 10 | Max. continuous discharge current | 15A(adjustable) | 1.5C |
| 11 | Peak discharge current | 45A(adjustable) | 4.5C |
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 120*80*340mm |
|
| 13 | Total weight(Approx.) | About 3.5kg |
|
| 14 | Operation temperature | Standard | 0~45 |
|
| Discharge | -20~65 |
|
| Storage | -20~65 |
|
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
