lithium Battery Single Cell 18650

Name: lithium Battery Single Cell 18650
Brand: all-electronics-online.com
SKU: 800246325
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 1.3-1.6/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Electric Mobility
Electrolyte:	Electrolyte

Product Description

Product Description

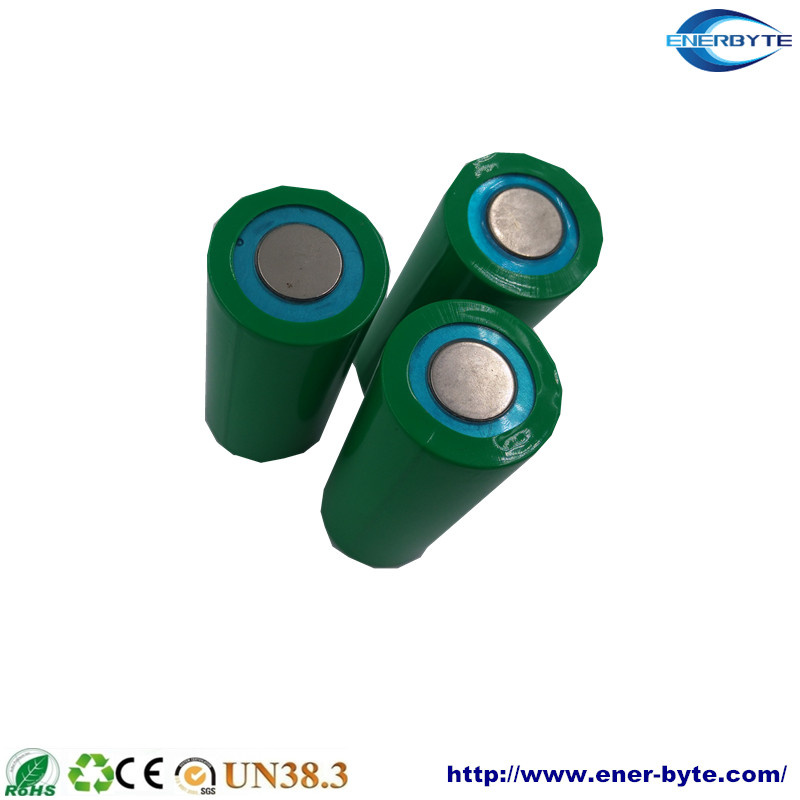

Lifepo4 battery single cell 18650

Optimum LiFePO4 battery Features:

A. Safety
The chemical structure of LiFePO4 is very stable

B. Long life cycles
2000 times cycle life at 80%DOD

C. High energy density
Weight: 1/3 of lead acid, 2/3 of Ni-MH
Volume: 2/3 of lead acid

D. Wide range Temperature Adaptability
Working temperature range: -20° C--60° C

E. No memory effects and highly efficient charge
It can be recharged anytime, no reduction of the capacity

F. Low self-discharge
Self-discharge<3%(month), while the monthly self-discharge of sealed lead acid battery is 10%.

G. Environment friendly
Enerbyte LiFePO4 battery has great efficiency for energy conservation and emission reduction, without any hazardous and noxious substances

Optimum LiFePO4 battery Application
1. Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc; Intellectual Robots; Power tools: Electric drills, toys;

2. Energy Storage
Solar-Wind Power System; City Grid (On/Off); Community and Family

3. Back-up System and UPS
Telecom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment

4. Other Applications
Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light

Certification:

CE, UN38.3, RoHS, IEC 62133, MSDS

Specification

Normal performance
No	Item	General Parameter
1	Battery Pack	3.2V 1.1Ah
2	Standard Capacity	1.1Ah
3	Rated Voltage	3.2V
4	Max.Charge Voltage	3.65V
5	Cut-off Voltage	2.5V
6	Standard Charge Current	2A
7	Max charge current	3C
8	Standard Charging Time	5h
9	Cycle life(1C/80%)	2000
10	Dimensions	customized
11	Total Weight(Approx.)	About 0.05 kg
12	Impedance(Max, at 1000Hz.)	≤20mΩ

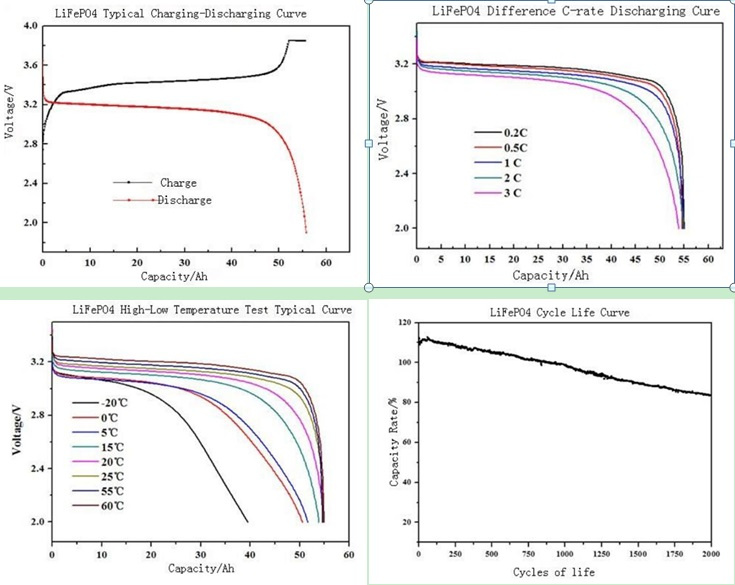

Test Reports:

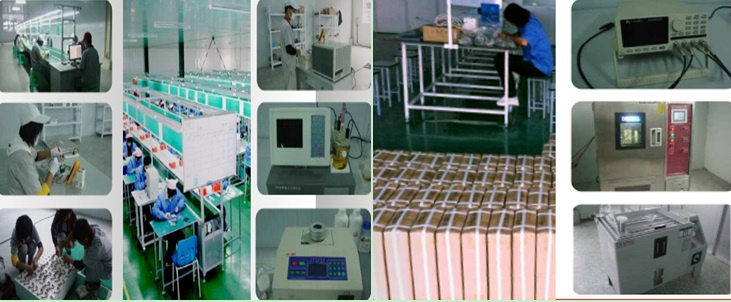

Our factory:

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
