| Prod Model: |
LP0037-3400-L |
| Voltage: |
3.7V |
| Capacity: |
3400mAh |
| Battery Type: |
18650 Battery |
| Packae: |
Antistatic Bag and Standard Export Cart |
| Warranty: |
One Year |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Accessories Type: |
DC Male Connector |
Product Description

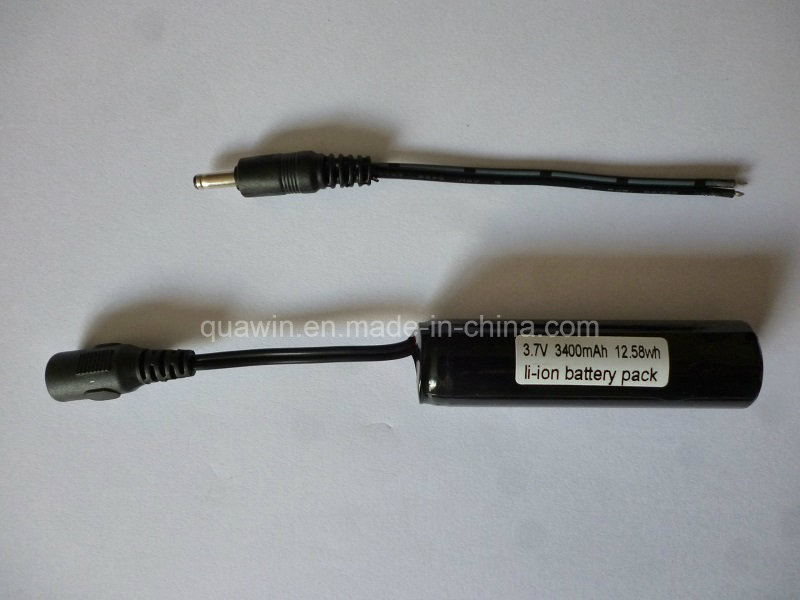

Lithium Ion Battery 18650 High Capacity 2200mAh to 3400mAh cylinder battery
Quick Detail:
Brand Name:QUAWIN/OEM
Product number:LP0037-3400-L
Type:Li-Ion,Li-ion battery,Lithium battery
Place of Origin:Guangdong China (Mainland)
Nominal Voltage:3.7V
Nominal Capacity:3400mah
Cell: Samsung 3400mAh Battery
Pack:Blue PVC Shrink tube
Size:19(T) x 19(W) x 68(H)mm
Weight:50g
Composed Type:1S1P
Delivery time:5-7days
Cycle life:500 times
Warranty:12 months
Packing:Antistatic bag /white box and standard export carton/customized
Packaging & Delivery:
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Cartoon box with less than 10KGS
. Delivery Detail:sample within 3 work days, 7~15 days for bulk order
Specifications:
| Product Name: | 3.7V 3400mah Li-ion battery pack |
| Product number: | LP0037-3400-L |
| Model NO.: | 18650R-1S1P (3400mah) |
| Voltage: | 3.7V |
| Capacity: | 3400mah |
| Maximalcharging current: | 2A(Adjust) |
| constant discharge current: | ≤2A(small current discharge,Adjust) |
| peak discharge current: | ≤5A(Adjust) |
| Life of battery: | About 500 times cycle |
| Charging temperature(ºC): | 0ºC~45ºC;32oF~113oF |
| Discharging temperature(ºC): | -20ºC~60ºC;-4oF~149oF |
| Storage temperature(ºC): | -20ºC~45ºC;-4oF~113oF |
| Dimensions(mm): | 19(T) x 19(W) x 68(H)
(as per customers'requirements) |
| Weight(Kg) | About 50g |
| Over charger protection voltage(V): | 4.2V±0.05V |
| Over discharge protection voltage(V): | 3.0V±0.25V |
| Protection Temperature(ºC): | 70ºC±5ºC |
| Warranty: | 12 month (free) |
| Requirements: | With label, plug,connector, OEM accept. |
| Specification: | High capacity, high discharge long work,life long,save and environmental protection. |
| Application: Wifi device,communication device,medical equipment,instrument,led lamps, transportation sign,portable family appliance, electronical tools and toys etc. |
| |
| The Suitable Charger Model NO.: | QW037-005-L |
| charger input: | 100V~240VAC 50-60Hz |
| charging mode: | constant voltage constant current (CC/CV) |
| charging voltage: | 4.2V±0.2V |
| charging current: | 0.5A±0.1A |
| charging time: | 6-7 hrs(standard) |
| charger working instruction: | Be in charging the red light,be full of charging the green light; |
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150C thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1).Provide both single cells and battery packs
2).100% inspection before delivery
3).Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
5).tablished quality control systems under ISO9001
6).stomized packs, tags,labels,plugs,connectors,over current protection,
temperature cont8.l protection are available
Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway
