| Prod Model: |
GNjavascript: void(0) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Copper Foil |
| Types: |
Double-Shiny, Double-Matte, One Side Shiny |
| Support: |
Technology Export |
| Offer: |
One Stop Service of All Lithium Battery Relevant |
| Thickness: |
8-20micron |
| Width: |
as Your Request |
| Material: |
Aluminum Covered Copper Foil Layer |
| Type: |
Lithium Battery Materials |
| Brand: |
Gelon |
Product Description

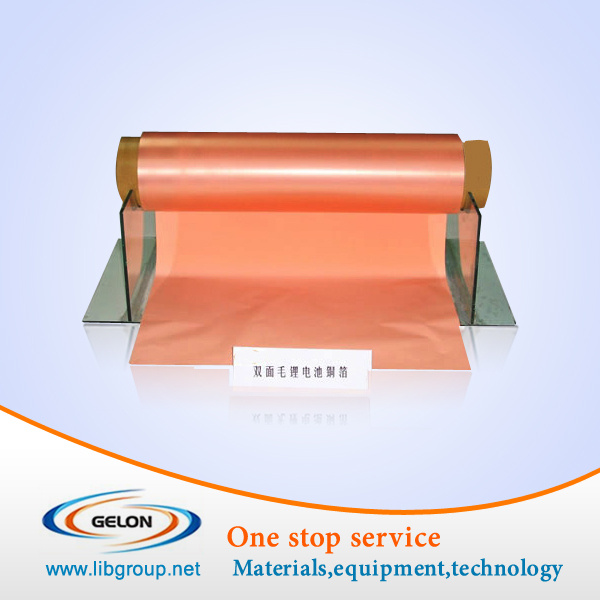

>>>lithium ion battery copper foil(copper foil)
1, 3 types: Double-shiny, double-matte, one side shiny
2, Thickness: 8-20micron
3, MOQ: 20KG
>>>We can supply(copper foil):
1. We also could supply all materials and full set of equipment for Li-ion battery.
2. We are the first and earliest exporter for Li-ion battery materials. Our original Alibaba company name is Linyi Gelon New Battery Materials Co., Ltd. Which has 5years memberships as the best gold supplier.
>>>Besides, We also can supply others(copper foil):
1)full set of lithium battery materials,
Including: LiFePO4, LiMn2O4, LiCoO2, LTO, Graphite(MCMB), Copper foil, Aluminium foil, etc;
2)full set of lithium battery equipments,
Including: Mixing machine, coating machine, slitting machine, winding machine, sealing machine, oven, formation and grading machine, etc;
3)full set of lithium battery technology
To help customer establish a laboratory or mass production.
>>>Li ion battery production line(copper foil):
--In 2013, our Bolivia Project for EV batery production line has completed successfully.
--We Gelon LIB Group offer one-stop service for Bolovia from establishing the battery making factory, supply li ion battery materials and equipment, technology support...Until produce the EV battery and gain the final successful.
--Bolivia president and goverment gave a full support and confirm.
--And our next project for Indonisia will start this year.
>>>More information about our battery products you can visit our website(copper foil):
Turn-key Project of Li Battery (Lab, Mobile, EV) Production Line
Video Link:
http://v.youku.com/v_show/id_XNjg5ODczMTg0.html
In Feb. 2014, the turn-key project in Bolivia was completed successfully.
Bolivia News Videos:
http://v.youku.com/v_show/id_XNjg4MTgwOTIw.html
Project Opening:
http://v.youku.com/v_show/id_XNjg5Mzg3NjUy.html
http://v.youku.com/v_show/id_XNjg5OTE5OTMy.html
Coating Process:
http://v.youku.com/v_show/id_XNjg5ODc3OTI4.html
Calendaring/Pressing Process:
http://v.youku.com/v_show/id_XNjg5NTE0NTU2.html
Cutting/Slitting Process:
http://v.youku.com/v_show/id_XNjg5ODIzMjYw.html
http://v.youku.com/v_show/id_XNjg5ODU4MDcy.html
Battery Tab Welding Process:
http://v.youku.com/v_show/id_XNjg5ODMyMDc2.html
http://v.youku.com/v_show/id_XNjg5ODc1NTM2.html
http://v.youku.com/v_show/id_XNjkwNDA2MjI4.html
Winding Process (Manual/Semi-Auto):
http://v.youku.com/v_show/id_XNjg5ODc5ODEy.html
http://v.youku.com/v_show/id_XNjg5ODUyMjI0.html
Electrolyte Filling:
http://v.youku.com/v_show/id_XNjg4MDY4OTQ4.html
Standing after Filling Electrolyte:
http://v.youku.com/v_show/id_XNjg4MDc0Nzgw.html
Vacuum Sealing
http://v.youku.com/v_show/id_XNjg4MDgxMzgw.html
Al-plastic Film Cup Punching/Forming:
http://v.youku.com/v_show/id_XNjg0NjEyNzYw.html
Pouch Press & Test:
http://v.youku.com/v_show/id_XNjg5ODM0OTA0.html
http://v.youku.com/v_show/id_XNjg5ODI1ODA4.html
Batteries Welding/Packing:
http://v.youku.com/v_show/id_XNjg5ODQ1MDUy.html
>>>Contact information(copper foil):
| Item | both sides shiny | One side coarse | both side coarse |
| 8µm | 9µm | 12µm | 15µm | 20µm | 10µm | 12µm | 10µm | 12µm |
| appearance quality | 1 ) no oxidation
2 ) smooth and no concave-convex |
| surface density ( g/ m 2 ) | | 85-90 | 100-105 | 128-133 | 175-181 | 95-100 | 105-110 | 95-100 | 105-110 |
| tensile strength ( Kg/ mm 2 ) (25 °C ) | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 |
| extensibility ( % ) (25 °C ) | ≥ 5 | ≥ 5 | ≥ 5 | ≥ 6 | ≥ 8 | ≥ 2.5 | ≥ 2.5 | ≥ 3.0 | ≥ 3.0 |
| roughness Rz ( µm ) | ≤ 3.0 | consulted by supplier and acquirer |
| thickness tolerance | ( -0,+3 ) |
| width tolerance | ±1 |
| tolerance from oxidation susceptibility | 160 °C /10min.no oxidation |
| joint | 1pcs/roll |
| purity | Cu ≥ 99.8% |
| Rohs requirement | pass |
| quality guarantee period | 90day from shipping |
| roll weight | consulted by supplier and acquirer |
| storage requirement | 1 , temperature : 25 °C, humidity :≤ 60%RH ;
2 , there are no corrosive gas and material , moist material. |
Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.
Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.
Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.
We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.
Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
