| Prod Model: |
LIFEPO4 - 3.2V - 20AH |
| Product Name: |
Lithium Iron Phosphate 3.2V 20ah LiFePO4 Battery |
| Voltage: |
3.2V |
| Capacity: |
20ah |
| Weight: |
700g |
| Application: |
Solar Products / LED Products / Power Storage |
| Warranty: |
3-5 Years |
| Cycle Life: |
More Than 2000 Cycles |
| Samples: |
Available |
| OEM / ODM: |
Welcome |
| Quality: |
High-End |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Solar Products / LED Products / Power Storage |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.2V |
Product Description

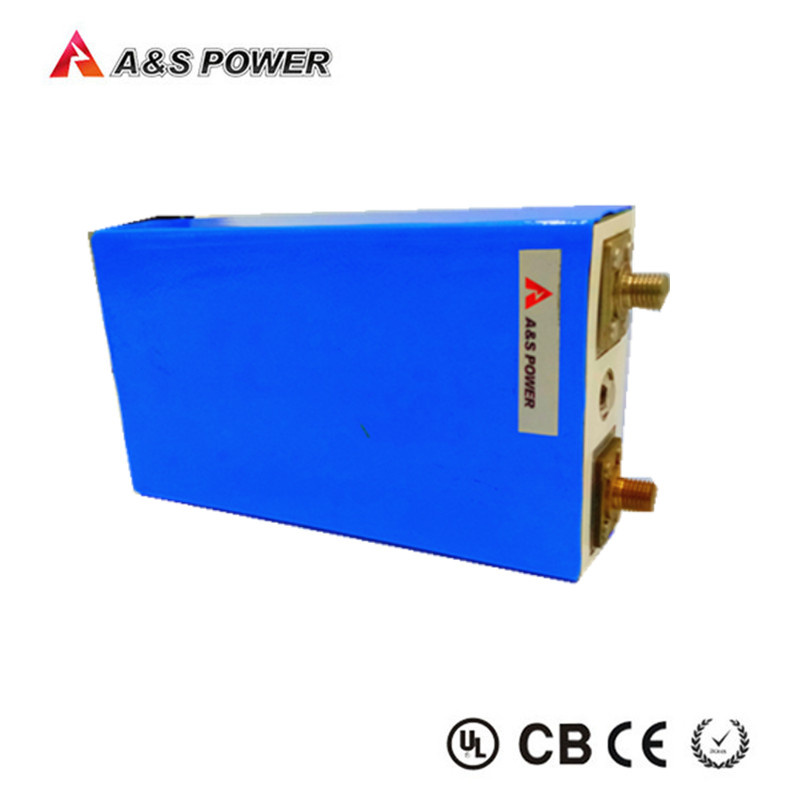

Product Description for Lithium Iron Phosphate 3.2V 20Ah LFP LiFePO4 Battery Cell Solar
| No. | Item | unit | Parameters | Remark |
| 1 | Nominal Capacity | Ah | 20.0 | Capacity according to standard discharge, After standard charge |
| 2 | Nominal Voltage | V | 3.2 | Average Voltage according to standard discharge, After standard charge |
| 3 | Charge Type | / | CC/CV | / |
| 4 | Charge Cut-off Voltage | V | 3.65 | / |
| 5 | Discharge Cut-off Voltage | V | 2.0 | / |
| 6 | Continuous discharge current | A | 400 | constant current |
| 7 | Max Discharge current | A | 600 | 10s |
| | Max charge current | A | 100 | |
| 9 | Weight | g | 700±35g | |
| 10 | Inner Resistance | mΩ | <3 | / |
| 11 | Dimension(T×W×H) | | 27.5×70×185mm | |
| 12 | Working Temperature | Charging | °C | 0~45 | / |
| Discharging | °C | -20~60 | / |
| 13 | Storage Temperature | 1 month | °C | -20~60 | / |
| 3 months | °C | -20~45 | / |
| 6 months | °C | -20~25 | / |
| Atmospheric pressure | KPa | 86~106 | / |
| Relative Humidity | RH | 25%~85% | /
|
| 3.2V 10AH 15AH 20AH 50AH 100AH 180AH 200AH LFP LiFePO4 Battery Cells |
| Model | Voltage / Capacity | Dimension | Weight | Type |
| 1868117 | 3.2V / 10Ah | 18*68*117mm | 0.3KG | LiFePO4 Battery Cell |
| 27070130 | 3.2V / 15Ah | 27*70*130mm | 0.48KG | LiFePO4 Battery Cell |
| 27070165 | 3.2V / 20Ah | 27*70*165mm | 0.6KG | LiFePO4 Battery Cell |
| 36115185 | 3.2V / 50Ah | 36*115*186mm | 1.5KG | LiFePO4 Battery Cell |
| 67142218 | 3.2V / 100Ah | 70*150*225mm | 3.2KG | LiFePO4 Battery Cell |
| 71182279 | 3.2V / 180Ah | 71*182*279mm | 5.6KG | LiFePO4 Battery Cell |
| 71182279 | 3.2V / 200Ah | 71*182*279mm | 5.8KG
|
Company Information
A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery, LiFePO4 battery and E-bike batteries.
Company Overview
- Established : 2001
- Capital: 20,000,000.00 RMB
- Location: Dongguan,Shenzhen
- Employee: > 600
- Daily output: 100K Li-Poly, 50K LiFePO4, 80K Li-ion 18650
Company Profile
Low Risk Promise
1.For lithium polymer battery, we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
2.For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order
3.For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order
Our cooperative policy
1. Making the sample until you are satisfied with it.
3. Offering professional one-on-one service and replying your E-mail within three hours
4. Shipment sample for checking before shipment.
5. Priority to get the our latest product information after our cooperation
Advantage
1. Environmental friendly
2. High density of energy
3. Light weight
4. Low self-discharge
5. Low internal resistance
6.Long cycle life, chargeable up to 2000 times
7. No memory effect
8.Doesn't contain Mercury, No fire, No explosion, No leakage
FAQ1. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: Honestly, it depends on your order quantity and the season you place the order. We suggested that you start inquiry to months before the date you would like to get the products at your country.
4. Q: What is your terms of payment?
A: We accept T/T and L/C.
Shenzhen A&S Power Technology Co., Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in LiFePO4 battery, lithium polymer battery and Li-ion Battery pack. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers, consumer products, emergency light, GPS, digital player, solar & wind energy storage, electronic auto and E-bus.
A&S Power has well presence in international fairs each year, such as CEBIT, HK Electronic Fair. We strictly implement the international management standards and have established a complete quality assurance system. So it's no wonder that our products got CE, UL, IEC62133, RoHS certification. We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia. As responsibility and experienced manufacturer, A&S Power is officially recognized by Philips, Mitel. We use "People oriented, Quality first, Keeping improving" as our mission statement, which makes us improve quality, reduce cost and enhance services constantly. We pay more attention to the market change, client needs, safety & environmental protection and take the responsibility of the society. A&S Power dedicates to creating the life stage of employees and supplying lithium batteries welcomed by customers in the world. With passion and faithfulness, we dedicated to establish win-win business and striding forward to create a bright future for your esteemed company.
