Lithium Iron Phosphate Battery Pack with Big Capacity 48V500ah
| Price: |
US $ 205/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
BT-48500X-6-U |
| Model: |
LiFePO4 Lithium Battery 48V500ah |
| Color: |
Black and Dark Grey |
| Warranty: |
3 Years |
| Design Life: |
20 Years |
| Delivery: |
15-20days |
| Market: |
Global |
| Float Voltage(V): |
54.0~55.0 |
| Overcharge Protection Voltage(V): |
57.6 (Can Be Set) |
| Over-Discharge Protection Voltage(V): |
43.2 (Can Be Set) |
| Over-Discharge Protection Current (a): |
110 |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
48V |
| Usage: |
Solar and Telecom System |
| Electrolyte: |
Organic Solvent + Lithium Salt + Additives |
Product Description
Lithium Iron Phosphate Battery Pack with Big Capacity 48V500AH
CSPOWER Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48v CharacteristicsCustomized Lithium Iron Phosphate (LiFePO4)Battery Pack, the longest life among battery field.
Voltage: 48V, 96V, 250V, 600V.
Capaicty: upto 600V200Ah, 250V20Ah, 48V2000Ah.
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
80%DOD, >3000 cycles Features for CSPOWER LiFePO4 Battery Pack Big Capacity 48VCSPOWER LiFePO4 battery is newest lithium iron battery adopts advanced technology, Own Longest Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Advantages for CSPOWER LiFePO4 Battery Pack Big Capacity 48VLighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20ºC~60ºC, no affect battery life and capacity.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to four batteries in series and up to ten battery in parallel.BMS of Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Big Capacity 48VOvercharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection
Sepcificaion of Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48V| MODEL | Voltage | Capacity | Dimension (mm) | | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Inner Space | (±3%) |
| BT-48200X-6-U | 48 | 200 | 600 | 600 | 1200 | 16U | 230 |
| BT-48500X-6-U | 48 | 500 | 600 | 600 | 1900 | 36U | 435 |
| BT-481000X-6-U | 48 | 1000 | 1200 | 600 | 1900 | 72U | 870 |
| BT-481500X-6-U | 48 | 1500 | 1800 | 600 | 1900 | 108U | 1300 |
| BT-482000X-6-U | 48 | 2000 | 2400 | 600 | 1900 | 144U | 1740 |
| BT-48200X-6-O | 48 | 200 | 600 | 600 | 1200 | 16U | 260 |
| BT-48500X-6-O | 48 | 500 | 600 | 600 | 1900 | 36U | 475 |
| BT-481000X-6-O | 48 | 1000 | 1200 | 600 | 1900 | 72U | 930 |
| BT-481500X-6-O | 48 | 1500 | 1800 | 600 | 1900 | 108U | 1380 |
| BT-482000X-6-O | 48 | 2000 | 2400 | 600 | 1900 | 144U | 1840 |
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment

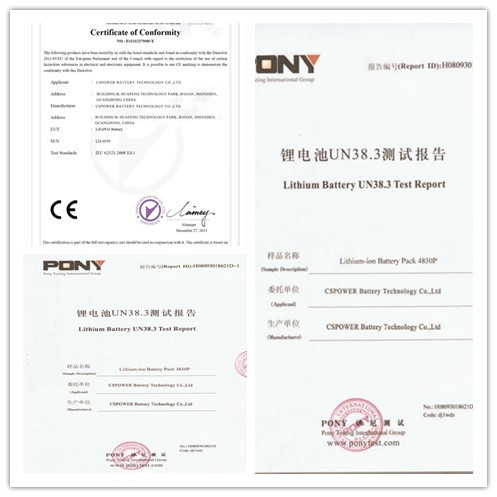

Lighting and so onRechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48V Certificates:CE, UN38,UN38.3

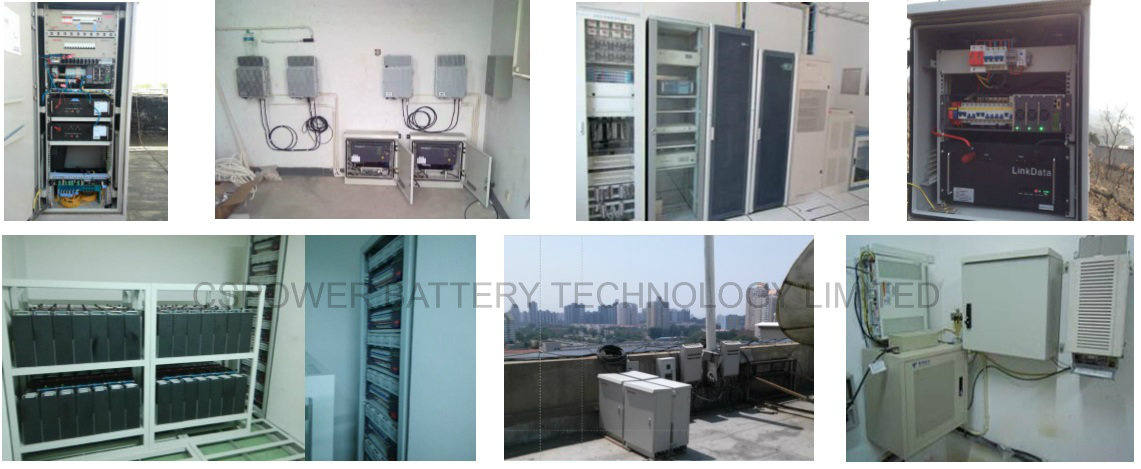

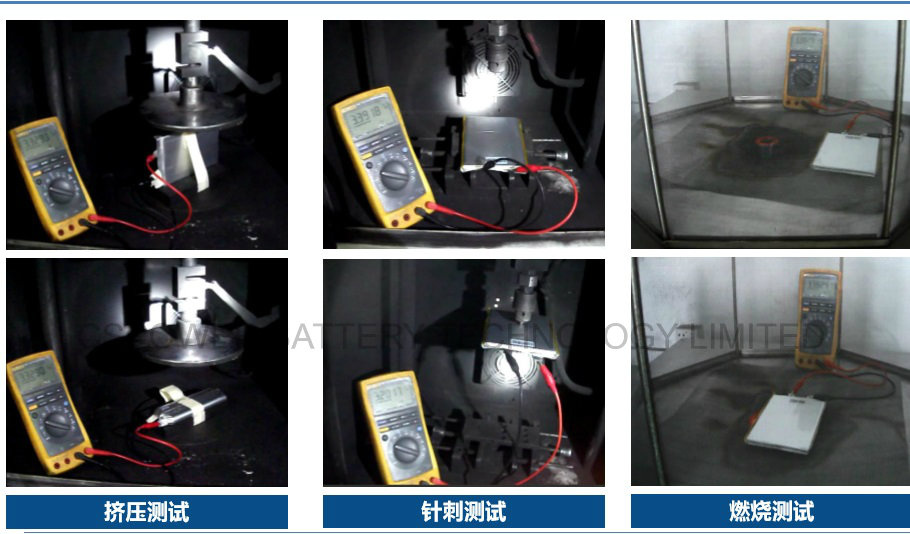

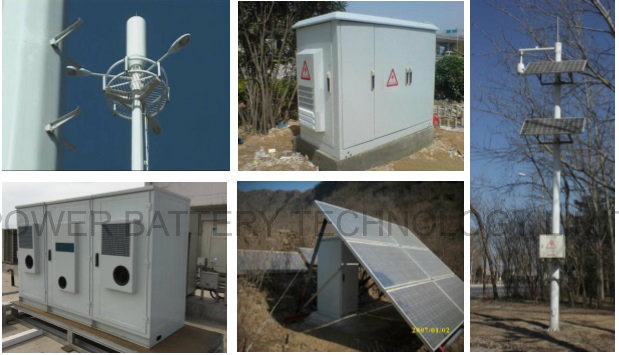

Factory Tests Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48VApplication picture of Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48V
CSPOWER Visitors --- Rechargeable Lithium Iron Phosphate Battery (LiFePO4) Pack Big Capacity 48V
www.csagmbattery.com Why Choose CSPOWER?1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO14001, products with CE/RoHS/TLC etc approval.3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.4) Competitive price help you to occupy more market share 5) 20000KWH production capacity to guarantee the best deliver time6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.CSPOWER BATTERY TAGS:- lithium-ion battery, LiFePO4 Battery; Lithium battery, rechargeable battery pack,19inch battery pack, Lithium Battery Pack,Lithium Iron Phosphate Battery, Lithium Battery Bank
- 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery,
- Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
- Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
