| Prod Model: |
TDFE-27135206 |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Electric Tool/Electric Power Tool |
Product Description
Product Description1.Optimum LiFePO4 battery Features:A. Safety
The chemical structure of LiFePO4 is very stable
B. Long life cycles
2000 times cycle life at 80%DOD
C. High energy density
Weight: 1/3 of lead acid, 2/3 of Ni-MH
Volume: 2/3 of lead acid
D. Wide range Temperature Adaptability
Working temperature range: -20° C--60° C
E. No memory effects and highly efficient charge
It can be recharged anytime, no reduction of the capacity
F. Low self-discharge
Self-discharge<3%(month), while the monthly self-discharge of sealed lead acid battery is 10%.
G. Environment friendly
Enerbyte LiFePO4 battery has great efficiency for energy conservation and emission reduction, without any hazardous and noxious substances

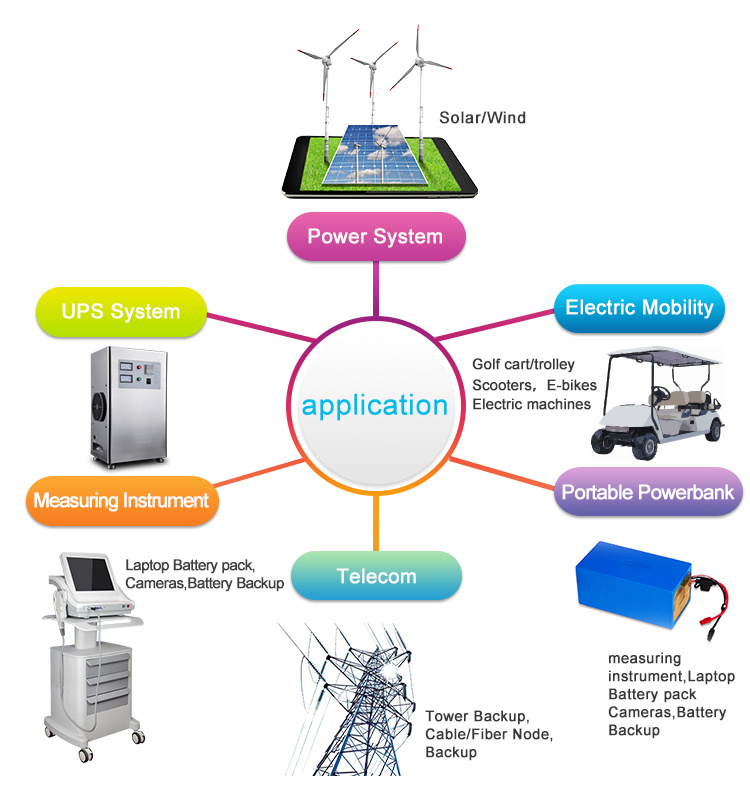

2. Optimum LiFePO4 battery Application
A. Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc; Intellectual Robots; Power tools: Electric drills, toys;
B. Energy Storage
Solar-Wind Power System; City Grid (On/Off); Community and Family
C. Back-up System and UPS
Telecom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment
D. Other Applications
Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light
CertificationCE, UN38.3, RoHS, IEC 62133, MSDS
Datesheet| No. | Item | unit | Parameters | Remark |
| 1 | Nominal Capacity | Ah | 60 | Capacity according to standard discharge after standard charging. |
| 2 | Nominal Voltage | V | 3.2 | Average Voltage according to standard discharge, After standard charge. |
| 3 | Charge Type | CC/CV | CC/CV | special chargers |
| 4 | Charge Cut-off Voltage | V | 3.85 | / |
| 5 | Discharge Cut-off Voltage | V | 2.5 | According to the parameters of the customers'
control |
| 6 | Nominal Charge current | A | 20 | CC |
| 7 | Normal working current | A | ≤60 | CC |
8
| Maximum discharge current | A | 120 | CC |
| 9 | Pulse Discharge Current | A | 300 | 10 Seconds |
9
| Cycle life | Times | 2000 | The cycle life can reach 2000 times with 80% DOD at 1C recommended charge and discharge under 25ºC temperature |
| 10 | Over current protection | Protective current | A | / | According to the parameters of the customers'
control |
| Delay | S | / | According to the parameters of the customers'
control |
| Unchained conditions | / | / | According to the parameters of the customers'
control |
| 11 | Short-circuit protection | Protective conditions | / | / | According to the parameters of the customers'
control |
| Delay | S | / | According to the parameters of the customers'
control |
| Unchained conditions | / | / | According to the parameters of the customers'
Control |
| 12 | Weight | g | 2040±20 | Net weight of the battery |
| 13 | Internal Resistance | mΩ | <1.5 | Unit cell,AC Inner Resistance |
| 14 | Dimension(L×W×H) | mm | 61*114*199 | |
| 15 | Working temperature | Charge | ºC | 0~45 | / |
| Discharge | ºC | -20~60 | / |
| 16 | Storage temperature | One month | ºC | -20~60 | / |
| Three months | ºC | -20~45 | / |
| One year | ºC | -20~25 | / |
| Atmospheric pressure | KPa | 86~106 | / |
| Relative humidity | RH | 25%~80% | / |

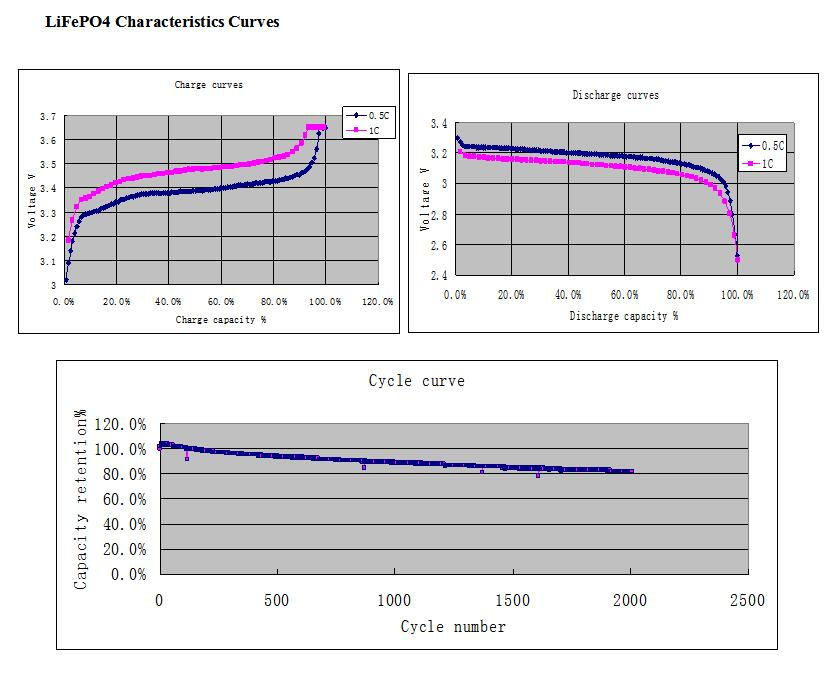

Curve
Tianjin Enerbyte Electronics Co., Ltd, is a professional lithium manufacture in China. We are a high-tech and new energy enterprise , developing, designing and producing Lithium battery cells and battery packs, including NMC and LiFePO4 battery .Enerbyte battery products cover lithium power batteries, energy storage batteries and consumer electronic batteries. Our products are widely applied in electric vehicles, power tools, medical equipment, solar/wind energy storage, backup battery bank, emergency and security equipment, Handel terminals, military equipment, communication systems and many other fields.We have more than 8 years of experience in exporting Lithium batteries, distributed to USA, Canada, Italy, United Kingdom, Germany, Australia, France, Thailand, South Korea and many other countries and regions.Enerbyte possesses strict quality control system, professional team and after-sales services, we have get following certificate: ISO:9001, CE, MSDS, ROHS, UN38.3 and all products are insured by CIPC.We also provide OEM services and welcome you to be our new partner!
Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.
It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.
Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.
We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.
Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.
We welcome overseas customers to come and visit our factory!
