| Prod Model: |
VL-C501-11/12 |
| Color: |
White/Black |
| Function: |
Touch Control |
| Operating Temperature: |
-30-70 Centigrade |
| Material: |
Tempered Glass Panel |
| Minimum Of Quantity: |
51 PCS |
| Packaging Detail: |
Carton Box |
| Principle: |
Capacitive |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Application: |
Corridor |
| Certification: |
CCC |
| Type: |
Touch Switch |
| Size: |
125 Type |
Product Description
| Product features: |
| 1-Sensitive touch control feeling like iPhone touch. |
| 2-Toughened glass, it's easy to clean. Non-discoloring, always look as new. |
| 3-Waterproof, it's available to operate touch witch any time. |
| 4-Fireproof, strengthen protection for the short circuit of power line. |

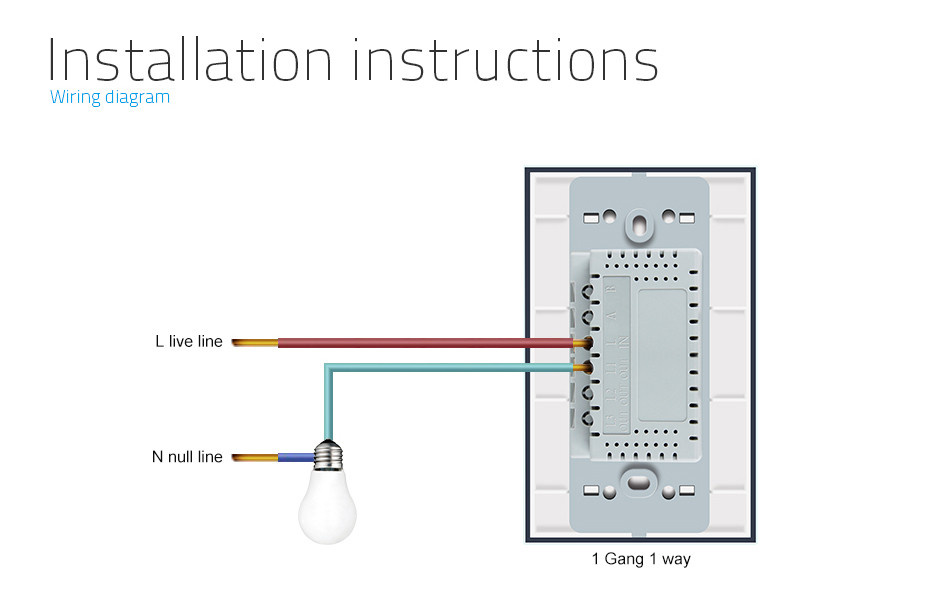

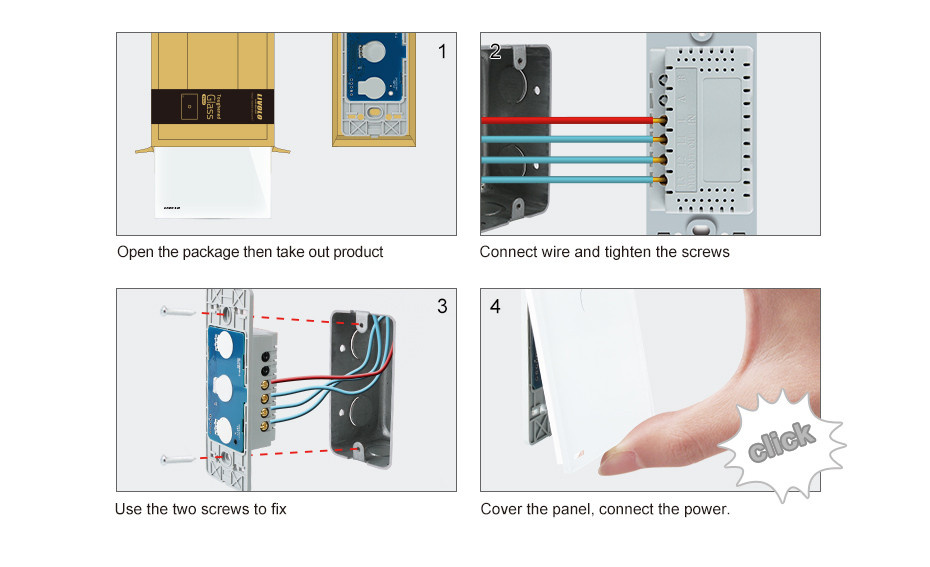

| 5-Single live wire control, easy to install, replace the old switch directly. |
| 6-Wireless RF remote control, make the operation more convenient, and our life easier. |

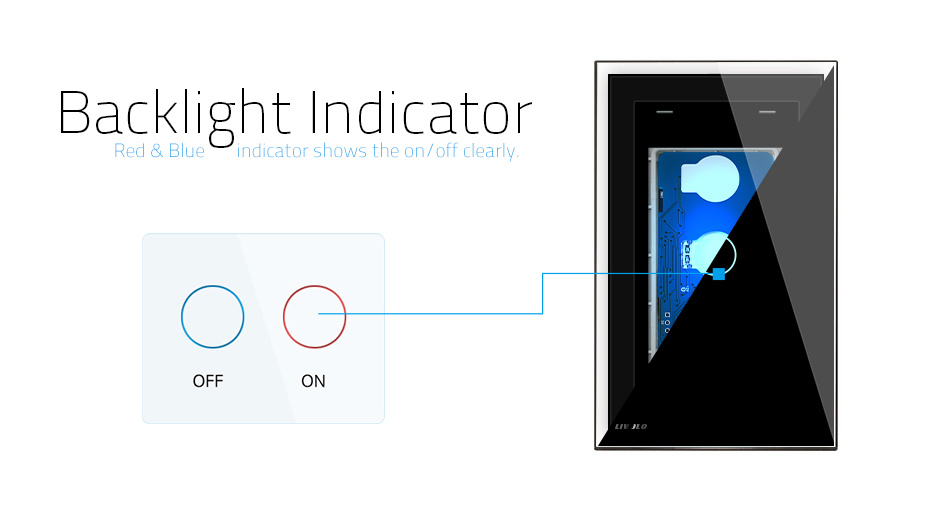

| 7-With red&blue LED indicator, distinguished in the darkness. Red is light on, blue is light off. |
| 8-LIVOLO has good reputation overseas. |
| 9- Applicable to common lamps, such as incandescent, fluorescent lamps, led lamps and so on. |
| Technical Parameters: |
| ·Product size: | 125mm*78mm*40mm |
| ·Shell Material | PC retardant material |
| ·Panel Material | Toughen glass |
| ·Operating Voltage | AC 110V~250V |
| ·Max Current | 5A / Dimmer switch: 2A |
| ·Rated Power | 3W-1000W/2000W / Dimmer switch: 5W-500W |
| ·Energy Consumption | <0.1mA |
| ·Operating Environment | 30~70 Centigrade, less than 95%RH |
| ·Certification | CE, ROSH |
| ·Longevity | 100,000 times operation/ Two years warranty |
| Note: The switch is not suitable for the inductive ballast fluorescent. |
1. When I turn on the switch does it have light?
Yes, all our touch switches have led indicators, turn on the switch - red indicators, turn off the switch - blue indicator.
2. Can I used it with energy-saving lamps or LED lamps?
Yes, our switches can work with energy-saving lamps and LED lamps as long as the wattage is more than 1W.
3. What kind of lamps can be fit with your dimmer switch?
Filament lamp and dimmable LED lamp; All bulbs works with mechanical dimmer, works with ours, Only the wattage should be 5-500W.
4. Can your switch work with home automation system?
It depends, if the system only needs a signal on/off, it can be. Otherwise, our switch is not suitable for home automation system because the codes are different.
5. Do you have an intermediate switch?
Yes, our 2 way switch also can be an intermediate switch, you can connect three 2 way switches together.
6. Which output from the switch-relay or triac?
For on/off touch switch-relay, dimmer switch - triac.
7. Can I install the switch vertically?
Sure, any pose.
Livolo International Electric Limited is an innovative and technological pioneering company in the electric field. Livolo owns a powerful industry chain which includes many excellent electrical manufacturers. Our main products include Touch wall switches, Remote control switches, Dimmer switches, Time delay switches and Timer Switches. We accept OEM and ODM orders.
The founders of Livolo understand the needs of homeowners. As veterans of home automation market, we recognize that better wireless standards and advent of Internet Protocol (IP) technology allow more existing homes to become candidates for home automation.
Livolo manufactures a complete line of affordable wired and wireless home automation products, making safety, convenience, comfort and economy available to virtually any homeowners in the world. Livolo wireless products can be installed in any homes within just a few hours, without the need for extensive or expensive remodeling. Not only can homeowners easily customize their smart system to meet their unique lifestyles, but also the modular nature of products also enables customers to add to their systems over time. Our products are capable of delivering a complete solution for homes because our items integrate the control of lighting, audio, video, landscape and climate into a single cohesive system.
As the demands for home automation continue to grow, Livolo plans to stay at the forefront of the industry by providing innovative products and solutions.
Curiosity and inventiveness have made our company great. Thanks to a continuous stream of functional developments, new materials and fresh ideas, the name of Livolo stands for consistently high performance and competence in lighting control and home automation. Because of international presence, our company is ideal not only for customers with a regional sales focus but also for global players.
