| Prod Model: |
Lm30-3010PC |
| Contact: |
No+Nc |
| Distance: |
10mm |
| Diameter: |
30mm |
| Outlook: |
Non-Flush |
| Control Output: |
300mA |
| Shell Material: |
Metal |
| Protection Grade: |
IP67 |
| Wires: |
PNP (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Sensor |
| Principle: |
Inductive |
| Application: |
Industrial |
Product Description

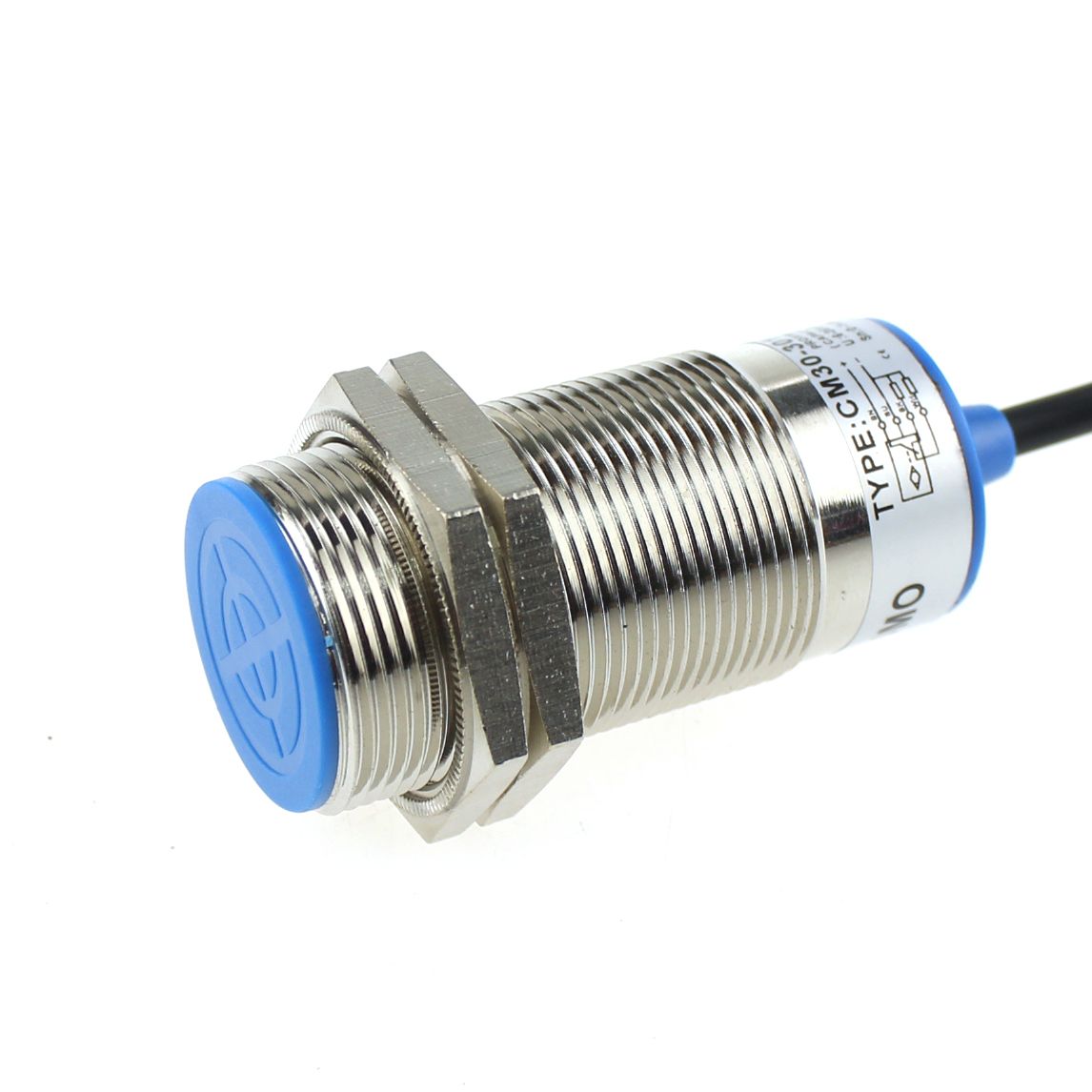

LM30-3010PC 10mm range inductive proximity sensor(PNP NO+NC)
| Outward appearance code | LM18 | LM22 | LM30 |
| Outward appearance illustration | | | |
| Flush | Detection distance | 5mm | 7mm | 10mm |
| DC 6~ 36 VDC | NPN | NO | LM18-3005NA | LM22-3007NA | LM30-3010NA |
| NC | LM18-3005NB | LM22-3007NB | LM30-3010NB |
| NO+NC | LM18-3005NC | LM22-3007NC | LM30-3010NC |
| PNP | NO | LM18-3005PA | LM22-3007PA | LM30-3010PA |
| NC | LM18-3005PB | LM22-3007PB | LM30-3010PB |
| NO+NC | LM18-3005PC | LM22-3007PC | LM30-3010PC |
| Two wire system | NO | LM18-3005LA | LM22-3007LA | LM30-3010LA |
| NC | LM18 -3005LB | LM22 -3007LB | LM30 -3010LB |
| AC 90~ 250 VAC | SCR Controllable silicon | NO | LM18 -2005A | LM22 -2007A | LM30 -2010A |
| NC | LM18-2005B | LM22-2007B | LM30-2010B |
| NO+NC | LM18 -2005C | LM22 -2007C | LM30 -2010C |
| Relay output | - | - | LM30-2010JC |
| Non-flush | Detection distance | 8mm | 10mm | 15mm |
| DC 6~ 36 VDC | NPN | NO | LM18-3008NA | LM22-3010NA | LM30-3015NA |
| NC | LM18-3008NB | LM22-3010NB | LM30-3015NB |
| NO+NC | LM18-3008NC | LM22-3010NC | LM30-3015NC |
| PNP | NO | LM18-3008PA | LM22-3010PA | LM30-3015PA |
| NC | LM18-3008PB | LM22-3010PB | LM30-3015PB |
| NO+NC | LM18-3008PC | LM22-3010PC | LM30-3015PC |
| Two wire system | NO | LM18-3008LA | LM22-3010LA | LM30-3015LA |
| NC | LM18 -3008LB | LM22 -3010LB | LM30 -3015LB |
| AC 90~ 250 VAC | SCR Controllable silicon | NO | LM18 -2008A | LM22 -2010A | LM30 -2015A |
| NC | LM18-2008B | LM22-2010B | LM30-2015B |
| NO+NC | LM18 -2008C | LM22 -2010C | LM30 -2015C |
| Relay output | - | - | LM30-2015JC |
| Control output | DC | 200mA | 200mA | 200mA |
| SCR/Relay | 300mA | 300mA/ 1A |
| Output voltage dropDC/AC | DC>3V , AC<10V |
| Consumption current | DC<15mA , AC<10mA |
| Standard detected object | 18×18×1(A3 iron) | 22×22×1(A3 iron) | 30×30×1(A3 iron) |
| Repeated precision | 0.02 | 0.05 | 0.05 |
| DC/AC Response frequency | 200Hz/25Hz | 200Hz/15Hz | 200Hz/15Hz |
| Working environment temperature | -25 °C ~ + 75 °C |
| Insulation resistance | 50MΩ | 50MΩ | 50MΩ |
| Shell material | Metal | Metal | Metal |
| Protection grade | IP67 |
| Altemative mode at home and abroad | LJ 18A 3-8- | LJ 22A - - | E2E-X 18M+B4:H43 |
